Invacare® LiNX
Compact Remote Module (CR)

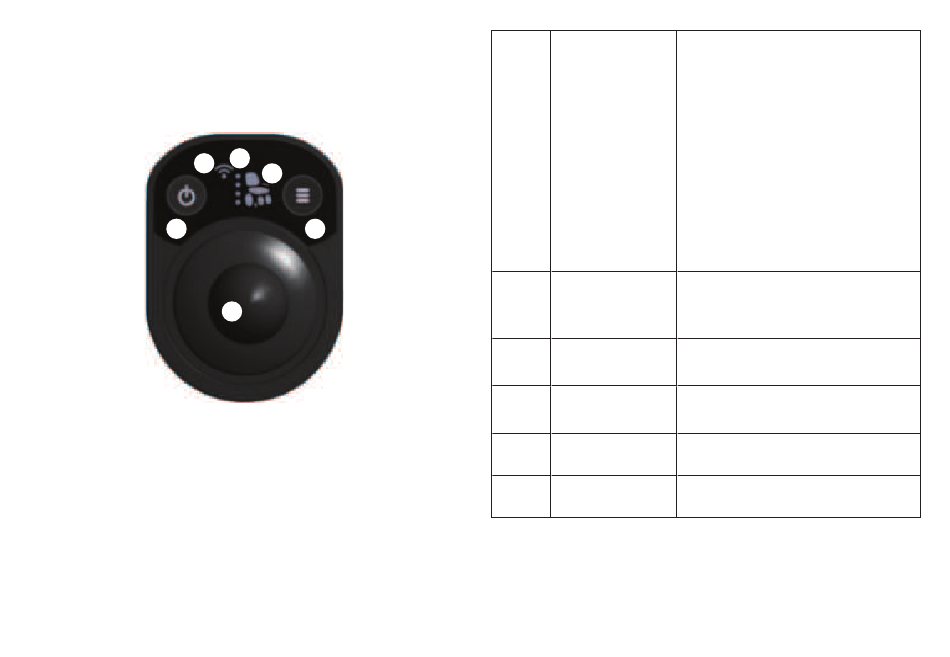

The remote is the input that operates the power wheelchair's
functions a nd defines the icon displayed.
This overview applies for DLX-CR400 and DLX-CR400LF with low force
joystick.
B
A
8
C
D
E
F
Power button
(with status
A LED),
EMERGENCY
STOP
Connectivity
B
indicator
Drive function
C
indicator
Seating function
D
indicator
E Mode button
F Joystick
power up or power down the
l
system, if remote is remote-
in-charge
view the system's status
l
view fault indications (flash
l
codes)
request to be remote-in-
l
charge
lock the system
l
emergency stop power
l
wheelchair, if no restriction
has been s et
indicate that connectivity
l
function is enabled and active
(CR)
indicates selected Attendant
l
drive function
indicates the selected seating
l
function
select function within
l
attendant profile
control speed and direction of
l
drive and seating function
