Instructions - Parts List
CleanLine Filter
For petroleum-based oils, synthetic oils and anti-freeze* mixtures.
*CleanLine 1800 filters must be used for anti-freeze mixtures,
CleanLine 900 filters are not compatible with anti-freeze.

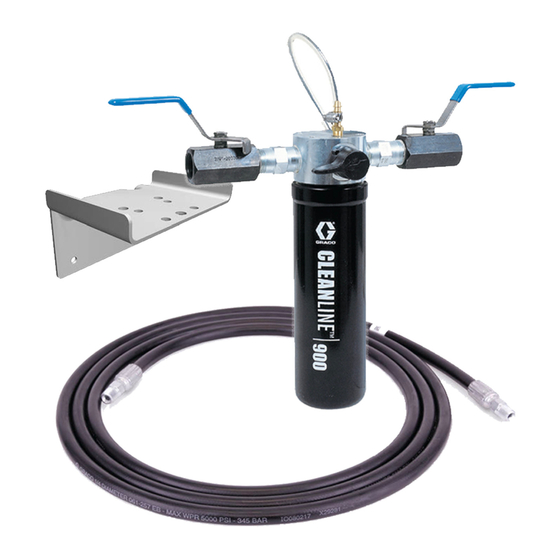

Model 248418 Wall Mount CleanLine 900 Filter Assembly
900 psi (6.2 Mpa 62 bar) Maximum Working Pressure
Model 248421 Pump Mount CleanLine 900 Filter Assembly
900 psi (6.2 Mpa 62 bar) Maximum Working Pressure
Model 248417 Wall Mount CleanLine 1800 Filter Assembly
1800 psi (12.4 Mpa 124 bar) Maximum Working Pressure
Model 248419 Pump Mount CleanLine 1800 Filter Assembly
1800 psi (12.4 Mpa 124 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001
Ti6278
™
310652F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco CleanLine 900
Summary of Contents for Graco CleanLine 900
- Page 1 1800 psi (12.4 Mpa 124 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. Ti6278 Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
Parts for CleanLine 900 Filter ....8 Graco Information ......12... -
Page 3: Warnings
Check equipment daily. Repair or replace worn or damaged parts immediately. • Do not alter or modify equipment. • For professional use only. • Use equipment only for its intended purpose. Call your Graco distributor for information. • Comply with all applicable safety regulations. 310652F... -
Page 4: Installation
The Fire-Ball 300 series pump bases are not tapped. You will need to use machine screws, lock-washers, CleanLine 900 Filter and nuts. Models 248418 and 248421 2. Observe the flow-direction arrows on the top of the filter assembly. -
Page 5: Operation
Follow Relieve Pressure procedure before replacing WARNING CleanLine Filter cartridge. Read warnings on page 3. CleanLine 900 Filter (models 248418 and 248421) Follow Relieve Pressure procedure before replacing 1. Turn off air supply to pump. CleanLine Filter cartridge. Read warnings on page 3. - Page 6 Spitting will occur during dispense until air is rate or other signs of degraded performance. To replace purged from the system. the CleanLine Filter, perform the following steps: CleanLine 900 Filter (models 248418 and 248421) 1. Relieve pressure (see Relieve Pressure on page 5). 310652F...
- Page 7 Operation 310652F...
-
Page 8: Parts For Cleanline 900 Filter
Parts for CleanLine 900 Filter Parts for CleanLine 900 Filter Model 248418 Wall Mount CleanLine Filter Assembly Model 248421 Pump Mount CleanLine Filter Assembly 17★ ◆16 To dispense system 18a◆ 18b★ Torque to 130-150 in-lbs. Apply sealant Route tube to used oil... -
Page 9: Parts For Cleanline 1800 Filter
A CleanLine Filter must be used when you use a Matrix fluid management system to dispense oil or anti-freeze. For anti-freeze mixtures, use the CleanLine 1800 wall mount unit (248417), CleanLine 900 Filters are not compatible with anti-freeze. Ti6276A From pump Ref. -
Page 10: Technical Data
Technical Data Technical Data Maximum Working Pressure CleanLine 900 Filter (models 248418 and 248421) 900 psi (6.2 MPa, 62 bar) CleanLine 1800 Filter (models 248417 and 248419) 1800 psi (12.4 MPa, 124 bar) Outlet 3/4 x 14 npt Filtration Efficiency CleanLine 900 Filter (models 248418 and 248421) ß... -
Page 11: Dimensions
Dimensions Dimensions Part No. 15D984 5.5” Part No. 15D700 12.25” 7” 4” 7” .375” 13” 2.25” .75” 2.25” 2” 4” Part No. 15D984 6” 6” mounting hole positions 310652F... -
Page 12: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
