Installation, Operating and Servicing

Instructions

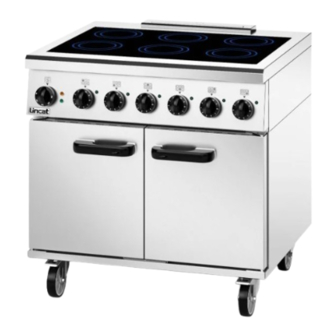

Phoenix Electric Induction Range

PHER01-A002, PHER01/SPH-A001 AND

PHER02-A001.

Please make a note of your product details for

future use:

Date Purchased: _________________________

Model Number: __________________________

Serial Number: __________________________

Dealer:

_________________________________

_______________________________________

IS707 ECN 4624

Need help?

Do you have a question about the Phoenix PHER02-A001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincat Phoenix PHER02-A001

Page 1 Installation, Operating and Servicing Instructions Phoenix Electric Induction Range PHER01-A002, PHER01/SPH-A001 AND PHER02-A001. Please make a note of your product details for future use: Date Purchased: _________________________ Model Number: __________________________ Serial Number: __________________________ Dealer: _________________________________ _______________________________________ IS707 ECN 4624...
Page 2 WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
Page 3 WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. Caution Symbol: Non-ionising electromagnetic radiation (magnetic field). Warning Symbol: Dangerous voltage (live parts at a working voltage exceeding 250V).
Page 4 Max combined weight of pans on hobtop (kG) Oven power (kW) Total power (kW) 17.1 13.0 11.4 PHER01/SPH WIRING This unit is designed so it can be wired either with a single 63A plug and lead or two 32A plug and leads. As supplied the unit is wired for a single 63A supply. To wire it with two supplies, fit the extra cable gland supplied into the base.
Page 5 Do not block or restrict the inlet filters on the appliance. Restricted airflow will result in reduced performance. Keep means of electrical isolation accessible at all times. A circuit breaker of type C, of suitable current rating should be fitted. A Residual Current Device (RCD) of suitable current rating and min 30mA trip level should be fitted.
Page 6 OPERATING INSTRUCTIONS General Information Only qualified or trained personnel should use this appliance. The green neon illuminated indicates power to the appliance. Rotate the control knob to the required power level setting. After use, switch the hob zone off by means of the control. Do not rely on the pan detectors.
Page 7 Recommended pan base diameter – minimum of 120mm. Nominal coil diameter – 180mm. Maximum pan diameter is 250mm. Hob control settings Constantly variable power level settings are available via the rotary control knob. There are a number on features available to you to enhance your appliances productivity.
Page 8 Melt, Keep warm, and Simmer functions The first three settings on the control knob are low temperature control functions. One bar is melt to heat the pot to 45 °C, two bars is 70 °C and three bars is 94 °C. These temperatures are approximate and depend on the pan quality and volume of product.
Page 9 There are numerous error codes identifying issues within the induction system. These are primarily of use when reporting a fault to Lincat’s Service Department; however some errors can be cleared by turning the control to the ‘Off’ position, unplugging the appliance and then switching back on again.
Page 10 No power supply of the 1. check wiring Error on power board or supply E / 6 power element or error on 2. check filter board element power board 3. replace power board Air exhaust blocked, E / 8 Incorrect fan speed Error on fan left or right e.g.
Page 11 Your product has a manufacturer’s warranty. This requires you maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components, Lincat may charge you for a warranty repair. Please check the website for terms and conditions.
Page 12 SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT Removing the air filter Removing and cleaning the air filter will ensure an adequate supply of cool air and restore performance. Disconnect from the power supply and allow the appliance to cool. The filters are located on the base of the unit. At the back of the unit on the hob top is a metal cover.
Page 13 All available on serial plate Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
