REAR
3

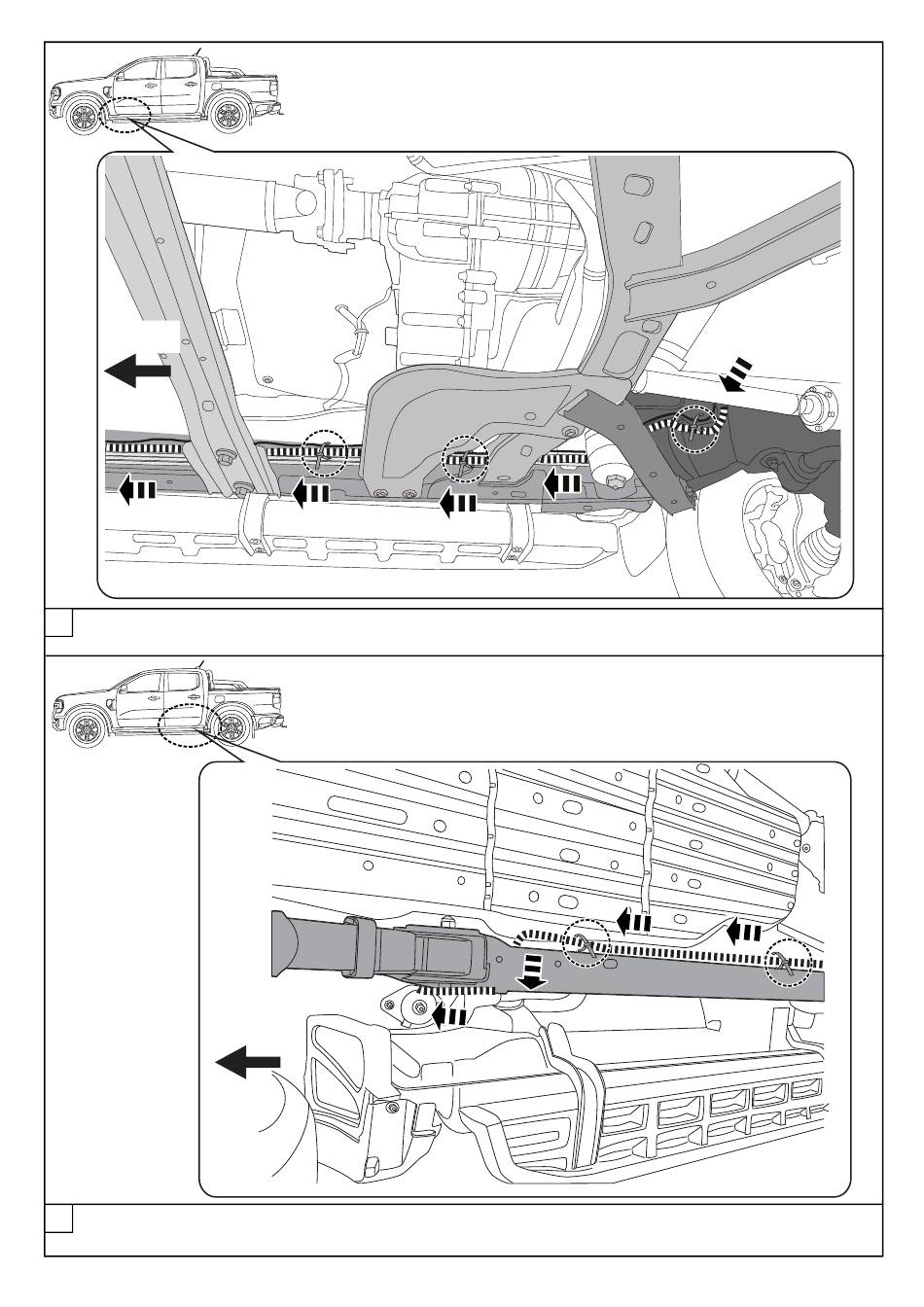

Continue to the rear along the chassis rail inner side (above the crossmembers). Secure the vehicle harness to
the existing vehicle harness as shown using cable ties.
4
Continue running the vehicle harness along the chassis rail inner side. Feed the harness to the outside of the
chassis rail (over the top of the rail) at the rear wheel arch as shown. Secure with two cable ties as shown.
ISSUE 1: 05/08/24
--
EGR Document ID#123932 v2
REAR
2024-09-13 23:52:53
Page 8 of 34
agramm --
RT0403
