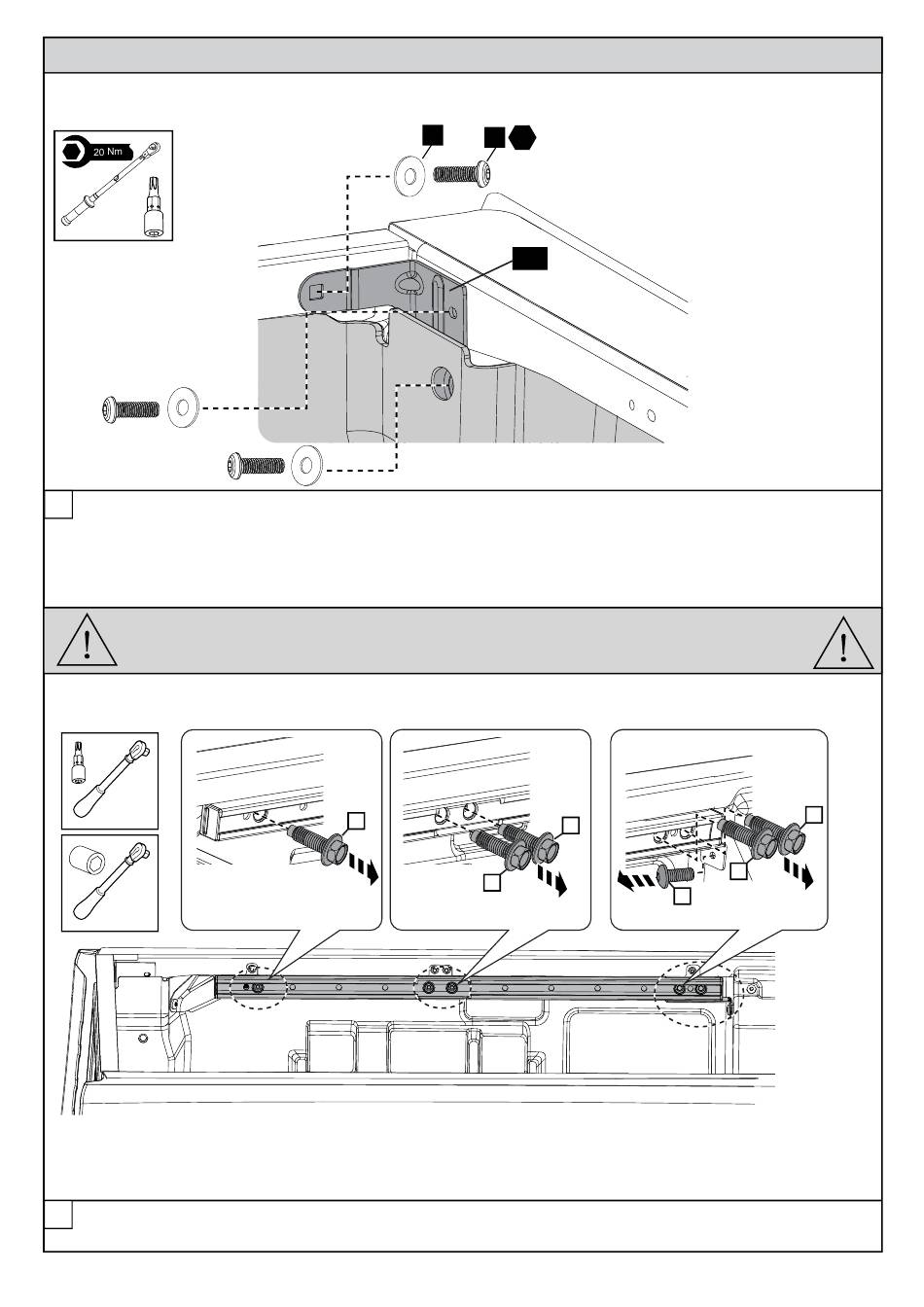

Clean the top and inside of the tub. Remove the tail lights.
Place the Front Reinforcement Bracket (34) underneath the tub liner (if applicable) and secure with 3x screws
(36) and washers (37). Torque to 20Nm. Repeat for the LHS.
T40
13mm
2
If CMS rail is present, remove and retain CMS rail, hex head screws (A) and torx screw (B). If CMS rail is not pres-
ent, remove torx screw (B) located at the rear of the tub. Retain the CMS bar and hardware for refit.
ISSUE 1: 05/08/24
-- EGR Document ID#123932 v2
PERFORM THIS STEP ONLY IF CMS IS FITTED
A
RHS SHOWN
2024-09-13 23:52:53
1
37
36
x3
34
A
A
Page 11 of 34
agramm --
TUB PREPARATION
