R&G FAP0028BK Fitting Instructions Manual

Bmw f750gs – f850gs 2018

Hide thumbs

page of 12

/ 12
Bookmarks

Available languages

Quick Links

Download this manual

Page 1 of 12

FAP0028BK

FITTING INSTRUCTIONS FOR FAP0028BK

BMW F750GS – F850GS 2018

LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE

WAY OF MOUNTING TO THE BIKE

(

)

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

FOR CLARITY OF INSTRUCTIONS ONLY

Please note that in cases where kits are packed with rubber washers holding the components onto the

bolt – the rubber washers should be thrown away!

TOOLS REQUIRED

Torx Driver Set

10mm Spanner

Heat Gun

This Kit Contains

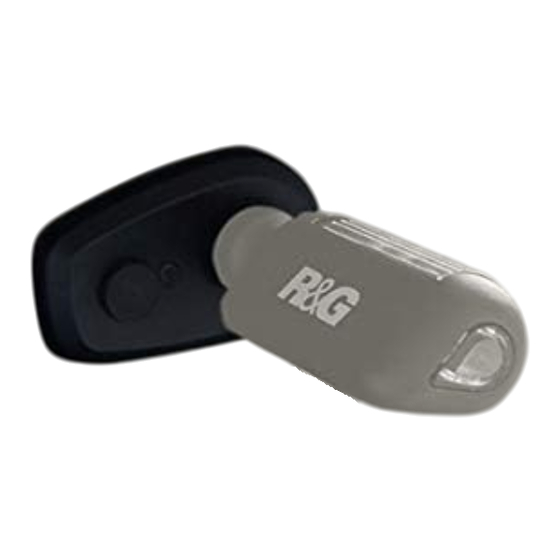

ITEM 1 = 2 x CON0004 INDICATOR ADAPTOR

ITEM 2 = 2 x RUBBER BUNG (RB50-20-00FG)

ITEM 3 = 2 x S1070 RUBBER SPACER

ITEM 4 = 2 x M8 WASHER

ITEM 5 = 2 x 200mm LENGTH OF HEAT SHRINK (666-896)

R&G

Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301

www.rg-racing.com

Email:

info@rg-racing.com

- 1 -
