FITTING INSTRUCTIONS FOR FI0138SI FRAME INSERT
KAWASAKI NINJA Z900RS 2018 ---LEFT OR RIGHT HAND SIDE
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
3mm 'O' RING
Left or Right hand side (as you sit on bike)
•
Place the 'O' into the groove of the frame insert as shown above.
•
Ensuring the logo is in the correct orientation place the frame insert into the frame recess and
gently knock in with a soft mallet or the palm of your hand as shown in the top picture (if very
tight a small amount of liquid detergent on the 'O' ring will help).
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com
mounting to the bike

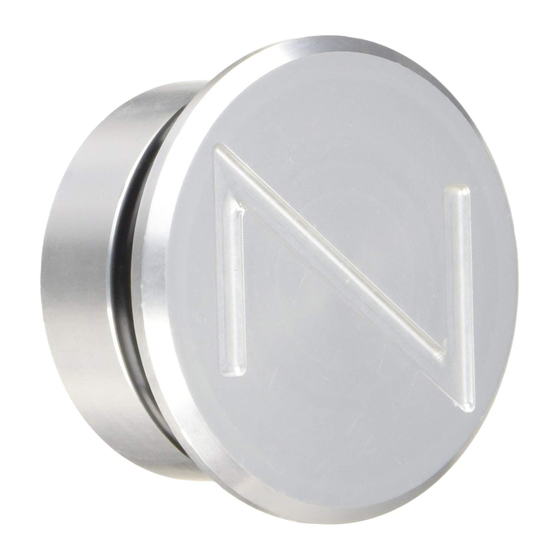

FRAME INSERT (FI0138)
TOOLS REQUIRED
•
SOFT MALLET
Issue 1 18/04/2018 (NSY)
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
)
'O' RING
