FP0252

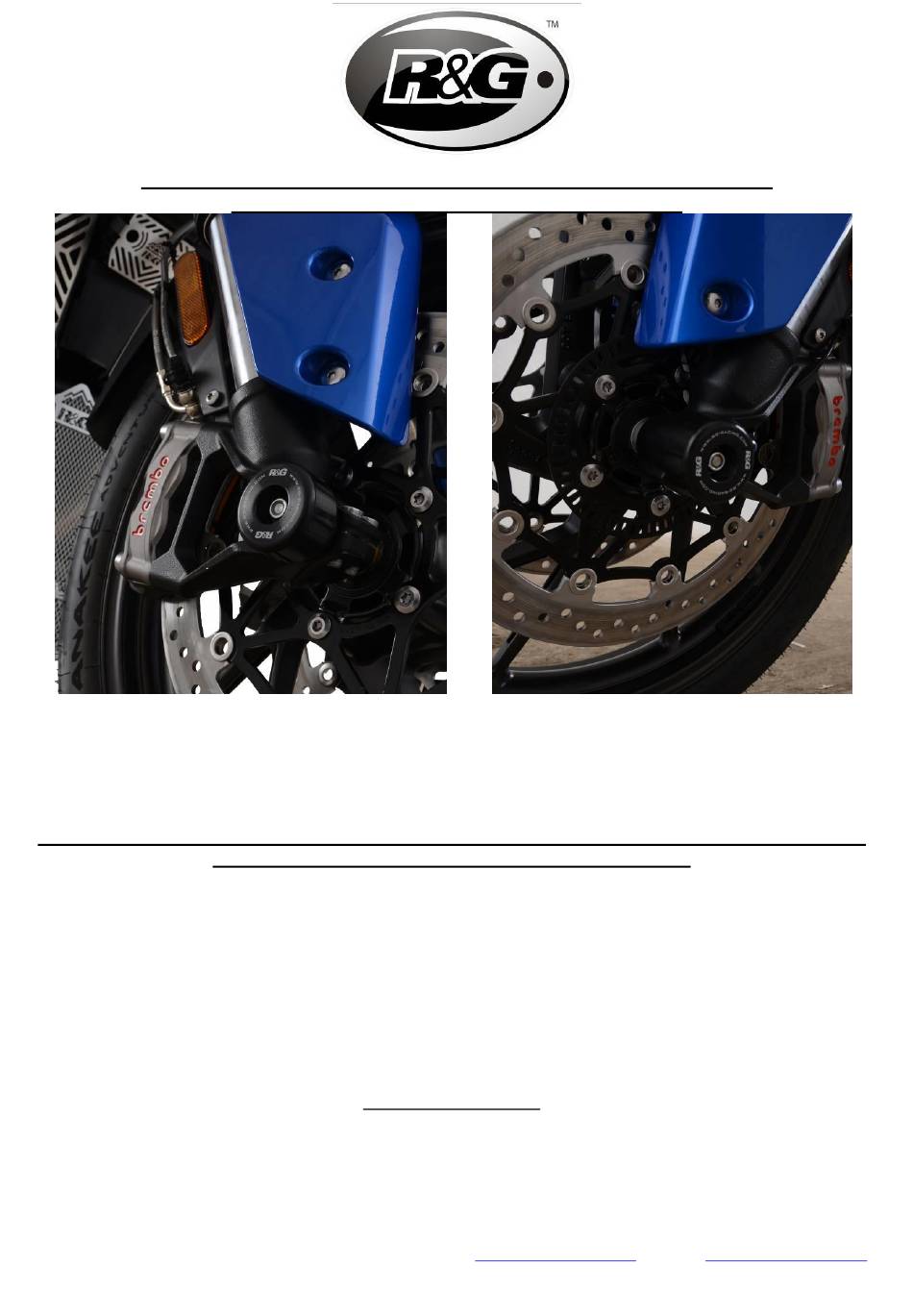

FITTING INSTRUCTIONS FOR FP0252 FORK PROTECTORS
TO FIT TRIUMPH TIGER 850 SPORT 2021
Picture A
Picture B
This Kit contains the items pictured and labelled over page.
Some parts may be shown for clarity of instructions only.
Do not proceed until you are sure all parts are present.
Please read all instructions before proceeding.
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike.
In the event of rubber washers being used to hold components onto bolts,
these rubber washers can be thrown away.
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM
www.rg-racing.com
R&G
Unit
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
Tel: +44 (0)
420 89007 Fax: +44 (0)
420 87301
www.rg-racing.com
Email:
info@rg-racing.com
1
1
Advertisement
Table of Contents
Related Manuals for R&G FP0252
Summary of Contents for R&G FP0252
- Page 1 Page 1 of 6 FP0252 FITTING INSTRUCTIONS FOR FP0252 FORK PROTECTORS TO FIT TRIUMPH TIGER 850 SPORT 2021 Picture A Picture B This Kit contains the items pictured and labelled over page. Some parts may be shown for clarity of instructions only.
-
Page 2: Tools Required
Page 2 of 6 FP0252 TOOLS REQUIRED GENERAL TORQUE SETTINGS M4 BOLT = 8Nm • Socket Set to Include 2 x 13mm sockets and wrenches. M5 BOLT = M6 BOLT = M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM No. -
Page 3: Fitting Instructions
Page 3 of 6 FP0252 FITTING INSTRUCTIONS • Fit one nut (item 5) and one washer (item 6) to the spindle bar (item 4), engaging the nut so the plastic insert of the nut is fully engaged and the bar protrudes by 1 or 2 threads. It is recommended to use a small amount of superglue or Loctite to fix this nut as this will aid when tightening the opposite side later. - Page 4 Page 4 of 6 FP0252 NOTICE DE MONTAGE POUR FP0252 PROTECTIONS FOURCHE POUR TRIUMPH TIGER 850 SPORT 2021 Picture A Picture B E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS...
-
Page 5: Outils Requis
Page 5 of 6 FP0252 OUTILS REQUIS VALEURS DE SERRAGE M4 BOULON = 8Nm • Clé à cliquet + douilles 2 x 13mm. M5 BOULON = M6 BOULON = M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm LÉGENDE... -
Page 6: Notice De Montage
Page 6 of 6 FP0252 NOTICE DE MONTAGE • Monter un écrou (article 5) et une rondelle (article 6) sur la barre (article 4), en engageant l'écrou de sorte que l'insert en plastique de l'écrou soit complètement engagé de sorte que la barre dépasse de 1 ou 2 filets.
