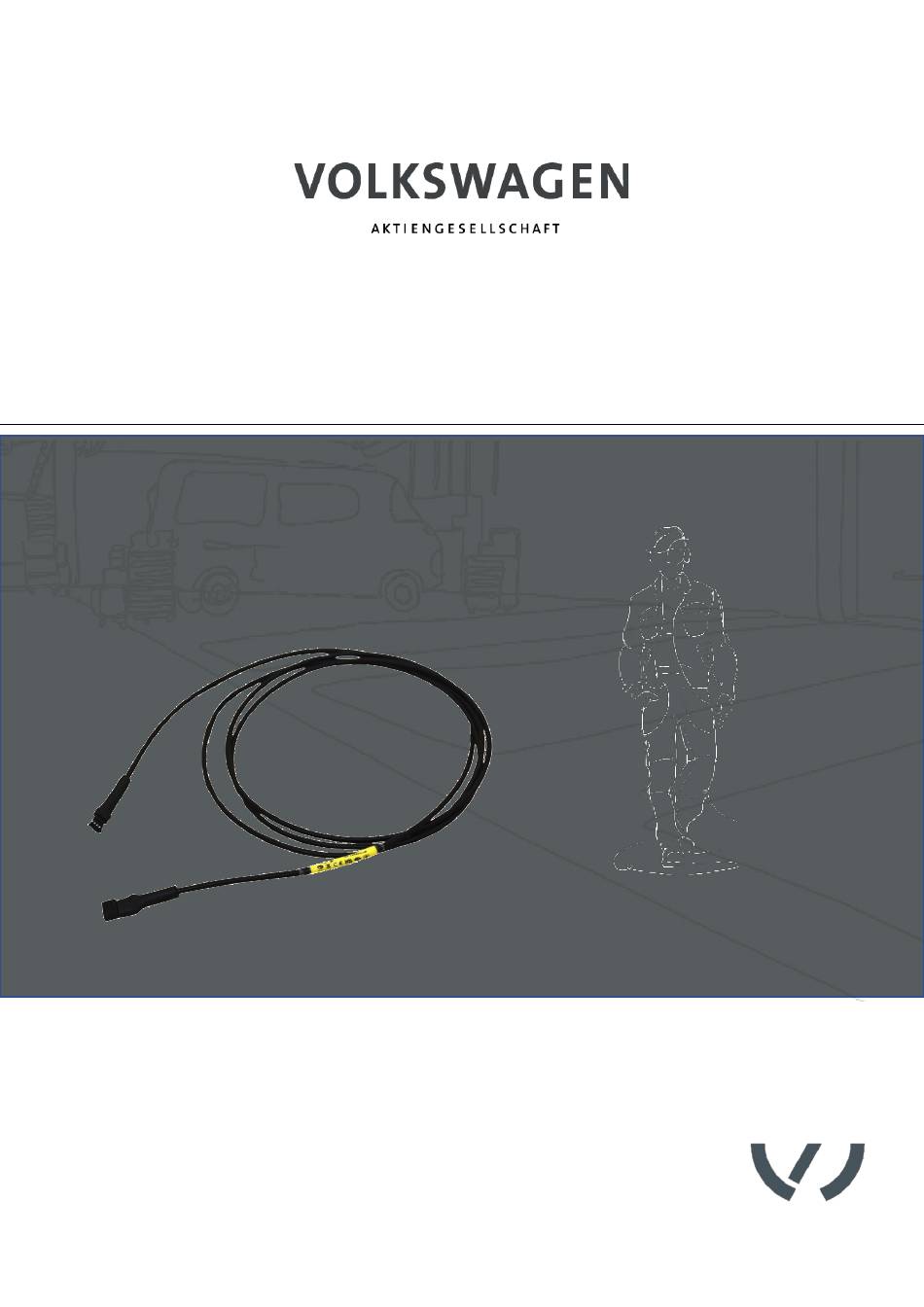

- Page 1 Operating Manual C o n n e c t i o n c a b l e V A S 6 5 5 8 A / 4 8...
- Page 2 Revision Date Reason 19.01.2024 First edition imprint imprint Manufacturer Akkuteam Energietechnik GmbH Theodor-Heuss-Strasse 4 37412 Herzberg am Harz Telephone: +49 (0) 5521 9981-0 Fax: +49 (0) 5521 9981-11 info@akkuteam.de www.akkuteam.de duplication Reproduction or reprinting, even in extracts, always requires the written permission of the manufacturer.
- Page 3 Contents Contents IMPRINT CONTENTS INTRODUCTION Preliminary remarks Validity of the declaration of conformity Manufacturer information SECURITY Warning levels Important safety instructions Intended Use Requirements for the target group Obligations of the operator PRODUCT DESCRIPTION Scope of delivery Construction Symbols and Connections Technical data SERVICE Installation...
- Page 4 DE | Introduction Introduction Preliminary remarks Read this instruction manual carefully before using the product. The product comes with a USB stick on which the operating instructions are stored in various national languages. The current version and other national languages can be found on our homepage.
- Page 5 These operating instructions are exclusively valid for the following product: Item number: ASE 405 491 00 000 Designation: Connection cable VAS 6558A/48 Warning levels This chapter informs you about the warning levels that you will find in this user manual. DANGER...
- Page 6 In accordance with the vehicle manufacturer's specifications in guided troubleshooting, the connecting cable VAS 6558A/48 serves as an extension cable for functional testing of the modules/communication when the BMCe is unscrewed. The product is suitable for testing the high-voltage battery in the following vehicles: •...
- Page 7 DE | Security Requirements for the target group Work on the product may only be carried out by qualified specialist personnel! Qualified personnel as defined in these operating instructions meet all requirements applicable in the user country for work on high-voltage systems, accordingly: •...
- Page 8 DE | Product Description Product Description Scope of delivery Immediately check the condition and completeness of the scope of delivery. If there are any defects, contact the manufacturer immediately. (1) Connection cable VAS 6558A/48 (2) USB stick with operating instructions (3) Information sheet...
- Page 9 DE | Product Description Construction Structure of the product: (1) Connection plug (2) Connection plug...
- Page 10 DE | Product Description Symbols and Connections The following symbols are shown on the product: Symbol Meaning The serial number, together with the manufacturer part number, is used to identify the product. The manufacturer part number, together with the serial number, is used to identify the product. The disposal instructions prohibit the disposal of the product with household waste.
- Page 11 DE | Product Description Technical data Rated data Values Manufacturer number 22104250 Maximum rated voltage 15 V/DC Maximum rated current Weight ~ 100g Dimensions L/H/W ~300mm/200mm/50mm Cable length 3000 mm Environmental conditions Operation storage Transport temperature 5°C to 40°C -20°C to 60°C -20°C to 60°C Height above sea level max.
- Page 12 DE | Service Service This chapter informs you about the following activities: • Installation, • Cleaning, • Storage and Transport, • Disposal, • Maintenance. Installation Follow the safety instructions. Connect connector plugs. ✓ The line has established the electrical connection. Cleaning Pay attention to the safety instructions! The product may only be cleaned with a dry cloth.
- Page 13 DE | Help Help Warranty The product comes with a warranty period of 24 months. The warranty refers to a production defect or a clearly detectable defect in the product that is not due to user error. All inquiries in this regard must be reported to the wholesaler with appropriate photo documentation, detailed description of the error and serial number.
