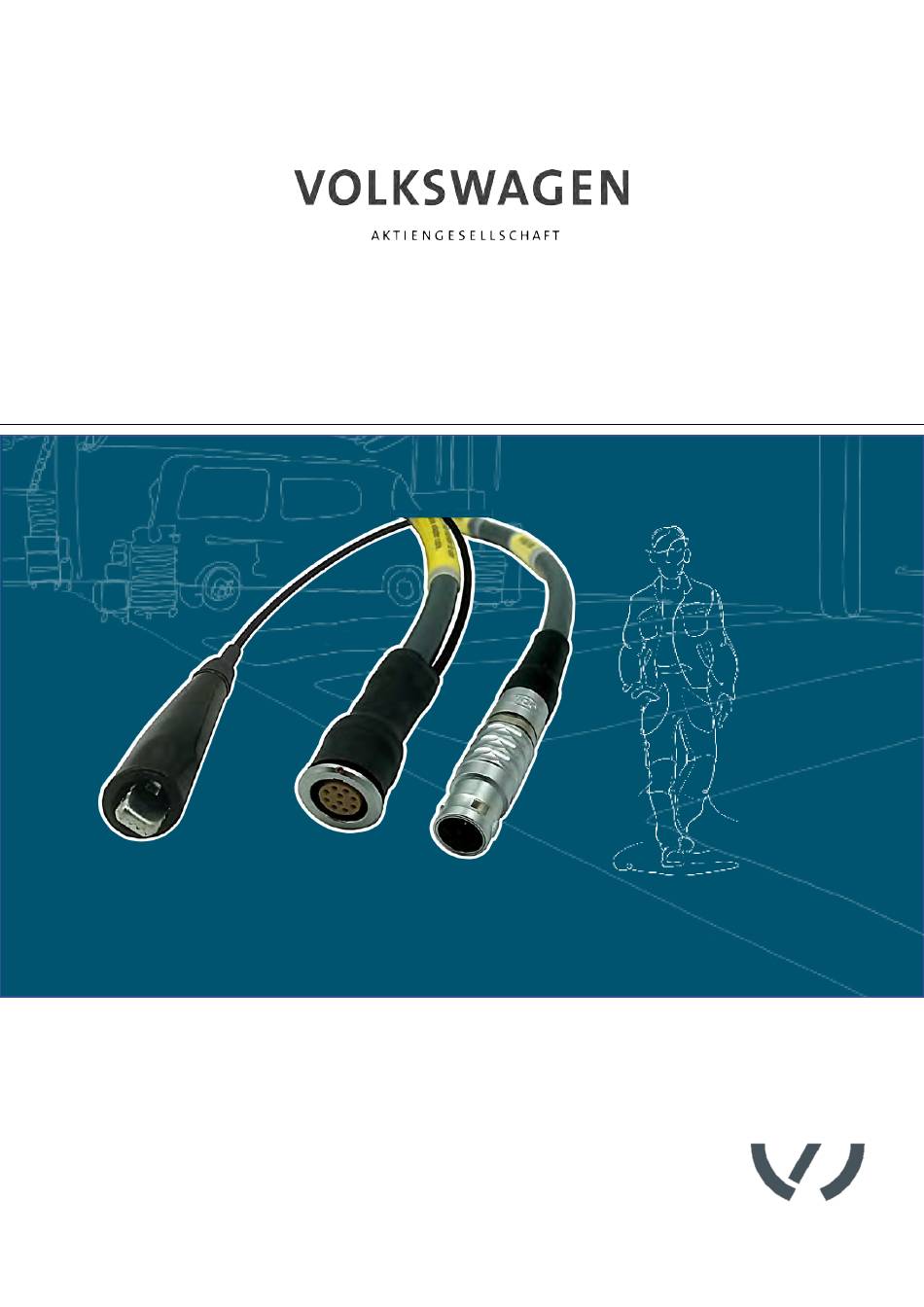

- Page 1 Operating manual A d a p t e r c a b l e V A S 5 5 8 1 / 1 A - 2 A 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 3: Table Of Contents
Important safety instructions Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Cleaning Storage Disposal Maintenance HELP Warranty Customer service 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 4: Introduction
Stodia's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101615 Designation Adapter cable VAS 5581/1A-2A Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 7: Intended Use
The product is used to adapt the VAS 5581/VAS 5581A high-voltage diagnostic box to the VAS 5581/1A diagnostic cable for use cases specified by the vehicle manufacturer in the guided fault finding. -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Adapter cable (2) USB stick with operating manual Design Product design: (1) Plug for diagnostic box (2) Socket for diagnostic cable (3) Ground clip 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 9: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 10: Wiring Diagram
EN | Product description Wiring diagram 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 11: Technical Data
-20°C to 60°C Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 12: Operation
The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! • Use the product only for the applications intended by the vehicle manufacturer! WARNING Risk of explosion! Product components may produce sparks and electric arcs. • Do not use the product in potentially explosive atmospheres! 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 13: Startup
Connect the ground clip to a conductive part of the vehicle body. Connect the plug of the diagnostic cable used to the socket. Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 14: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... -
Page 15: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A... - Page 16 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 12/2021 32.VW.2210.1615_BA_V01_EN VAS 5581/1A-2A...
