Summary of Contents for Volkswagen VAS 6558A/28

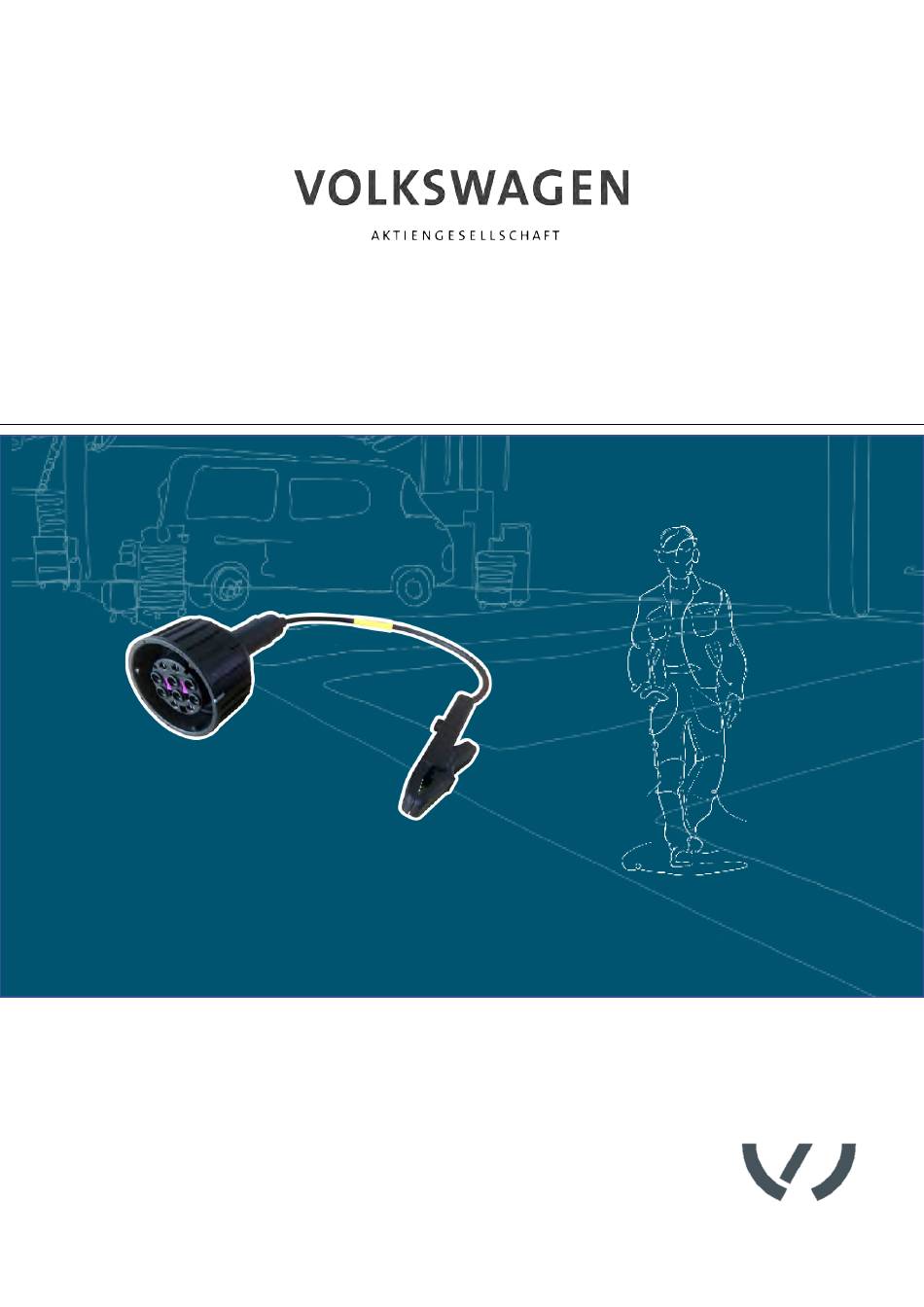

- Page 1 Operating manual G r o u n d c a b l e V A S 6 5 5 8 A / 2 8 34.VW.2210.1355_BA_V02_EN VAS 6558A/28...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 3: Table Of Contents
Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Cleaning Storage Disposal Maintenance HELP Warranty Customer service 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 4: Introduction
With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101355 Designation Ground cable VAS 6558A/28 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
The operator is responsible for ensuring that all staff working with the ground cable fulfills the requirements for the target group. Furthermore, the operator is responsible for ensuring the following: • The ground cable is always in perfect working order. • The regular inspection intervals for the ground cable are observed and recorded. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 7: Product Description

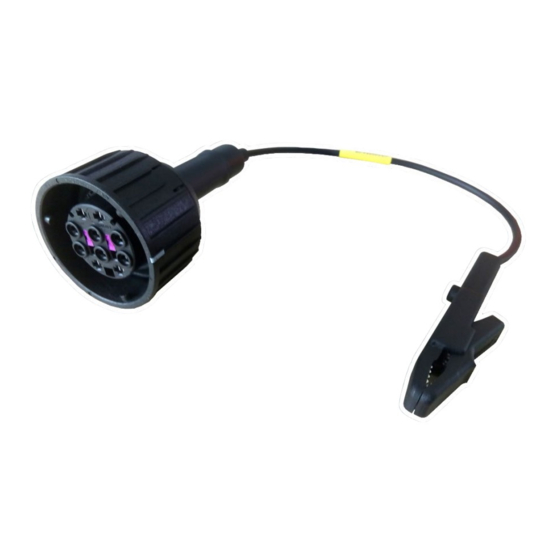

Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Ground cable (2) USB stick with operating manuals Design Product design: (1) Socket, 10-pin (2) Ground clip 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 8: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. Wiring diagram 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 9: Technical Data
Elevation above sea max. 2000 m No limitation level Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Pollution rating Condensation Not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 10: Operation
Connect the socket to the disconnected plug of the connection you want to test. Lock the connection. Connect the ground clip to a suitable part of the vehicle body. You can now perform measurements in accordance with the guided fault finding. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 11: Detaching The Plug Connections
The electrical voltage in high-voltage systems is lethal and will cause death by electric shock. • Disconnect the product from all power sources before cleaning the product! Observe the safety instructions! Use only a dry cloth to clean the product. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 12: Storage
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... -
Page 13: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 34.VW.2210.1355_BA_V02_EN VAS 6558A/28... - Page 14 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Version 03/2023 34.VW.2210.1355_BA_V02_EN VAS 6558A/28...
