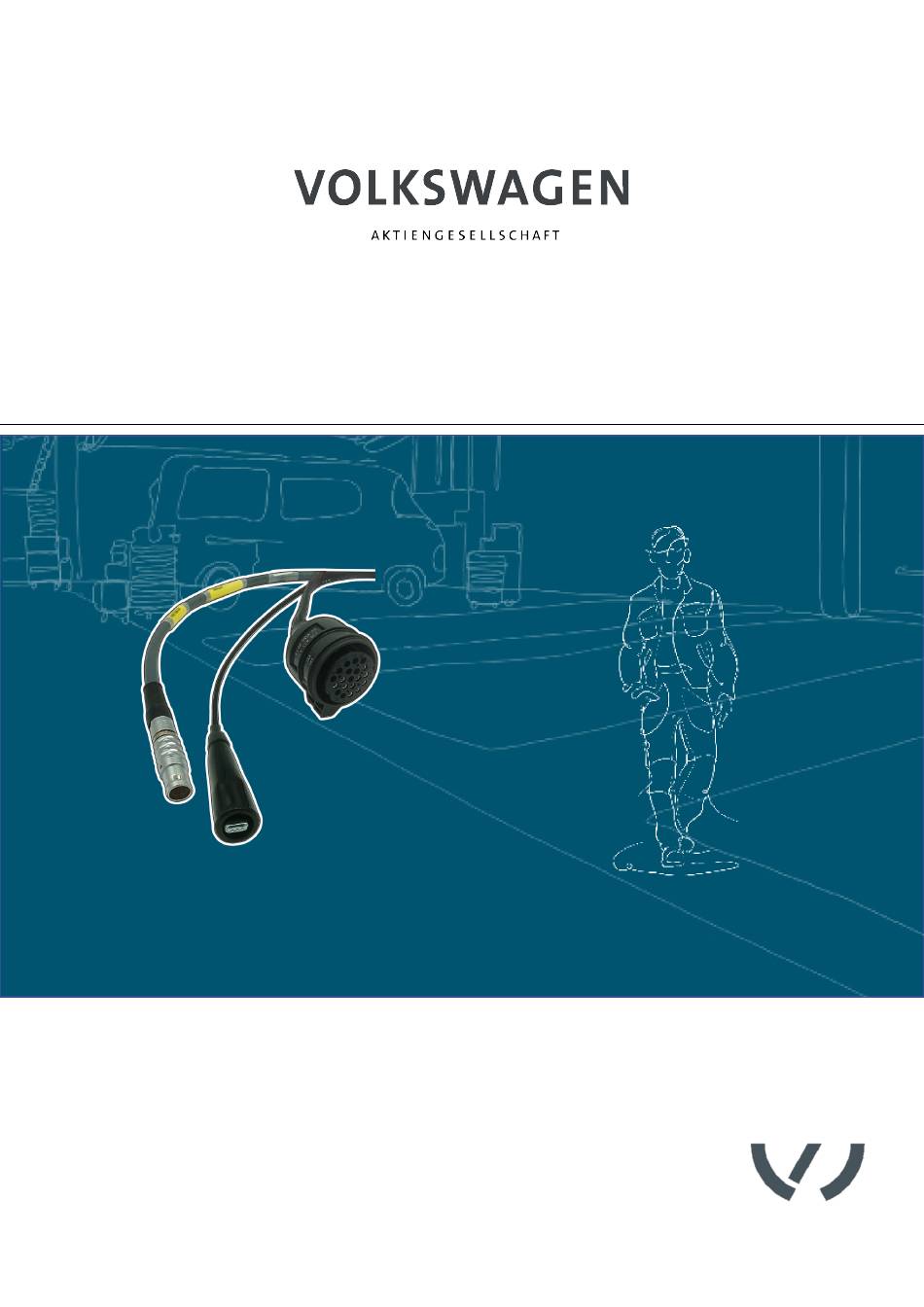

- Page 1 Operating manual D i a g n o s t i c c a b l e V A S 5 5 8 1 / 5 33.VW.2210.0722_BA_V00_EN VAS 5581/5...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 3: Table Of Contents
PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Detaching the plug connection for the diagnostic cable (20-pin) 13 Cleaning Storage Disposal Maintenance HELP Warranty Customer service 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 4: Introduction
With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. CAR-connect GmbH – Experience, Expertise and Innovation – MADE IN GERMANY 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22100722 Designation Diagnostic cable VAS 5581/5 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 7: Intended Use
• Volkswagen e-Golf (2014 model). In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group Only qualified personnel may work with this product! -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Diagnostic cable (2) USB stick with operating manual Design Product design: (1) Plug for diagnostic box (2) Ground clip (3) Plug for battery management system 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 9: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The seal of approval identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 10: Wiring Diagram
Max. 2000 m No limitation. Humidity Max. 80 % up to 31° C, Max. 85 % decreasing linearly to 50 % at 40° C Condensation not permitted. Maximum permissible relative humidity: 60 % in environments with corrosive gas/air. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 11: Operation
• Use the product only for the applications intended by the vehicle manufacturer! CAUTION Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) Startup Observe the safety instructions. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... - Page 12 Connect the ground clip to a conductive part of the vehicle body. Connect the plug to the disconnected socket on the battery management system. Lock the connection. Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.0722_BA_V00_EN VAS 5581/5...
-
Page 13: Detaching The Plug Connections
Detaching the plug connection for the diagnostic cable (20-pin) The plug connections have a bayonet locking mechanism. To detach a plug connection: Twist the socket housing to unlock the connection. Pull the plug connection apart. The plug connection is now detached. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 14: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 33.VW.2210.0722_BA_V00_EN VAS 5581/5... -
Page 15: Help
Always include the serial number with any product queries. This number is found on the product. CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@car-connect.cc www.car-connect.cc 33.VW.2210.0722_BA_V00_EN VAS 5581/5... - Page 16 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 03 / 2021 33.VW.2210.0722_BA_V00_EN VAS 5581/5...
