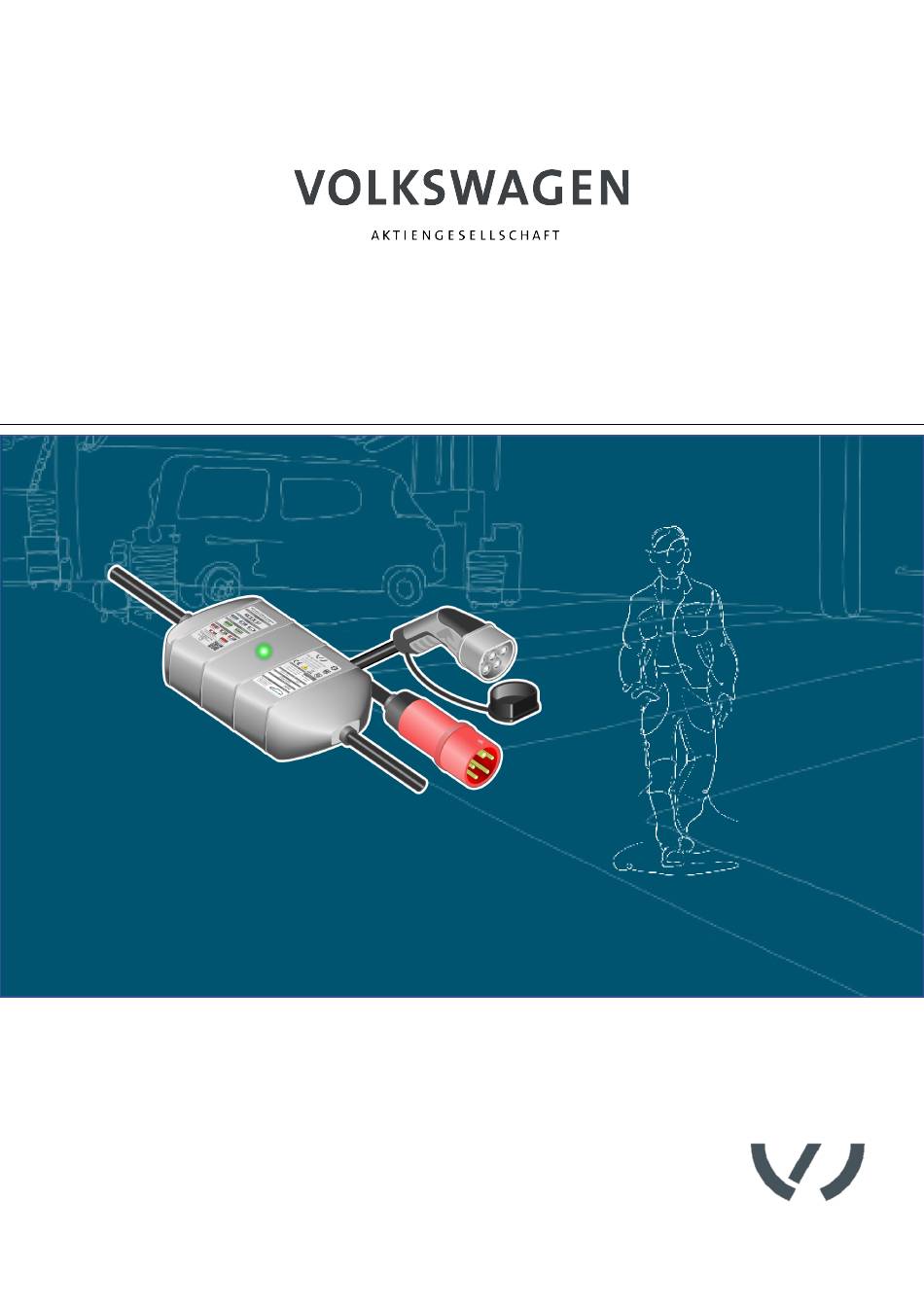

- Page 1 Operating manual I C - C P D A C c h ar g i n g c a b l e V A S 6 9 2 3 A 42.VW.2210.2554_BA_V02_EN VAS 6923A...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 3: Table Of Contents
Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Status display Technical data OPERATION Preparing the power supply connection Startup Starting charging Finishing charging Troubleshooting Cleaning Disposal Maintenance Storage HELP Warranty Customer service 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 4: Introduction
With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. CAR-connect GmbH – Experience, Expertise and Innovation – MADE IN GERMANY 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102554 Designation IC-CPD AC charging cable VAS 6923A Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
• Ensure that the product is at least 50 cm above the ground during operation! WARNING Danger of electric shock! The electrical voltage in the product is dangerous and can cause serious injury from electric shock! • Never attempt to power other devices with the product! 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 7: Intended Use
Use the AC charging cable only on the charging socket of your electric vehicle! Connect the AC charging cable only to fused power sockets! Do not use extension cables. Use only adapters that the manufacturer has approved for the product! Any use beyond what is listed here is prohibited! 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 8: Requirements For The Target Group
Furthermore, the operator is responsible for ensuring the following: • The IC-CPD AC charging cable is always in perfect working order. • The regular inspection intervals for the IC-CPD AC charging cable are observed and recorded. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 9: Product Description
(3) USB stick with operating manual Design Product design: (1) AC charging cable (2) Control unit (3) AC power cable (4) Three-phase plug, CEE 16 A, 5-pin (power supply side) (5) AC charging plug, type 2 (vehicle side) (6) Dust cap 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 10: Symbols And Connections
The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. Overview of LED flashing codes (see the “Status display” section) 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 11: Status Display
Red, white, green, pause DC error Red, white, blue, pause AC error Red, white, red, pause Communication error Red, continuously Device error illuminated You can find a description of how to eliminate individual errors in the “Troubleshooting” section. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 12: Technical Data
-25 °C to 80 °C -25 °C to 55 °C Elevation Max. 2000 m No limitation Humidity Max. 95 % at 25° C Condensation not permitted. Maximum permissible relative humidity: 60 % in environments with corrosive gas/air. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 13: Operation
The following illustration of a power supply connection is provided as an example and may differ from your particular situation. This has no effect on the steps to be performed. (1) Miniature circuit breakers (2) Three-phase power supply connection (3) Residual-current device (RCD) 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 14: Startup
During the self-test, the status LED flashes blue once and then white. The number of white flashes indicates the product software version. The status LED then flashes or lights up blue, depending on the power supply (see the “Status display” section). You can now begin the charging process. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 15: Starting Charging
• Finish the charging process before disconnecting the plug connections! CAUTION Risk of damage! Disconnecting the power supply connection while under load may cause damage to electronic components and increased wear. • Finish the charging process through the vehicle before disconnecting the power supply connection! 42.VW.2210.2554_BA_V02_EN VAS 6923A... - Page 16 Pick up the control unit and wind up the cable. Ensure that the AC charging plug and three-phase plug do not drag along the floor or fall to the floor. Store the AC charging cable in the carrying case. Charging is complete. 42.VW.2210.2554_BA_V02_EN VAS 6923A...
-
Page 17: Troubleshooting
The table below provides you with information about the steps you can take to resolve these errors. Always finish the charging process before you resolve an error (see the “Finishing charging” section)! 42.VW.2210.2554_BA_V02_EN VAS 6923A... - Page 18 If the fault persists, the vehicle isolation must be checked by a person qualified to do so in accordance with DGUV 200-005 (level 2 at minimum). Communication Restart the charging process. error Device error Contact the manufacturer. 42.VW.2210.2554_BA_V02_EN VAS 6923A...
-
Page 19: Cleaning
Follow the safety instructions! Test the product at regular intervals to ensure proper functioning. Storage When the product is not in use, keep it in the carrying case and store it in a dry and dust-free location. 42.VW.2210.2554_BA_V02_EN VAS 6923A... -
Page 20: Help
Always include the serial number with any product queries. This number is found on the product. CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@car-connect.cc www.car-connect.cc 42.VW.2210.2554_BA_V02_EN VAS 6923A... - Page 21 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 06 / 2021 42.VW.2210.2554_BA_V02_EN VAS 6923A...
