Summary of Contents for Volkswagen VAS 5581/14

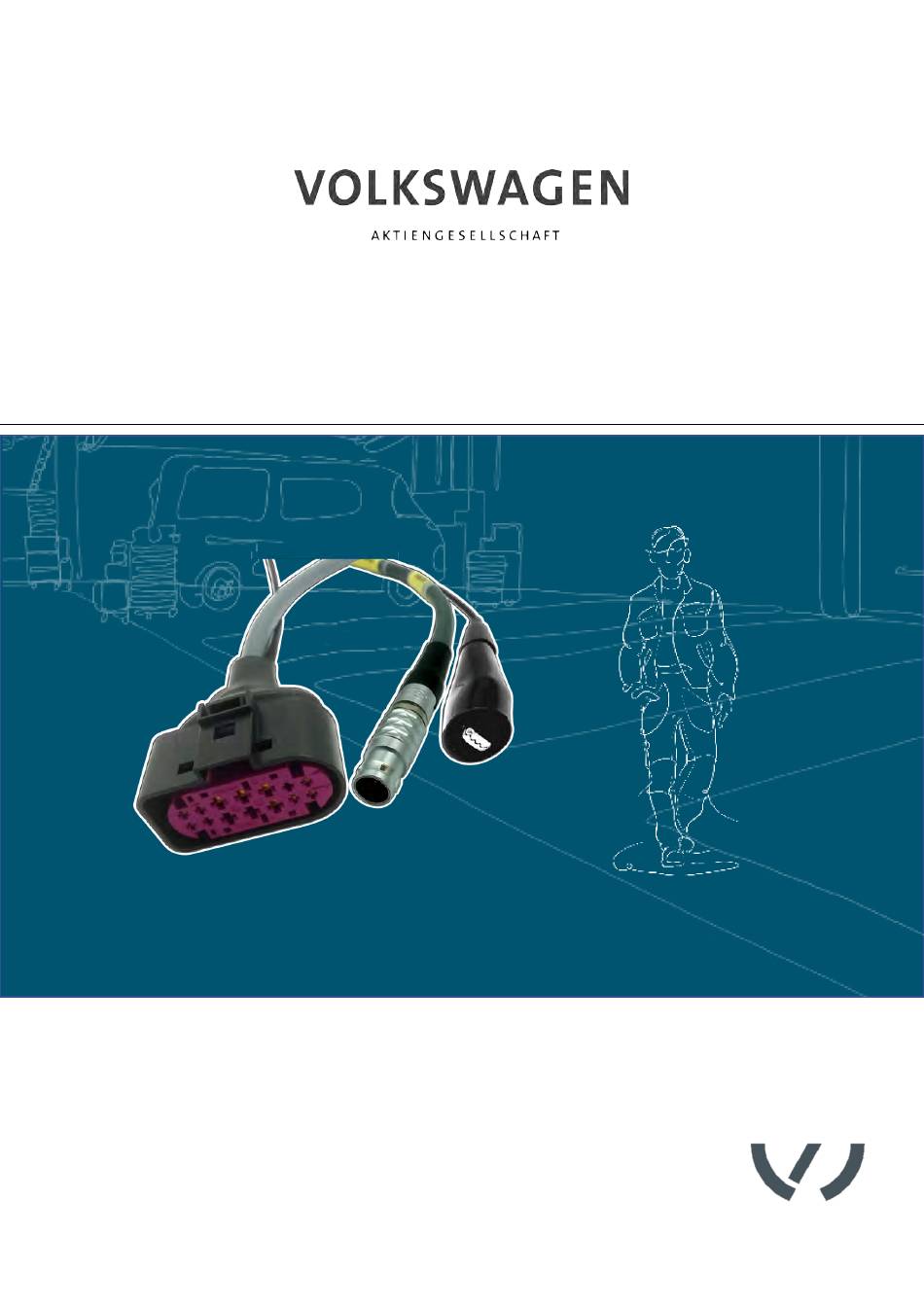

- Page 1 Operating manual D i a g n o s t i c c a b l e V A S 5 5 8 1 / 1 4 33.VW.2210.2962_BA_V01_EN VAS 5581/14...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 3: Table Of Contents
Startup Operation on the VAS 5581A diagnostic box Operation on the VAS 5581 diagnostic box Detaching the plug connections Detaching the plug connection on the diagnostic cable (14-pin) 16 Cleaning Storage Disposal Maintenance HELP Warranty Customer service 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 4: Introduction
Stodia's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102962 Designation Diagnostic cable VAS 5581/14 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 7: Intended Use
The product may only be used on high-voltage systems that have been certifiably de- energized. In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group... -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Diagnostic cable (2) USB stick with operating manual Design Product design: (1) Plug for battery management system (2) Plug for diagnostic box (3) Ground clip 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 9: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 10: Wiring Diagram
EN | Product description Wiring diagram 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 11: Technical Data
-20°C to 60°C Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 12: Operation
Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) Startup Operation on the VAS 5581A diagnostic box Observe the safety instructions. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... - Page 13 Connect the plug to the disconnected socket on the battery management system. Make sure that the plug connection engages. Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.2962_BA_V01_EN VAS 5581/14...
-
Page 14: Operation On The Vas 5581 Diagnostic Box
Observe the safety instructions. Connect the ground clip of the VAS 5581/1A-2A adapter cable to a conductive part of the vehicle body. Connect the plug of the VAS 5581/1A-2A adapter cable to the VAS 5581 diagnostic box. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... - Page 15 Connect the plug to the disconnected socket on the battery management system. Make sure that the plug connection engages. Connect the plug to the socket of the VAS 5581/1A-2 adapter cable. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.2962_BA_V01_EN VAS 5581/14...
-
Page 16: Detaching The Plug Connections
Detaching the plug connection on the diagnostic cable (14-pin) The plug connections have an automatic locking mechanism. To detach a plug connection: Push in and hold the catch. Pull the plug connection apart. The plug connection is now detached. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 17: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 33.VW.2210.2962_BA_V01_EN VAS 5581/14... -
Page 18: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 33.VW.2210.2962_BA_V01_EN VAS 5581/14... - Page 19 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 12/2021 33.VW.2210.2962_BA_V01_EN VAS 5581/14...
