Summary of Contents for Volkswagen VAS 5581/7

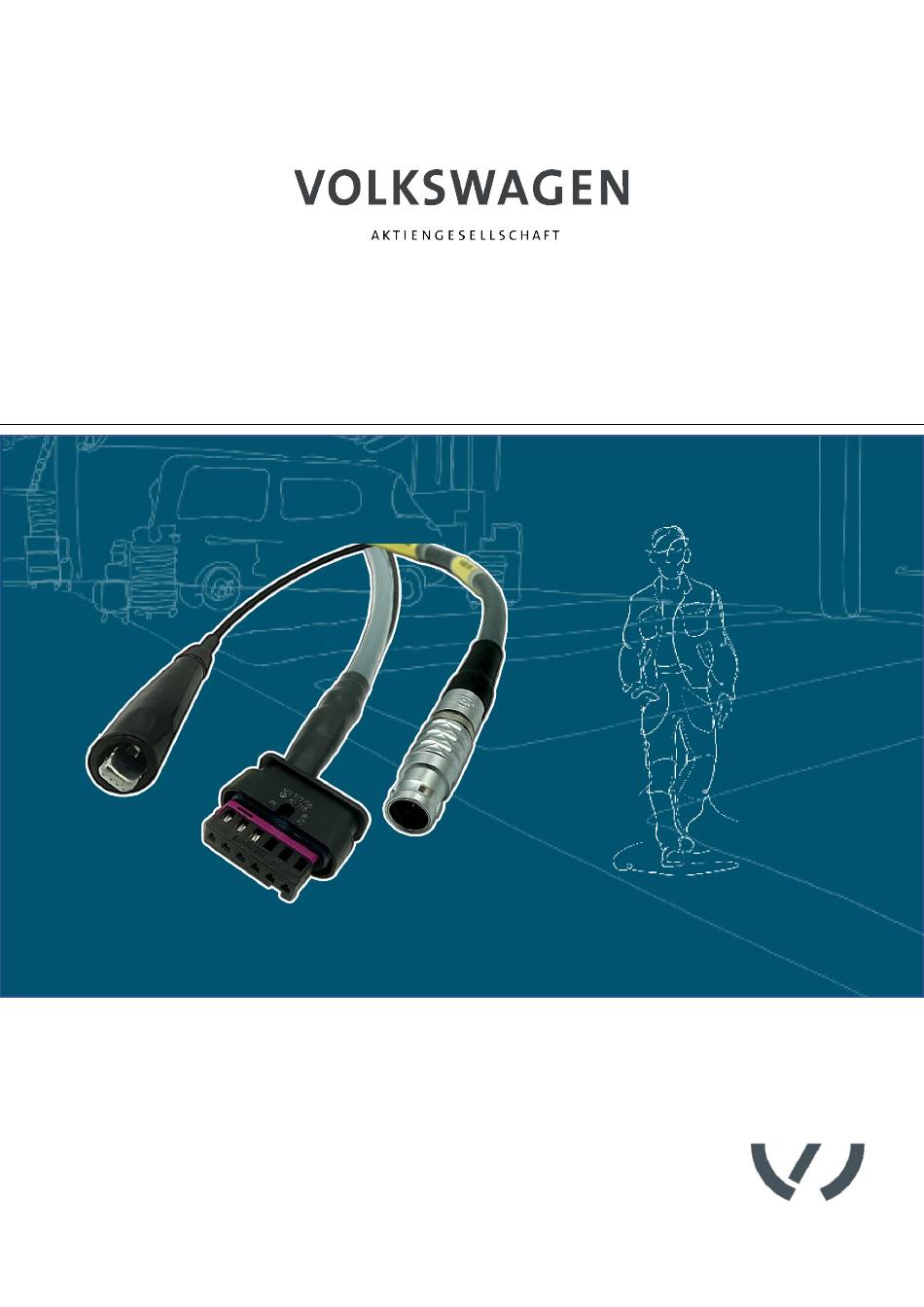

- Page 1 Operating manual D i a g n o s t i c c a b l e V A S 5 5 8 1 / 7 33.VW.2210.1612_BA_V00_EN VAS 5581/7...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 3: Table Of Contents
Important safety instructions Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Cleaning Storage Disposal Maintenance HELP Warranty Customer service 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 4: Introduction
With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. CAR-connect GmbH – Experience, Expertise and Innovation – MADE IN GERMANY 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101612 Designation Diagnostic cable VAS 5581/7 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 7: Intended Use
The product is suitable for testing the vehicle battery in the following vehicles: Audi A4 (2016 model) In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group... -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Adapter cable (2) USB stick with operating manual Design Product design: (1) Ground clip (2) Plug for vehicle battery (3) Plug for diagnostic box 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 9: Symbols And Connections
Check the VAS number to ensure that you are using a suitable adapter cable. Observe the operating manual! Serial number of the product Manufacturer part number Protection class II Disposal instruction Mark of conformity Vehicle manufacturer’s certification mark 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 10: Wiring Diagram
Max. 2000 m No limitation. Humidity Max. 80 % up to 31° C, Max. 85 % decreasing linearly to 50 % at 40° C Condensation not permitted. Maximum permissible relative humidity: 60 % in environments with corrosive gas/air. 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 11: Operation
Product components may produce sparks and electric arcs. • Do not use the product in potentially explosive atmospheres! CAUTION Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 12: Startup
Connect the ground clip to a conductive part of the vehicle body. Connect the plug to the disconnected socket on the vehicle battery. Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 13: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 33.VW.2210.1612_BA_V00_EN VAS 5581/7... -
Page 14: Help
Always include the serial number with any product queries. This number is found on the product. CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@car-connect.cc www.car-connect.cc 33.VW.2210.1612_BA_V00_EN VAS 5581/7... - Page 15 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 11 / 2020 33.VW.2210.1612_BA_V00_EN VAS 5581/7...
