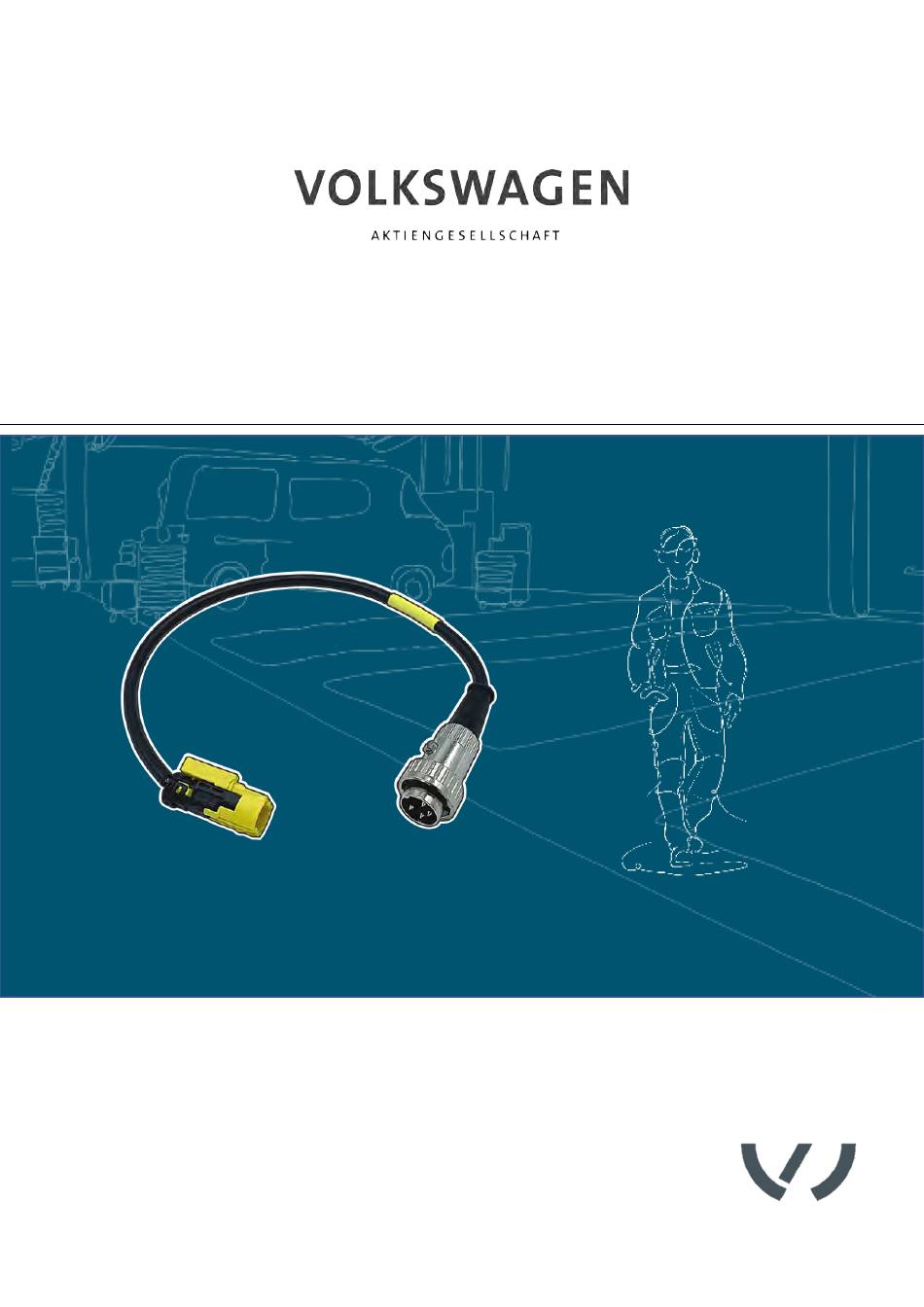

- Page 1 Operating manual L o w v o l t a g e a d a p t e r c a b l e V A S 5 0 5 6 / 3 1 32.VW.2210.0132_BA_V02_EN VAS 5056/31...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 3: Table Of Contents
Important safety instructions Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Cleaning Storage Disposal Maintenance HELP Warranty Customer service 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 4: Introduction
STODIA's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, STODIA GmbH is your dependable partner at every production stage, from prototyping to series production. 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22100132 Designation Low voltage adapter cable VAS 5056/31 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 7: Intended Use
Use only the plug connections on the vehicle that the manufacturer has specified in the guided fault finding. In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group... -
Page 8: Product Description
(1) Low voltage adapter cable (2) USB stick with operating manual Design Product design: (1) Socket for connecting to the vehicle (2) Plug for the airbag tester 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 9: Symbols And Connections
This label certifies that the product complies with the limits of GB/T 26572-2011 (“China- ROHS”). The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. Wiring diagram 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 10: Technical Data
Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31 °C, Max. 85% decreasing linearly to 50% at 40 °C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 11: Operation
Follow the safety instructions. 2. Connect the socket to the disconnected plug on the vehicle. 3. Connect the plug to airbag tester VAS 5056. You can now perform measurements in accordance with the guided fault finding. 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 12: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 32.VW.2210.0132_BA_V02_EN VAS 5056/31... -
Page 13: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. STODIA GmbH Battery and Diagnostics Technology Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5371 / 945 93 96-0 service@stodia.de www.stodia.de 32.VW.2210.0132_BA_V02_EN VAS 5056/31... - Page 14 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Version 01/2024 32.VW.2210.0132_BA_V02_EN VAS 5056/31...
