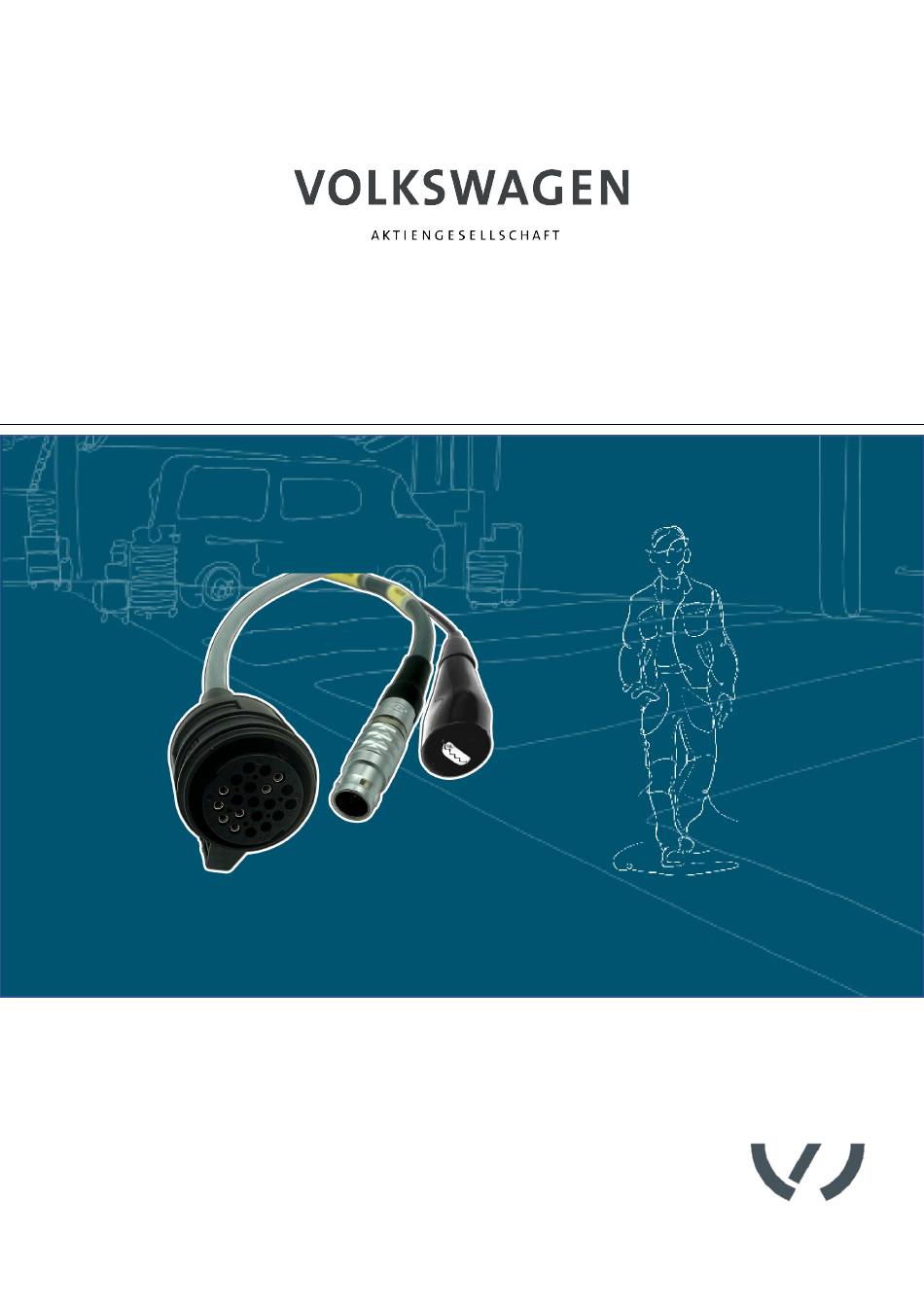

- Page 1 Operating manual D i a g n o s t i c c a b l e V A S 5 5 8 1 A / 1 2 33.VW.2210.1625_BA_V01_EN VAS 5581A/12...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 3: Table Of Contents
Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Detaching the plug connection for the diagnostic cable (20-pin) 15 Cleaning Storage and transportation Disposal Maintenance HELP Warranty Customer service 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 4: Introduction
With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. CAR-connect GmbH – Experience, Expertise and Innovation – MADE IN GERMANY 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101625 Designation Diagnostic cable VAS 5581A/12 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 7: Intended Use
• Porsche Taycan (2020 model) In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group Only qualified personnel may work with this product! -
Page 8: Product Description

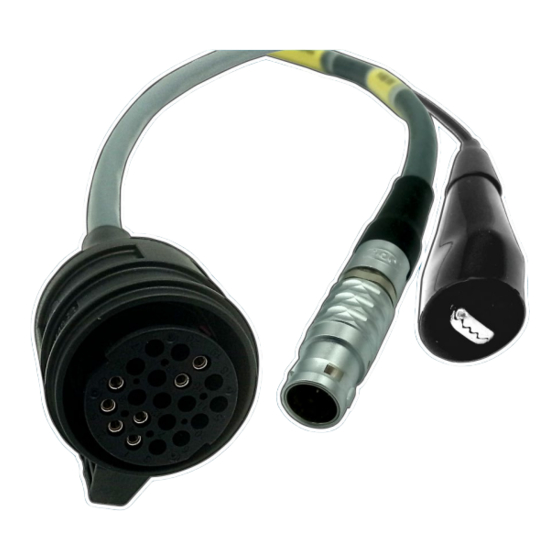

Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Diagnostic cable (2) USB stick with operating manual Design Product design: (1) Plug for traction battery (2) Plug for diagnostic box (3) Ground clip 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 9: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The seal of approval identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 10: Wiring Diagram
EN | Product description Wiring diagram 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 11: Technical Data
Max. 2000 m No limitation. Humidity Max. 80 % up to 31° C, Max. 85 % decreasing linearly to 50 % at 40° C Condensation not permitted. Maximum permissible relative humidity: 60 % in environments with corrosive gas/air. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 12: Operation
• Use the product only for the applications intended by the vehicle manufacturer! CAUTION Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 13: Startup
EN | Operation Startup Observe the safety instructions. Connect the ground clip to a conductive part of the vehicle body. Connect the plug to the disconnected socket on the traction battery. Lock the connection. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... - Page 14 EN | Operation Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12...
-
Page 15: Detaching The Plug Connections
Detaching the plug connection for the diagnostic cable (20-pin) The plug connections have a bayonet locking mechanism. To detach a plug connection: Twist the socket housing to unlock the connection. Pull the plug connection apart. The plug connection is now detached. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 16: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... -
Page 17: Help
Always include the serial number with any product queries. This number is found on the product. CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@car-connect.cc www.car-connect.cc 33.VW.2210.1625_BA_V01_EN VAS 5581A/12... - Page 18 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 03 / 2021 33.VW.2210.1625_BA_V01_EN VAS 5581A/12...
