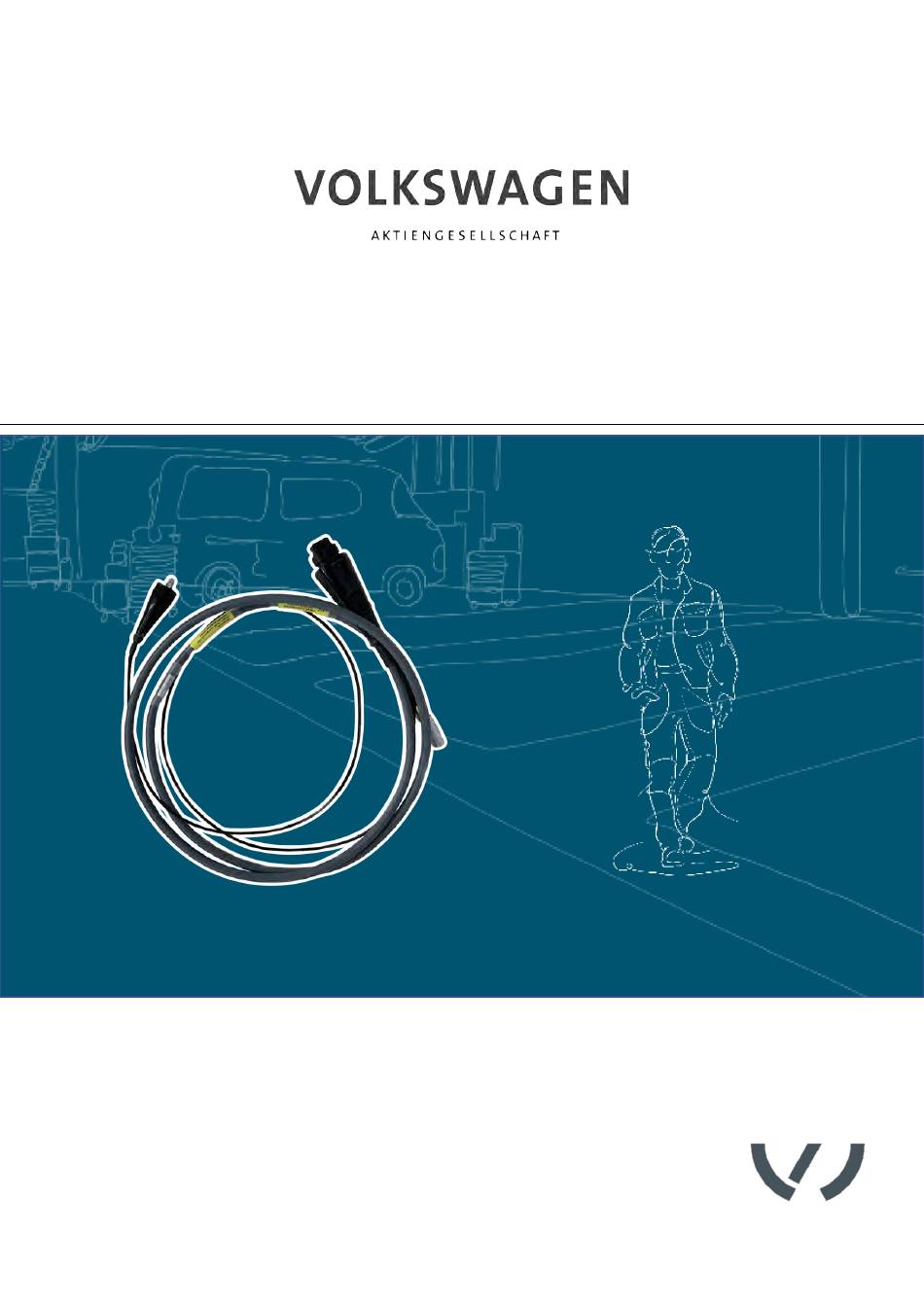

- Page 1 Operating manual D i a g n o s t i c c a b l e V A S 5 5 8 1 / 1 3 33.VW.2210.2698_BA_V01_EN VAS 5581/13...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 3: Table Of Contents
Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Cleaning Storage Disposal Maintenance HELP Warranty Customer service 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 4: Introduction
Stodia's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102698 Designation Diagnostic cable VAS 5581/13 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 7: Intended Use
The product is suitable for testing the 48 V battery in the following vehicles: Volkswagen Golf 8 In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group... -
Page 8: Product Description
Product description Scope of delivery Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Diagnostic cable (2) USB stick with operating manual 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 9: Design
EN | Product description Design Product design: (1) Ground clip (2) Plug for 48 V battery (3) Plug for diagnostic box 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 10: Symbols And Connections
The CE marking certifies that the product complies with all applicable European regulations and has been subjected to the prescribed conformity assessment procedure. The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 11: Wiring Diagram
-20°C to 60°C Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 12: Operation
• Use the product only for the applications intended by the vehicle manufacturer! CAUTION Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) Follow the safety instructions. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... - Page 13 Connect the ground clip to a conductive part of the vehicle body. Connect the plug to the disconnected socket on the 48 V battery. Lock the connection. Connect the plug to the diagnostic box. You can now perform measurements in accordance with the guided fault finding. 33.VW.2210.2698_BA_V01_EN VAS 5581/13...
-
Page 14: Detaching The Plug Connections
The plug connection has a locking mechanism. The procedure for detaching a plug connection is described below. To detach a plug connection: Pull back the lever to unlock the connection. Pull the plug connection apart. The plug connection is now detached. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 15: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 33.VW.2210.2698_BA_V01_EN VAS 5581/13... -
Page 16: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 33.VW.2210.2698_BA_V01_EN VAS 5581/13... - Page 17 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 12/2021 33.VW.2210.2698_BA_V01_EN VAS 5581/13...
