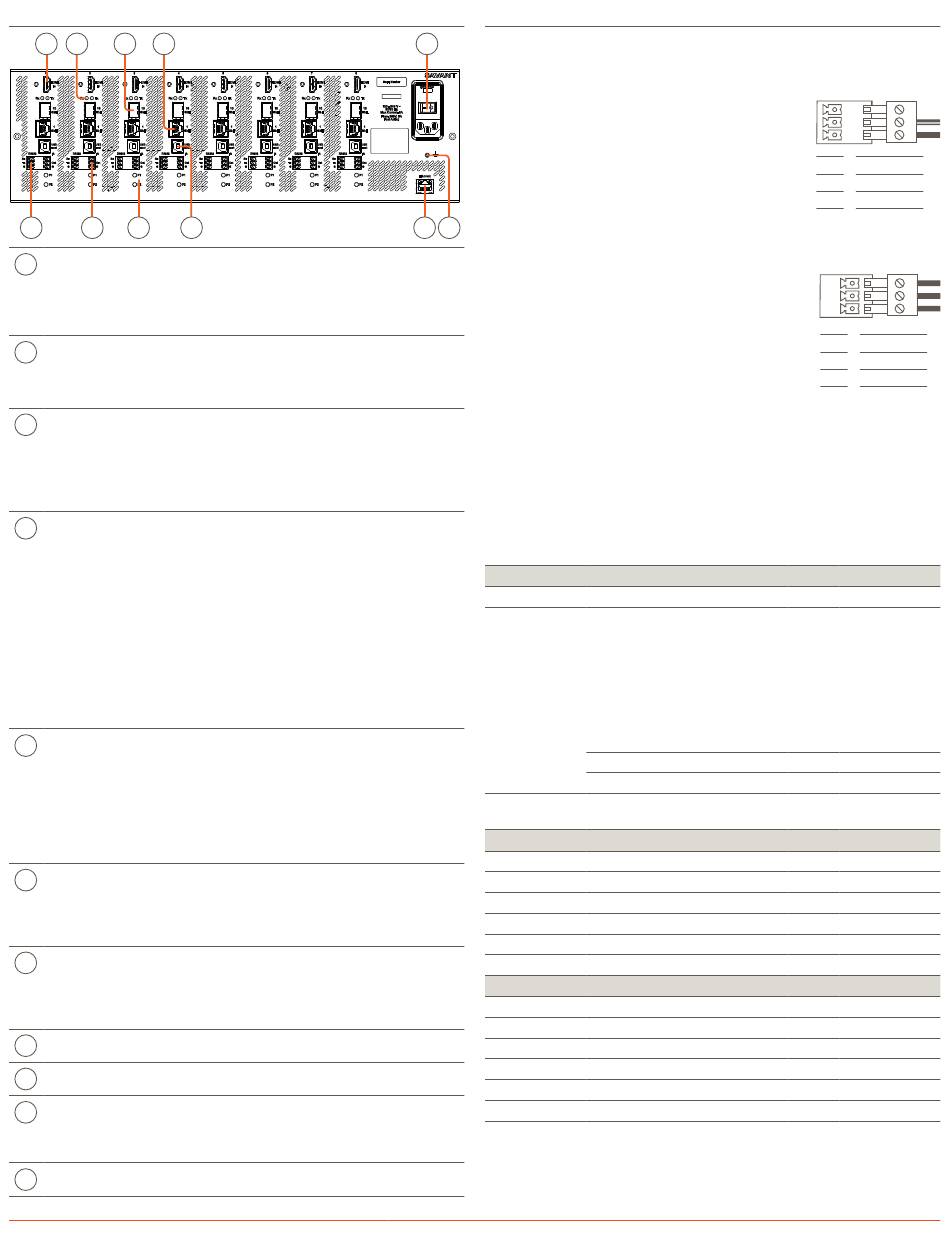

Rear Panel
A B C D
F G H
HDMI In 19-Pin Type A HDMI female digital audio/
A
video input.
Supports HDMI 2.0a
HDMI 2.0 compliant cable is required for 4K
content.
Rx/Tx LEDs Rx – Link Activity LED indicator for all data
B
(10 GbE) received on the 10G connection
Tx – Link Activity LED indicator for all data
transmitted from the 10G connection
10 Gigabit SFP+ Housing; Used for connectivity to the
C
Ethernet 10G Ethernet Network Switch.
IMPORTANT! For all 10G connections,
use only Savant certified fiber and fiber
connectors along with Savant certified
SFP+ modules.
1 Gigabit Ethernet 1G of reserved network data bandwidth.
D
Commonly used to connect any network
compliant device to transmit its data
onto the Ethernet network by sharing
the 10G network link. 8-Pin RJ-45 female
connection.
IMPORTANT NOTES:
–
–
Power Input 100-240V AC 5A 50/60Hz power input
E
Module module with On/Off switch.
I – Applies power to the device.
O – Removes power to the device.
NOTE: Includes a field replaceable 5A
250V Fast acting fuse. For replacement
information see the Replacing the Fuse
section below.
RS-232 RS232 – 3-pin Screw down plug-in
F
Control Port connection. Transmits and receives serial
data to and from serial controllable devices.
For pin-out information, refer to the RS-232
Wiring section below.
IR Control Port IR - 3-pin Screw down plug-in connection.
G
Transmits IR signals via an IR Flasher (5V
tolerant) to devices with an IR input or IR
receiver. For pin-out information, refer to
the IR Wiring section below.
Push Buttons Reserved for future use.
H
USB Host Reserved for future use.
I
Ethernet 8-Pin RJ-45 female connection. Used to
J
communicate with the Savant System Host.
Supports Audio Video Bridging (AVB)/Time
Sensitive Networking (TSN).
Grounding Chassis Ground (optional)
K
IP Video Input Transmitter Quick Reference Guide | 009-2219-01
Copyright © 2022 Savant Systems, Inc. | 220929
I
Do not connect these ports to a network
switch.
This is a courtesy port. It will not work
for all network functions. For example,
Spanning tree devices are not supported
by this port.
Wiring and Connections
The following is a description of connections that can be made to the
E
Audio/Video over IP Switch:
IR connections are made using a 3-pin
Control Connector supplied with the device. The
wire slips into the hole and locks with a screw
located at the top of the connector.
IMPORTANT: IR Wiring Precautions Ensure that
all IR emitters are within 15 feet (4.6 meters) from
the controller's location. Use of 3rd party blinking
IR emitters with Talk Back is not recommended.
These types of emitters can draw voltage away
J K
from the IR signal that can degrade IR performance.
RS-232 Wiring
Serial control connections are made using a 3-pin
Control Connector supplied with the device. The
wire slips into the hole and locks with a screw
located at the top of the connector.
SFP+ 10 GbE
Enhanced small form-factor pluggable connection. Use a Savant
certified SFP+ cable to connect the chassis to the 10G switch, or
Savant certified fiber and fiber connectors along with Savant certified
SFP+ modules.
Transport Distance
OM3 multi-mode Fiber
Supported Audio and Video Formats
Video
HDR Supported
Supported 640x480
Formats
720x480
720x576
800x600
1024x768
1280x720
1280x720
Dolby® Vision
1920x1080@120Hz requires da Vinci 10.2 or higher
1 = @24 Hz
2 = @25 Hz
Audio (Pass-through)
DTS®
DTS-X®
DTS-HD Master Audio™
DTS-HD (LBR)
DTS-HD (HRA)
DTS Digital Surround 96/24™
Audio (Down Mix)
DTS®
DTS-X®
DTS-HD Master Audio™
DTS-HD (LBR)
DTS-HD (HRA)
DTS Digital Surround 96/24™
2 of 3
PIN 1
PIN 2
PIN 3
PIN 1
PIN 2
PIN 3
1000ft (300 m)
1280x1024
5 5
1920x1080
5 1
1920x1080
4 3
1920x1080
5 4
1920x1080
5 5
1920x1200
4 5
3840x2160
5 1
3 = @30Hz 5 = @60Hz
4 = @50Hz
Dolby® Atmos
Dolby® TrueHD™
Dolby® Digital (AC-3)
Dolby® Digital Plus (E-AC-3)
Multi-Channel PCM
All HDMI Audio Formats
Dolby® TrueHD™
Dolby® Digital (AC-3)
Dolby® Digital Plus (E-AC-3)
Multi-Channel PCM
45 Perseverance Way, Hyannis, MA 02601
Savant.com
1
Out 2
G 3
Not Used
IR +
IR -
Rx 1
Tx 2
G
3
Receive
Transmit
Ground
3840x2160
1
3840x2160
2
3840x2160
3
3840x2160
4
3840x2160
5
4096x2160
3
4096x2160
5
