Savant PAV-VIMAP8S2 Series Quick Reference Manual page 3

Installation
The Savant Audio/Video over IP 8-Port / 4-port Transmitter chassis
can be mounted using the included rack mounting ears and hardware
in a 3U rack style enclosure and is compatible with all standard 19-inch
National Electrical Manufacturers Association (NEMA) rack mounts.
For more information see the Savant IP Video Deployment Guide on
the Savant Customer Community.

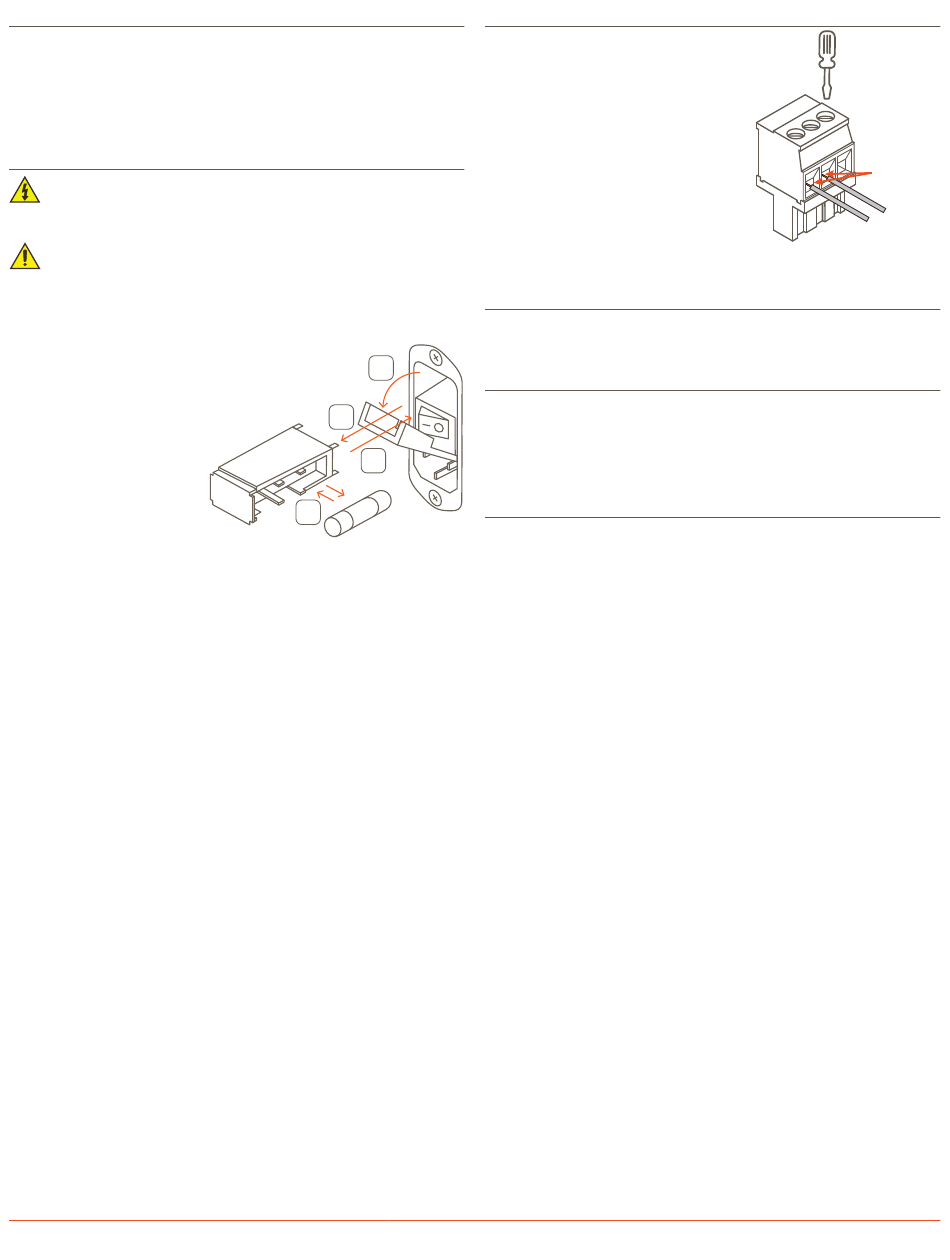

Replacing the Fuse
ELECTRIC SHOCK HAZARD: Prior to starting the process of
removing and replacing a fuse, remove the AC Power by unplugging
the power cord from the rear of the unit.
IMPORTANT: The orientation of the cartridge within the unit
and location of the fuse within the cartridge are crucial to proper
operation. Make note of the orientation of the cartridge and the fuse
location within the cartridge before removing.
1. Verify the power cord is unplugged from either the wall outlet or
the rear of the unit.
2. With a small flat blade
screwdriver or similar, pry
open and pivot down the
fuse holder cover.
3. Using that same
screwdriver, gently
loosen and pull the fuse
cartridge slowly out from
the unit. Make note of the
orientation of the fuse
cartridge as it is removed.
When re-Installing, it is
important that it be positioned the same way as it came out to
ensure proper operation. Refer to diagram below
TIP: Mark the chassis and fuse holder to ease the re-installation
process.
4. Remove the old fuse from the cartridge and discard. Place the new
fuse into the cartridge.
5. Place the cartridge part way into the receptacle being careful to
align it as defined in the diagram. Gently push the fuse cartridge
until it seats with the terminals at the rear of the slot. If resistance
is encountered, DO NOT apply more pressure. Stop pushing on the
cartridge, remove it, verify the orientation is correct, and repeat
step 5 until cartridge is seated.
IP Video Input Transmitter Quick Reference Guide | 009-2219-01
Copyright © 2022 Savant Systems, Inc. | 220929
2
3
5
4
3 of
3-Pin Screw Down Connections
When making connections, follow the
guidelines set below to ensure a safe and
secure connection.
1. With a small slotted screwdriver,
turn the screws on the connector
counterclockwise (CCW) until the
silver crimps open enough to slide a
wire into the square slots.
2. Strip back insulation on each wire to
1/4 inch and insert the stripped wire
into the proper connection.
3. Turn the screw clockwise (CW) until
the crimps tighten around each wire.
Gently tug on each wire a bit to verify
they are secure.
Network Requirements
For more information, see the Savant Device Networking Guidelines
on the Savant Customer Community.
Additional Information
Refer to the following documents located on the Savant Customer
Community for additional information.
– Savant IP Video Deployment Guide (009-1977-xx)
–
Savant IP Video Network Configuration Guide (009-1552-xx)
– Savant IP Audio Deployment Guide (009-1571-xx)
Optional Accessories (sold separately)
–
1m OM3 Fiber Optic Patch Cable (CBL-OM3MM1M-xx)
– 3m OM3 Fiber Optic Patch Cable (CBL-OM3MM3M-xx)
–
5m OM3 Fiber Optic Patch Cable (CBL-OM3MM5M-xx)
– Fiber Transceiver Module (CON-FSFPNG1-xx)
–
Duplex OM3 Indoor/Outdoor Plenum Rated Multi-Mode Fiber -
1000ft (CBL-F2500-00)
–
Fiber Termination Kit (FTK-F2000-xx)
– Fiber Test Kit (FTK-FTEST-xx)
3
< 1/8 inch of
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
bare wire
exposed
