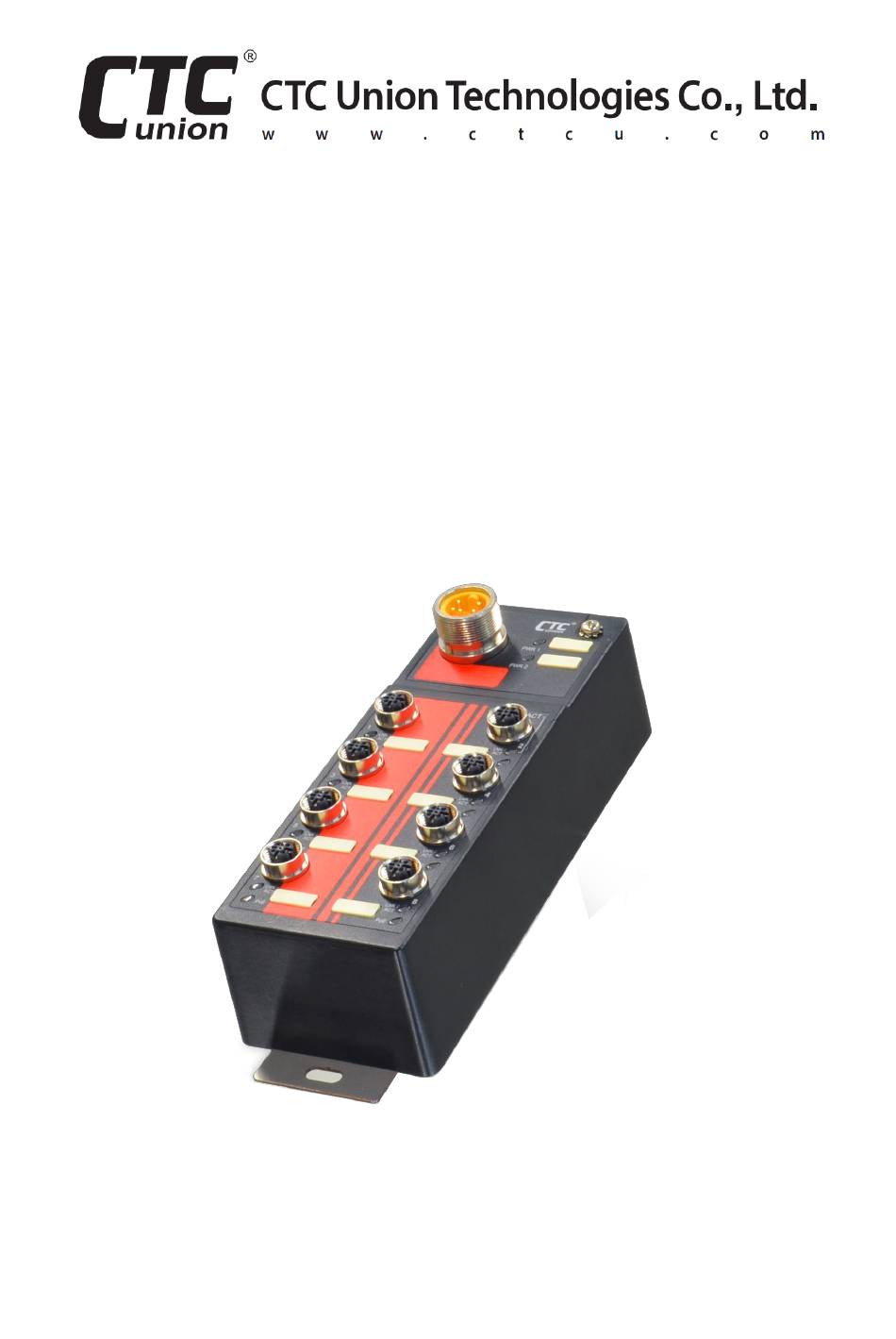

- Page 1 Quick Installation Guide ITP-800-8PH24 ITP-800-8PHE24 IP56 EN50155 8 x 10/100Base-TX with 8 x PoE+ Ethernet Switch (Hardened) sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 4 Table of Contents Introduction ................... 4 Package List .................. 4 Features ..................4 Specifications ................5 ..........................5 ETWORK NTERFACE ........................... 5 OWER UPPLY E) ....................... 5 OWER OVER THERNET ............................6 ECHANICAL ..........................6 NVIRONMENTAL ........................... 6 ERTIFICATIONS MTBF (MIL-HDBK-217) ........................6 Panel ....................
- Page 5 Introduction ITP-800-8PH(E)24 devices, designed for industrial grade applications, are unmanaged Fast Ethernet PoE+ switches. ITP-800-8PH(E)24 Ethernet switches provide 8 x 10/100Base-TX Fast Ethernet PoE+ ports that utilize M12 connectors to ensure tight and robust connections against environmental disturbances such as vibration and shock. ITP-800- 8PH(E)24 Series Ethernet switches also comply with EN50155 standard that covers strict demands on operating temperature, power input voltage, surge, ESD, vibration, and shock, thus making these switches suitable for...
- Page 6 Specifications Network Interface • Speed: 8 x 10/100Base-TX • Connector Type: M12 D-code (Female) • Support Auto-negotiation and MDI/MDI-X • Support 802.3x Flow Control • Full/Half Duplex • Data Processing: Store & Forward • Switching Fabric: 1.6Gbps • MAC Address Table: 1K •...
- Page 7 • Dimensions: 64 mm (D) x 71.4 mm (W) x 219 mm (H) • Installation: Wall mounting & DIN-Rail (Optional accessory) • Weight: 715 g Environmental • Operating Temperature: -10°C~60°C (ITP-800-8PH24), -40°C~75°C (ITP- 800-8PHE24) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications •...
- Page 8 Panel Figure 1. Front Panel Index No. Description Wall mounting holes Grounding screw M23 power input port Power port label Power LED M12 Ethernet ports Ethernet port LED PoE LED Ethernet port label...
- Page 9 PIN Assignment M12 Fast Ethernet Cable Male M12 Connector Model: CAB-M12DM4-RJ45 Figure 2. Fast Ethernet Cable Pin Assignment M12 Pin No. RJ-45 Pin No. Ethernet Pinout PoE Pinout NOTE: ITP-800-8PH(E)24 is a PSE device that can connect to PDs (Powered Devices) or non-PoE devices. However, it is NOT recommended to connect ITP-800-8PH(E)24 to another PSE device.
- Page 10 M12 Cable Connector Installation Before assembling M12 open cable, make sure you have the following M12 cable connector components (Model: M12D-M4 M12 D- Code Male) and open cable at hand. Male Contact Screw Nut O-Ring Housing Connector Assembly Steps: Step 1. Insert the screw nut, O-ring, and housing into the cable in the order shown in Figure 2 and keep them loose in this step.
- Page 11 Step 3. Tighten the connector in clockwise direction, making sure that the wires inside the connector are not twisted as the screwed housing is assembled. Figure 6. Tighten the Connector...
- Page 12 Earth Ground Connection An earth grounding connection hole is provided in the upper right- hand corner of the front panel with an earth ground sign next to it. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI).
- Page 13 Wall-Mounting Installation The PoE+ Ethernet Switch can be mounted on the wall or installed in DIN rail. The wall mount bracket has been attached to the device. Therefore, there is no need to install wall mount bracket (Figure 8). Figure 8. Wall Mounting When installing the DIN rail bracket (optional accessory), be sure to correctly align the orientation pin (Figure 9).
- Page 14 LED Indicators Color Status Description Lit if power 1 is connected and PWR1 Green active. Power is not connected. Lit if power 2 is connected and PWR2 Green active. Power is not connected. Lit when the LAN connected speed is 10M or 100M. Link/ Green Blinking...
- Page 15 Version Date Description 2019/9/26 Preliminary version 2020/12/25 Adjust format and layout.
