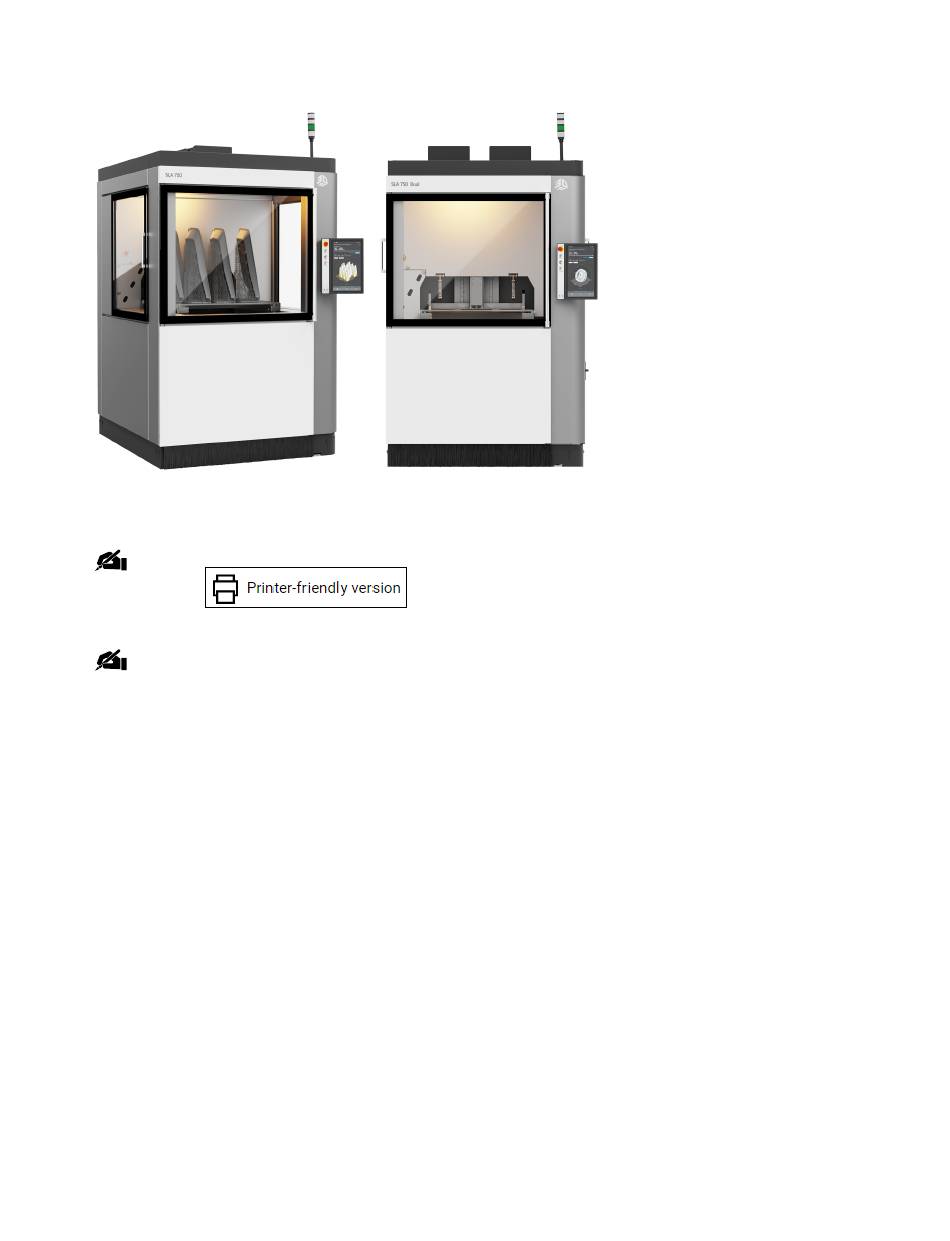

8/18/22, 10:50 AM
Руководство пользователя
SLA 750

NOTE: Use this page to print the User Guide as a whole. Scroll down to the bottom of the page and
click the
Mac) to print the document or save it as a PDF.
NOTE: NOTE: Please refer back to http://infocenter.3dsystems.com/sla-750-series/user-guide for
the most up-to-date User Guide.

ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526
Руководство пользователя
SLA 750 Dual
 button. On the page in the new tab, press ctrl+P (cmd+P on
S L A
Руководство
7 5 0   S e r i e s
пользователя
Rev. A, P/N 40-D150

Инструкции производителя

1/111

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLA 750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3D Systems SLA 750

Summary of Contents for 3D Systems SLA 750

  • Page 1 пользователя Rev. A, P/N 40-D150   Инструкции производителя SLA 750 SLA 750 Dual     NOTE: Use this page to print the User Guide as a whole. Scroll down to the bottom of the page and click the  button. On the page in the new tab, press ctrl+P (cmd+P on Mac) to print the document or save it as a PDF.
  • Page 2 SLA 750 30% faster than current SLA printers. The SLA 750 has the best combination of build size, speed, accuracy, resolution, part nish, and supports materials with industry leading mechanical performance that helps ensure: Your print is successful the rst time.
  • Page 3 The SLA 750 was designed with safety in mind; however, improper use and malfunctions can cause injury. To prevent unsafe operation, the SLA 750 automatically shuts down immediately if it detects an unsafe condition.
  • Page 4 Operators are trained to operate the system and to perform all the necessary tasks to print a part. Certi ed service personnel have completed the 3D Systems service training package and are certi ed to perform service tasks. Certi cation may occur at various levels and servicers should only perform tasks that they are authorized and certi ed to complete.
  • Page 5 Radiation: During normal operation, and with all panels installed, the SLA 750 is classi ed as a Class I (1) laser device . If any of the interlocks are defeated, the SLA 750 becomes a Class IV (4) device . Eye damage can occur by looking directly into the beam or by viewing any type of beam...
  • Page 6 Руководство пользователя Emergency Stop All SLA 750 printers have (3) Emergency Stop (E-Stop) buttons on the left-side of the UI panel, inside the print chamber and laser assembly. They are bright red with a yellow background. Pressing one cuts power to all moving axes, closes the laser shutter, and puts the laser in safe mode.
  • Page 7 A SLA 750 printer will illuminate a solid blue color when the laser is enabled. A SLA 750 Dual will illuminate a bright amber color when the right laser is enabled.  A SLA 750 Dual will illuminate a bright white color when the two lasers are enabled. When the laser(s) are not enabled, the LED will be dimmed.
  • Page 8 8/18/22, 10:50 AM Руководство пользователя Inside of printer Inside of laser assembly     ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 8/111...
  • Page 9 8/18/22, 10:50 AM Руководство пользователя Схема размещения табличек LASER SAFETY WARNING LABELS Laser safety warning labels for the SLA 750 and SLA Vat are located at system locations which are indicated below. Кол- во Товар Описание Метка DANGER - CLASS IV (4)
  • Page 10 8/18/22, 10:50 AM Руководство пользователя Кол- во Товар Описание Метка WARNING - PINCH POINT HAZARD. KEEP HANDS CLEAR. WARNING - BURN HAZARD. HOT SURFACE INSIDE, PLEASE ALLOW TO COOL BEFORE SERVICING. WARNING - RADIATION MAX LASER OUTPUT CLASS I (1) LASER ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 10/111...
  • Page 11 8/18/22, 10:50 AM Руководство пользователя Кол- во Товар Описание Метка SLA 750 PRINTER PRODUCT LABEL (DATA PLATE)                 SLA 750 Dual PRINTER PRODUCT LABEL (DATA PLATE) SLA VAT PRODUCT LABEL (DATA PLATE) ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 11/111...
  • Page 12 8/18/22, 10:50 AM Руководство пользователя   Outside of SLA 750     Front of SLA Vat   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 12/111...
  • Page 13 8/18/22, 10:50 AM Руководство пользователя Inside of printer Inside of printer     ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 13/111...
  • Page 14 Consult the manufacturer’s Material Safety Data Sheet / Safety Data Sheet (MSDS/SDS) for information on speci c materials. For further information on this and related topics, consult the 3D Systems – Materials website at http://infocenter.3dsystems.com/materials/material-library/sla  ...
  • Page 15 Protect print material from sunlight and ambient room light. Print material may be stored in material carts with the lid securely fastened. Material for the SLA 750 is composed of reactive monomers and oligomers. If improperly stored or handled, these compositions may undergo polymerization resulting in the emission of heat.
  • Page 16 In-service life of the print materials is de ned as the useful life of the material after having been poured into the SLA 750 Vat. The in-service life of the SLA 750 material greatly varies depending on material type, usage and environmental conditions.
  • Page 17 8/18/22, 10:50 AM Руководство пользователя  NOTE: Inspect your parts after curing in the PostCure 1050 to ensure they are fully solidi ed. Part surface tackiness, visible or discernible areas of liquid resin indicate the part is not fully cured .   MATERIAL SPILL CONTAINMENT Your company has the responsibility to de ne what constitutes a major spill.
  • Page 18 8/18/22, 10:50 AM Руководство пользователя Если материал попадает в глаза при ношении контактных линз, незамедлительно промойте глаза водой. Убедитесь, что при промывании контактные линзы были смыты с глаз. Защитите глаза от воздействия света и незамедлительно обратитесь к врачу. Утилизируйте загрязненные жидким материалом...
  • Page 19 8/18/22, 10:50 AM Руководство пользователя Условия хранения Please refer to the SLA 750 Series Facility Requirements Guide for environmental conditions found here. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 19/111...
  • Page 20 8/18/22, 10:50 AM Руководство пользователя Hardware Overview Production Printer Printer - Outside View Removable Laser Assembly.  Refer to the section, “Laser Assembly” for further information. Light Stack: The light stack consists of four lights: red, yellow, green and white. The lights re ect what state the machine is in at any given time.
  • Page 21 RDM (Resin Delivery Module): The RDM is a gravity fed system. Master Power Shut-of switch:  The SLA 750 has a master circuit breaker switch located on the electrical cabinet module on the right side of the machine.
  • Page 22 8/18/22, 10:50 AM Руководство пользователя Printer - Inside View E-Stop: The E-Stop immediately disables all motion controls and the laser, rendering them safe. After being pressed, it remains in the closed state until it is manually returned to the open state by pulling the red knob and turning it clockwise.
  • Page 23 8/18/22, 10:50 AM Руководство пользователя Recoater: The recoater system has a Zephyr™ applicator with four axes of motion. The y-axis moves the recoater from the front to the rear. Other motion systems are utilized to ensure the exact amount of material is deposited, resulting in the high part accuracy produced on this system. The recoater system’s liquid level sensor maps the material surface by measuring the distance to the material surface along the length of the print area.
  • Page 24 8/18/22, 10:50 AM Руководство пользователя SLA Vat   The SLA Vat manages all subsystems related to the print material. It can hold up to 578 liters (152.7 U.S. gal) of print material. There are two different sizes available which are listed below. The maximum print volume is 750 x 750 x 550 mm (29.5 x 29.5 x 21.65 in). There are three models of the SLA Vat: NAME MAXIMUM BUILD VOLUME...
  • Page 25 8/18/22, 10:50 AM Руководство пользователя Front of Vat Back of Vat   Vat Lid: The lid is used when storing an vat o ine. It prevents contaminants from getting into the material basin when the Vat is being stored o ine. Vat Basin: The inside of the vat contains the basin where the material used for printing is stored.
  • Page 26 28 °C (+/- 3 °C). Stand-by Mode In this mode, the vat is o ine and operates independently from the SLA 750. When the vat is plugged into a standard wall socket the module self-regulates the temperature keeping it stable and at operating temperature.
  • Page 27 8/18/22, 10:50 AM Руководство пользователя Light Stack On, Solid > E-Stop is pressed On, Flashing > Fault condition exists, resulting in an aborted print job. Off > Normal operating condition On, Solid > Printer is being serviced On, Flashing > Use warning or alert Off >...
  • Page 28 8/18/22, 10:50 AM Руководство пользователя Transfer Cart The transfer cart is an optional accessory. The transfer cart allows you to easily remove a large or heavy print platform from the printer. It is then wheeled to the nishing area where supports are removed from the printed part and cleaned before it is cured. Безопасность...
  • Page 29 8/18/22, 10:50 AM Руководство пользователя Casters: There are brakes and locking pins on the two rear casters of the transfer cart.  The brakes are labeled “ON/OFF” to indicate which way to push the lever to release or engage the brake. Engage the brake any time the Transfer Cart is to stay stationary.
  • Page 30 Формат входящего файла Все типы 3D-моделей для 3D Sprint Electrical Requirements for 200-240 VAC, 1- Ph, 50/60Hz, 24A (SLA 750) Printer 200-240 VAC, 1- Ph, 50/60Hz, 30A (SLA 750 Dual) MAINS supply voltage + 10% uctuations Peak Operating Current Подключение к сети...
  • Page 31 8/18/22, 10:50 AM Руководство пользователя User Interface Overview Статус The Status screen displays important real-time information about the printer. Unlock Door: Pressing this button will toggle the doors between Lock and Unlock positions. Chamber Lights: Turn on/off chamber lights. Shutter Icon: Indicates if the laser shutter is either open or closed. Status: Displays the printers current status.
  • Page 32 8/18/22, 10:50 AM Руководство пользователя Activity Log: Displays what the printer has been doing. Estimated Build Time: Build time remaining. Build Percentage Bar: Percentage of build complete. Delay Start Time: Set a desired future build. Start/Pause/Stop:  Scale Factor: Adjust the build size in X/Y by increasing or decreasing scale factors. Material: Current Material loaded in vat.
  • Page 33 8/18/22, 10:50 AM Руководство пользователя Очередь The Print Queue screen displays the current jobs waiting to be processed. Queue Navigation Icons: - Moves the selected job to the top of the list - Moves the selected job up one position - Moves the selected job down one position - Moves the selected job to the bottom of the list - Deletes selected job...
  • Page 34 8/18/22, 10:50 AM Руководство пользователя - Play/Start job. Completed Jobs: - Complete job history. Status: End status of the job. Completed or aborted. Completed: Time/Date of aborted or nished job. Total Build Time: Total time spent building a job.  - Job information details Обзор...
  • Page 35 8/18/22, 10:50 AM Руководство пользователя Settings The Settings Screen allows you to navigate to the settings screens for various components of the printer. General: Network:  Users: Информация о принтере (Printer Info) Usage Log   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 35/111...
  • Page 36 8/18/22, 10:50 AM Руководство пользователя Общая информация Display: Change the delay before the screensaver activates. Language: Change the language displayed on the UI. Out: Only displayed when a remote session is in progress. Date & Time: Adjust date and time. Restart: Restarts the computer.
  • Page 37 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 37/111...
  • Page 38 8/18/22, 10:50 AM Руководство пользователя Network The Network Settings Screen allows the user to view the values related to the system network. DHCP: Switch the Dynamic Host Con guration Protocol (DHCP) on or off. Address: View the MAC Address for the system. Address: View the IP address for the system.
  • Page 39 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 39/111...
  • Page 40 8/18/22, 10:50 AM Руководство пользователя Users Login Preference: Require users to login with a passcode. Enable Require Passcode for On Local Printer UI and or Remote Connections. Allow Remote Connections: Active Users: Displays the active users for Admin and Standard users. Add User: Create new Admin Users with an assigned passcode.
  • Page 41 8/18/22, 10:50 AM Руководство пользователя Assigning users and access levels Assigning users and access levels 1. From the UI, select Settings from the bottom. 2. Select Users screen. Require passcode -  Allow Remote Connections -  Active Users Admin Active Users - Standard Users   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 41/111...
  • Page 42 8/18/22, 10:50 AM Руководство пользователя Информация о принтере (Printer Info) Here you will nd the following current printers information: Printer Name: Printer Model: Серийный номер: Release Version: License:     ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 42/111...
  • Page 43 Jobs: Displays total number of failed jobs on printer Aborted Jobs: Displays total number of aborted jobs on printer View User Manual: Access the SLA 750 User Guide. Export Logs: Export the printers log information to a ash drive or the printers hard drive.  ...
  • Page 44 8/18/22, 10:50 AM Руководство пользователя Elevator & Recoater   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 44/111...
  • Page 45 8/18/22, 10:50 AM Руководство пользователя Elevator Current Position:  Shows the current position of the elevator relative to the home position. Move To: Move to distance fom home (zero). Move Increments: Set speci ed lengths when manually moving the elevator. Velocity: Speci es the elevator speed, in inches per second (ips), during manual motion. The default is 1.0 ips.
  • Page 46 8/18/22, 10:50 AM Руководство пользователя Stir Vat Stir time: Amount of time to perform the stir function. Set this value inside this box. Stir Depth: Distance to lower the elevator when stirring. Set this value inside this box. Stir:  Pressing this button causes the system to mix the material by moving the elevator up and down according to the settings entered.
  • Page 47 8/18/22, 10:50 AM Руководство пользователя     ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 47/111...
  • Page 48 8/18/22, 10:50 AM Руководство пользователя Setting the print platform start position Setting the Start Position The Start Position is the position of the print platform when the machine is set up for optimal printing success. The start position will need to be set when the printer is rst set up or when any of the following conditions exist: The top of the print platform is completely/partially submerged (See Figure A).
  • Page 49 8/18/22, 10:50 AM Руководство пользователя Visual determine if the print platform is either just above or just below the resin level. Tap on the Move Increment box (4) icon under the Elevator section. Enter either a value of ± 0.05 in the Move Increment (4) box and tap Move (5) until the print platform and resin level are at the optimal position (See Figure B).
  • Page 50 8/18/22, 10:50 AM Руководство пользователя   NOTE: If the Start Position is not set, the elevator will move to the original default Start Position during printing. Any time the print platform is removed and reinstalled, it is advised that Move to Start be selected to make sure that all settings have been retained for optimal printing.
  • Page 51 8/18/22, 10:50 AM Руководство пользователя To set the Drain Position: From the UI, tap on Elevator & Recoater (1) near the bottom tray and tap on More Settings. Tap on the Move Increment box (2) icon under the Elevator section. Enter a value of 3" inches greater than the Start Position in the Move Increment (3) box and tap Move.
  • Page 52 8/18/22, 10:50 AM Руководство пользователя Setting platform o oad position Setting the o oad position will be dependent on two factors. Using an Transfer Cart to remove the print platform. Manually o oading the print platform by hand.   Setting the O oad Position will be determined by the Drain Position value.
  • Page 53 8/18/22, 10:50 AM Руководство пользователя   Manually O oading Manually o oading a build platform by hand does not require the o oad position to be as high if the Transfer Cart is being used. A comfortable build platform height position for removal is 4" above the Drain Position.
  • Page 54 8/18/22, 10:50 AM Руководство пользователя Лазер   Laser Emission: Allows you to manually turn the laser on or off. When you start a build the laser automatically turns on. Shutter: Switch the laser beam shutter between open and closed. Spot: Toggles the laser beam spot size between large and small. Set Laser Power: Opens dialog to set laser power in milliwatt.
  • Page 55 8/18/22, 10:50 AM Руководство пользователя Move Increment: De nes the distance increment when moving the laser beam with the arrow buttons. Move to Rest: Moves the laser beam to rest position. Check Laser: Checks the laser power and returns a value based on the laser power setting. FAD Power: Shows laser beam in mW (milliwatts).
  • Page 56 8/18/22, 10:50 AM Руководство пользователя Материал   Displays current material type Displays Material Batch ID # Displays if the Bottle is Full or Empty Displays Vat Serial # Material Temperature:  Current material temperature. Set To: Change material temperature in vat. Build Temperature: Current build chamber temperature. Set To: Change temperature in build chamber.
  • Page 57 8/18/22, 10:50 AM Руководство пользователя Leveling the Material Leveling the Material must be performed anytime a clean build platform is installed. 1. From the UI, tap on Elevator & Recoater (1) near the bottom tray. Select Level Material (2) icon under the Stir Vat section. 3.
  • Page 58 8/18/22, 10:50 AM Руководство пользователя 4. Below is a status screenshot of the leveling process. You may Stop this process at anytime. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 58/111...
  • Page 59 8/18/22, 10:50 AM Руководство пользователя 5. During the leveling process, the printer will determine if there is enough material present. If there is not enough material, the printer will automatically add material. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 59/111...
  • Page 60 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 60/111...
  • Page 61 8/18/22, 10:50 AM Руководство пользователя Removing bubbles Removing Bubbles if bubbles appear in the material, they must be removed prior to starting a print. Follow these steps to remove the bubbles: From the UI, tap on Elevator & Recoater (1) near the bottom tray and tap on More Settings.
  • Page 62 8/18/22, 10:50 AM Руководство пользователя Figure A - Before bubble removal Figure B - After bubble removal         ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 62/111...
  • Page 63 8/18/22, 10:50 AM Руководство пользователя Starting a Build Включение принтера Включение принтера Con rm power plug is connected to outlet. The power switch is located on the right side of the printer. Turn the power switch to the "I" position to turn the printer on. Note: A 60 second delay on power cycling is required for the printer to fully reset.
  • Page 64 8/18/22, 10:50 AM Руководство пользователя Connect the Printer to the Internet Подключите принтер к Интернету 1. Plug the printers Ethernet cable into the Ethernet outlet. ПРИМЕЧАНИЕ. Используйте кабель Ethernet, который поставлялся вместе с принтером, так как его работоспособность была проверена. В качестве альтернативы к порту Ethernet можно...
  • Page 65 8/18/22, 10:50 AM Руководство пользователя DHCP - a network protocol that enables a server to automatically assign an IP address to a computer from a de ned range of numbers (i.e., a scope) con gured for a given network. Uncheck this box to enable editing of the IP Address, Subnet Mask, Gateway, and DNS Servers.
  • Page 66 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 66/111...
  • Page 67 8/18/22, 10:50 AM Руководство пользователя Installing 3D Sprint 3D Sprint™ is the 3D Systems’ software application used for preparing CAD models to be printed on an SLA printer. It is installed on a standalone computer which is provided by the customer. Double-click the 3D Sprint icon on your computer/ 3D Sprint™...
  • Page 68 8/18/22, 10:50 AM Руководство пользователя 5. Select either a Custom style set or a Standard style set (5). . Click Apply when complete (6). Select File icon to import le from local source or drag in drop into 3D Sprint (7). Select or enter CAD Import Options and select (8).
  • Page 69 8/18/22, 10:50 AM Руководство пользователя 9. Select Smart Support icon (9). 10. Select Create (10). ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 69/111...
  • Page 70 8/18/22, 10:50 AM Руководство пользователя  Note: A warning message will display if supports are not created. 11. Save le to either a ash drive or your computers hard drive. 12. Select Add to Queue (13). 13. Change Job Name (if needed) and select Add to Queue (14).
  • Page 71 8/18/22, 10:50 AM Руководство пользователя Installing the print platform From the UI, tap on Elevator & Recoater (1) near the bottom tray. Select Move to O oad (2) icon under the Elevator section. This will raise the elevator forks out of the vat. Once elevator forks have moved to the o oad position, disable the interlocks to open front door by tapping the Door...
  • Page 72 8/18/22, 10:50 AM Руководство пользователя 7. Slowly slide the platform to the far end of the forks. . Con rm platform corners are seated inside of the fork brackets. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 72/111...
  • Page 73 8/18/22, 10:50 AM Руководство пользователя 9. Close front door. NOTE: When installing a build platform, always perform a leveling material process.   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 73/111...
  • Page 74 8/18/22, 10:50 AM Руководство пользователя Adding material cartridge The below message will appear when the material bottle is empty. 1. Remove empty bottle by pushing the release button at the bottom of the bottle tray. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 74/111...
  • Page 75 8/18/22, 10:50 AM Руководство пользователя 2. Tilt bottle tray away from printer and remove empty bottle. 3. Remove cap from new material bottle. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 75/111...
  • Page 76 8/18/22, 10:50 AM Руководство пользователя 4. Using a small awl or equivalent tool and hammer, pierce a hole into the bottle vent ori ce. 5. Place bottle into tray. . Loosely replace bottle cap. Do not tighten. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 76/111...
  • Page 77 8/18/22, 10:50 AM Руководство пользователя 7. Push bottle tray back into printer.   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 77/111...
  • Page 78 8/18/22, 10:50 AM Руководство пользователя Select Job From the UI, open the Queue menu. Con rm Job is at the top of the list in the Pending Job section. If job is not at the top of the list, tab and highlight job and tap the ...
  • Page 79 8/18/22, 10:50 AM Руководство пользователя Editing a print Editing Recoating Style Settings Go to the Status tab (if accessing while printing),  or go to queue tab (if accessing while not printing). Click the info icon next to the job name You will see two tabs at the top of the screen saying “Overview”...
  • Page 80 8/18/22, 10:50 AM Руководство пользователя Setting up a delayed start Select Delay Start Time from the Status Home page and set a future printing date and time.   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 80/111...
  • Page 81 8/18/22, 10:50 AM Руководство пользователя Using the Transfer cart 1. Once the print has completed, the build platform will raise to the oad position.  2. Open the top door. 3. Raise or lower the resin catch tray so the tray clears the crossbar and travels below the build platform without obstruction.
  • Page 82 8/18/22, 10:50 AM Руководство пользователя 5. Raise the catch tray a few inches until the build platform is a few inches above the build forks. . Slowly back the build platform out of the printer.   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 82/111...
  • Page 83 The recoater, which contacts the material, can be removed from the SLA 750. The recoater should be kept with the vat so that when the material is changed, the recoater remains with the material that it has been in contact with.
  • Page 84 8/18/22, 10:50 AM Руководство пользователя Removing the recoater 1. From the UI, tap on Elevator & Recoater near the bottom tray. 2. Select Move to Home icon under the Recoater section. 3. Once recoater has moved to the home position, disable the interlocks to open front door by tapping the Door slider icon.
  • Page 85 8/18/22, 10:50 AM Руководство пользователя 4. Put on a pair of Nitrile gloves to avoid material contact. 5. Remove the recoater cover by pulling straight up. Set cover to the side on a clean surface. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 85/111...
  • Page 86 8/18/22, 10:50 AM Руководство пользователя . Turn each of the two locking levers 90 degrees to the open position. Levers are located on either end of the applicator housing. 7. Grab onto the two recoater handles and gently pull straight up. A slight wiggle may be required to unseat the recoater.
  • Page 87 8/18/22, 10:50 AM Руководство пользователя . Place on a clean dry surface. Wipe and clean any material that may be present on the recoater. Installing the recoater 1. Install the recoater in reverse order from the removal process. 2. Replace the (2) belt drive covers.  ...
  • Page 88 8/18/22, 10:50 AM Руководство пользователя Calibrating the recoating blade Prerequisites To avoid damage to the recoater cover during installation and removal, remove the (2) side belt drive covers from the left and right side of chamber by lifting up and away.  ...
  • Page 89 8/18/22, 10:50 AM Руководство пользователя Calibrating the Recoater Blade Calibrating the recoater blade is required anytime the recoater blade has been removed and replaced.  From the UI, tap on Elevator & Recoater near the bottom tray. Select Calibrate icon. 3. Select Run Calibration Sequence and select Continue.
  • Page 90 8/18/22, 10:50 AM Руководство пользователя 4. A message window will appear that displays the progress of the calibration. You may Dismiss at anytime during the calibration. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 90/111...
  • Page 91 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 91/111...
  • Page 92 8/18/22, 10:50 AM Руководство пользователя Material Vat Removal From the Material menu, select More settings to display Eject Vat icon. 1. Select Eject Vat icon from bottom left corner of UI. 2. Select Eject Vat from pop-up window, or cancel. 2.
  • Page 93 8/18/22, 10:50 AM Руководство пользователя Perform the following steps before selecting Con rm Removal icon. 4. Open both the top and bottom printer door. 5. Disconnect the power supply and data cable from the front of the vat. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 93/111...
  • Page 94 8/18/22, 10:50 AM Руководство пользователя . Remove, clean and store the recoater blade. See Recoater Installation and Removal for instructions. 7. Open either side door and wipe clean any material that may be present on the displacer. . Lift displacer straight up off guide pins and remove from printer. 9.
  • Page 95 8/18/22, 10:50 AM Руководство пользователя 10. Slowly and carefully pull the vat out of printer. 11. Select Con rm Removal from UI. Material Vat Installation 1. From the UI, select Insert Vat. 1.png 2. Perform the following steps before selecting All Steps Complete.
  • Page 96 8/18/22, 10:50 AM Руководство пользователя Требования к системе и настройка Remote Access 1. From the UI, select Settings>Users 2. Select Remote Connections check box. 3. Select Add User from either Active Users or Standard Users. 4. Go to to any web browser and enter IP address of printer followed by ":333" ( ie. https://xx.xx.xx.xxx:333/)  ...
  • Page 97 8/18/22, 10:50 AM Руководство пользователя 3D Connect Служба 3D Connect доступна для этого принтера. Более 3D Connect™ подробную информацию см. по ссылке ниже: https://www.3dsystems.com/software/3d-connect   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 97/111...
  • Page 98 8/18/22, 10:50 AM Руководство пользователя Профилактическое обслуживание Recoating blade Очистка The recoater blade will need to be cleaned periodically. Remove the recoater blade (see Recoater Installation and Removal section in User Guide) and wipe it off using a paper towel soaked with isopropyl alcohol. Be careful not to contaminate the material in the vat with the isopropyl alcohol. Be sure to wear nitrile gloves when handling the recoater blade.
  • Page 99 .  Repeat steps until ideal resin level is achieved.       Required Power Cycling We advise to fully power cycle your SLA 750 printer once every two weeks to prevent rmware and hardware errors. Follow the Printer Shutdown procedure for instructions. ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526...
  • Page 100 8/18/22, 10:50 AM Руководство пользователя Отключение принтера If you do not plan on operating the system on a regular basis and want to shut it down for an extended period of time, power off the UI and turn off the main power disconnect. Settings >...
  • Page 101 8/18/22, 10:50 AM Руководство пользователя The power switch is located on the right side of the printer. Turn the power switch to the "O" position to turn the printer off. Note: A one minute delay on power cycling is required for the printer to fully reset. "On"...
  • Page 102 8/18/22, 10:50 AM Руководство пользователя   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 102/111...
  • Page 103 8/18/22, 10:50 AM Руководство пользователя Поиск и устранение неисправностей Summary Recovery Build Stops with no Warning. Power Cycle + Resume Print feature.  Y Motor Stopping during Recoater Calibration.  Power Cycle the System. This is a known issue with using the Home Function before calibration.
  • Page 104 8/18/22, 10:50 AM Руководство пользователя Summary Recovery No error shown on the UI for pro ling failure at Power Cycle the System.  the Start of or during a build.  Low power warning when starting prints Power cycle the System off, wait 1 minute, sometimes after restarting the machine. ...
  • Page 105 8/18/22, 10:50 AM Руководство пользователя Opening a Printer or Material Support Case To open a Printer or Material Support Case, please click on the following link.  http://infocenter.3dsystems.com/product-library/3d-systems-customer-support-resources/3d-systems- printer-and-materials-service-support/opening   ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 105/111...
  • Page 106 SLA 750 printer service procedures must be performed only by a 3D Systems-certi ed service technician unless this guide explicitly states otherwise. If your 3D printer system needs service, contact 3D Systems Technical Support at the following numbers: Americas Toll Free (U.S./Canada)
  • Page 107 8/18/22, 10:50 AM Руководство пользователя Декларация о соответствии нормам ЕС SLA 750 and SLA Dual ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 107/111...
  • Page 108 8/18/22, 10:50 AM Руководство пользователя SLA Vat ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 108/111...
  • Page 109 8/18/22, 10:50 AM Руководство пользователя ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 109/111...
  • Page 110 Copyright © 2022 3D Systems, Inc. All rights reserved. Subject to change without notice. This document is copyrighted and contains proprietary information that is the property of 3D Systems, Inc. The licensed user, in the name of whom this document is registered (the “Licensed User”) does not have the right to copy, reproduce, or translate this document in any way or to any media without the prior written consent of 3D Systems, Inc.
  • Page 111 8/18/22, 10:50 AM Руководство пользователя ru.infocenter.3dsystems.com/sla-750-series/print/book/export/html/526 111/111...
