KI Instruct Teacher Pedestal Desk Assembly Instructions Manual

Assembly Instructions
Instruct Teacher Pedestal Desk
®
October 2024
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Note: Four plate-mounted casters
and a small anti-tip caster are
provided for installation to the
base of the pedestal. The plate
mounted casters are installed in
the four corners. The small caster
will fasten to the lower drawer
bracket.

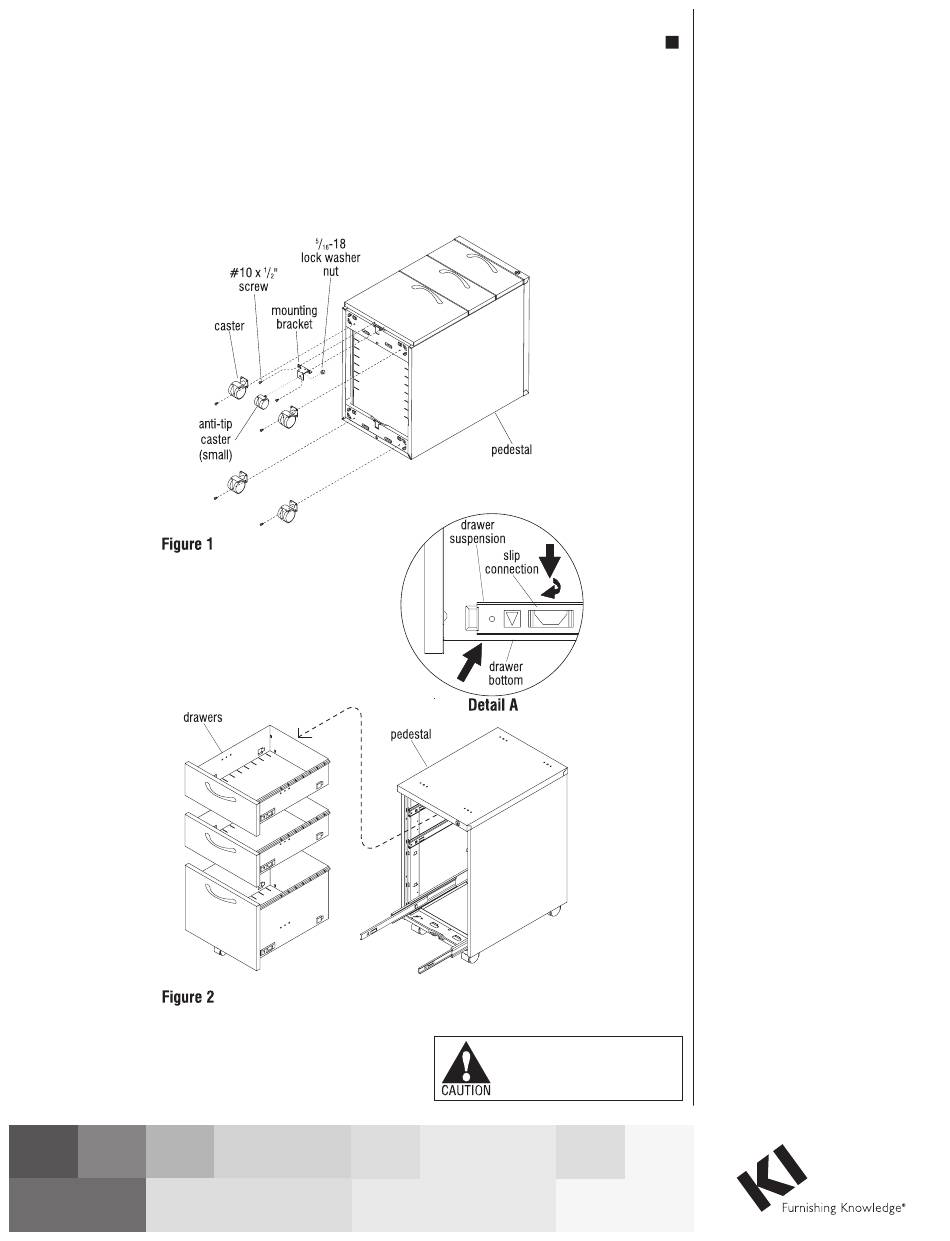

1. Carefully lay pedestal onto a soft
protective surface, on it's
back-side as illustrated (Figure 1).
2. Slide each caster plate to nest
into the formed tabs under the
appropriate corner of the pedestal.
Properly nested, a single
mounting hole in the base of each
corner caster will align with a
pre-drill hole in the underside of
the pedestal. Secure each caster
to the underside of the pedestal
with one #10 x / " screw
1
2
(Figure 1).
3. Extend the bottom drawer of the
pedestal out to expose the center
caster mount. Fasten the anti-tip
caster to the drawer bracket and
secure firmly in place with the
/ -18 lock washer nut.
5
16
Note: To ease the assembly of
support brackets to cabinets and
cabinets to worksurfaces, all file
drawers should be removed.
4. Empty the contents of file drawers
and open drawer until suspension
is fully extended (Figure 2).
5. Using a slot screwdriver, place
tip between the drawer body and
the suspension, near the slip
connection (Detail A).
6. Rotate the screw driver to pry the
suspension away from the drawer
body, while pressing up on the
bottom of the drawer. Repeat on
the other side (Detail A).
7. The drawer will now slip free from
the front connections by pulling
the drawer evenly at a slight angle
upwards, then pull forward to
disengage the rear connection
(Figure 2).
