KI Intellect Chair Repair & Replacement Instructions

Repair & Replacement Instructions

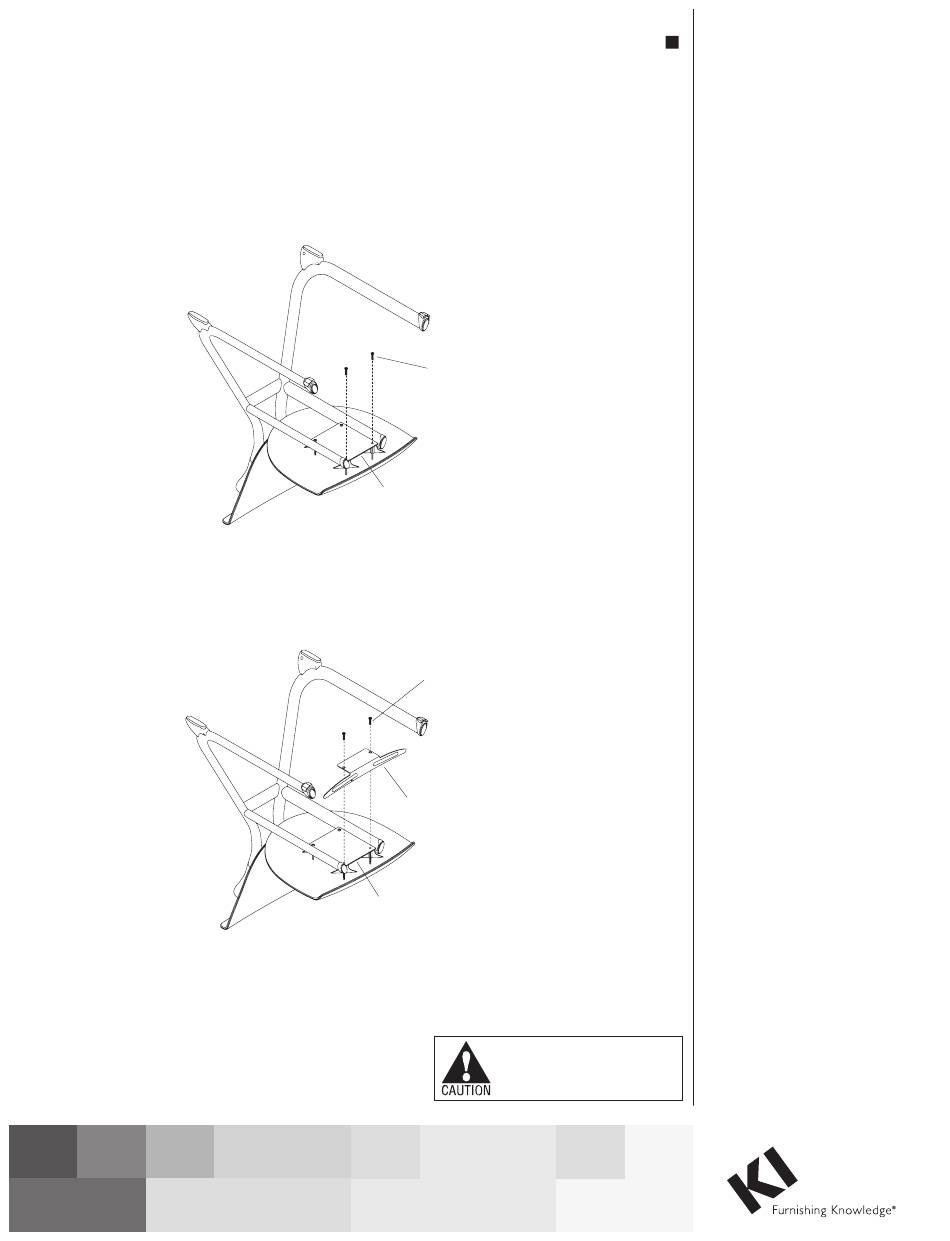

seat mounting
Figure 1
seat mounting
Figure 2
Intellect
Seat Support Bracket, Seat & Back
20mm
Torx screw
plate
20mm Torx
screw
seat support
bracket
plate
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Chair
®
July 2018
Note: If a powered device is used to
tighten the screws, start at the lowest
torque setting and slowly increase
the torque until the screws are snug
against the frame. Damage to the
plastic seat could result if the
screws are over-tightened.
Seat Support Bracket Installation
Note: Seat Support Brackets are
only available for EC16 & EC18
(Large and X-Large) Intellect Chairs.
1. Carefully place chair upside down on
a soft, protective surface. Locate the
two front 20mm Torx screws securing
the seat to the seat mounting plate
and remove them using a Torx T20
drive (Figure 1).
2. Position the seat support bracket
onto the seat mounting plate so the
wings of the bracket rest under the
front of the seat. Align the holes of
the bracket with the two front holes of
the mounting plate and loosley start
each of the two 20mm Torx screws
previously removed in step 1. Using
a Torx T20 drive, carefully tighten the
two 20mm Torx screws. Take care
to not over tighten or damage may
occur to the plastic seat (Figure 2).
