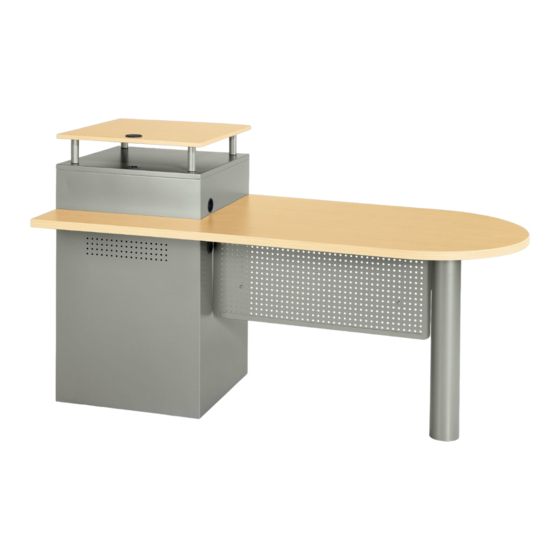

KI Instruct All Terrain Instructor's Desk Assembly Instructions

Assembly Instructions
Instruct Classroom Furniture
®
All Terrain
landing pad
mount bushing
(upper)
landing pad
(underside)
#8 x
landing pad
post
landing pad
bushing
(lower)
1 / " flat
4
washer
1 / -20
4
k-lock nut
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Instructor's Desk
®
March 2016
1 / -20 x 4"
4
bolt
1 / "
2
screw
1. Locate the hardware pack for the
Landing Pad and identify the parts
by referencing Figure 1. Begin
assembly by inserting four
/ -20 x 4" bolts into four (upper)
1
4
landing pad mount bushings.
Secure the upper bushings to the
underside of the landing pad as
illustrated using four
#8 x ½" screws (Figure 1).
2. Place a lower landing pad post
bushing into the bottom of each
landing pad post and press the four
landing pad posts/lower bushings
onto the installed upper landing
pad mount bushing and 4" bolt
(Figure 1).
3. Carefully position the landing pad
with installed bushings, posts &
bolts such that the four bolts insert
through the four mounting holes in
the top of the cabinet (Figure 1).
4. From inside the cabinet, locate the
/ -20 x 4" bolts inserted through
1
4
the top and place a / " flat washer
1
4
and / -20 k-lock nut onto each
1
4
bolt. Tighten nuts to secure landing
pad to cabinet top (Figure 1).
