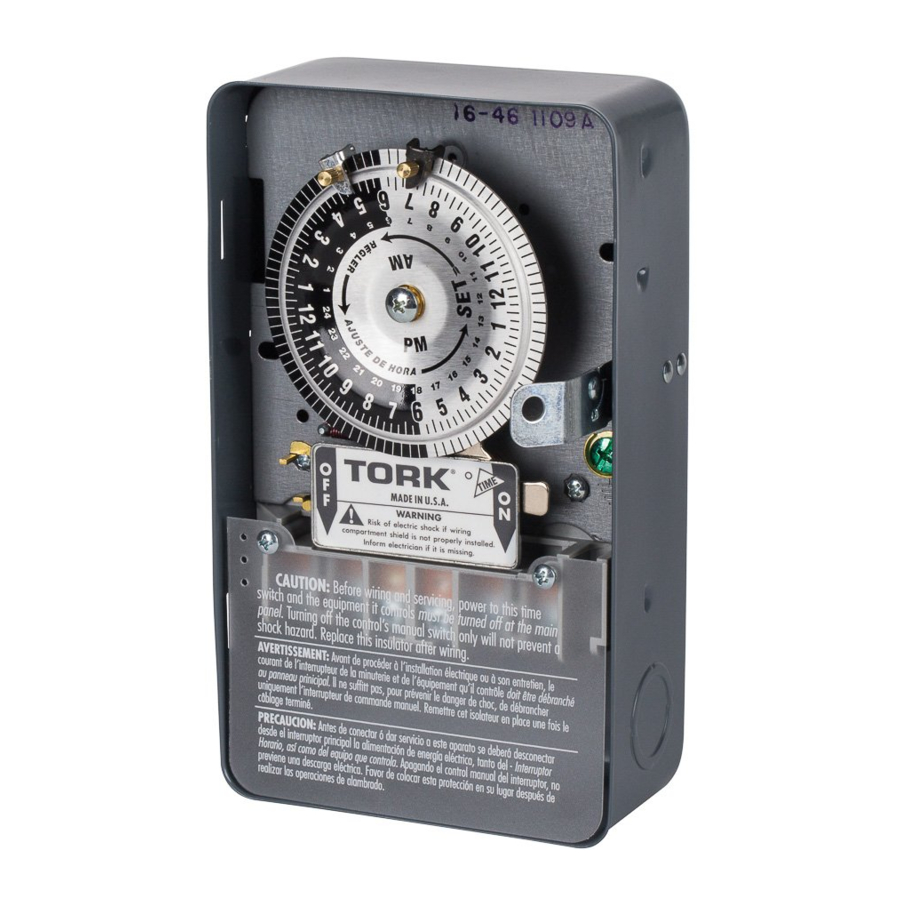

Tork 1109A, 1109A-O Manual

SPECIFICATION

SWITCH: SPST/DPST
CONTACT RATINGS:
40AMP 120/208-277VAC General Purpose/Resistive
20AMP 120/208-277VAC Inductive (Ballast)
277VAC Single Phase
16AMP 120/208-277VAC Electronic Ballast/LED
40AMP 120VAC Tungsten
1100VA (120VAC); 2200VA (240VAC) Pilot Duty
2HP 120VAC; 5HP 240VAC
TIMING MOTOR: 120/208-277VAC 60Hz
POWER CONSUMPTION: 3.5 WATTS Max
SHORT CIRCUIT RATING: 5KA
(When protected by a Class T Fuse 60A)

We recommend that installation be made by a licensed electrician. Disconnect power at main panel prior to installing or servicing this time switch or the equipment connected to it. Connect in accordance with national and local electrical codes. Supply Connections: Use copper wire AWG 8-14 suitable for minimum 75°C(167°F) at 40 amps. Use insulated ground wire only. Replace insulator before turning on electricity to unit. THE ENCLOSURE SHOULD BE PROPERLY GROUNDED. Minimum 16 lb. in. torque require at the terminals to ensure proper connection.

INSTALLATION AND OPERATING INSTRUCTIONS

TO SET ON AND OFF TIMES:
Light trippers turn ON. Dark trippers turn OFF.
Place tripper on dial edge as shown in figure and set point of each tripper to desired operating time. Note if selected time is AM or PM. Hold tripper against dial edge and firmly tighten knurled screw.

TO SET DIAL TO TIME:
Turn dial counter-clockwise until correct time is indicated by arrow on nameplate.

FOR TEMPORARY MANUAL OVERRIDE:
Press down lever on right of nameplate to turn ON. Press down lever on left of nameplate to turn OFF.

Do not rotate dial for manual override.

TO REMOVE MECHANISM FROM CASE:
Press lever near case latch to release main plate and swing the movement out. To replace, insert main plate projections in slots opposite latch and swing movement in until it latches.
