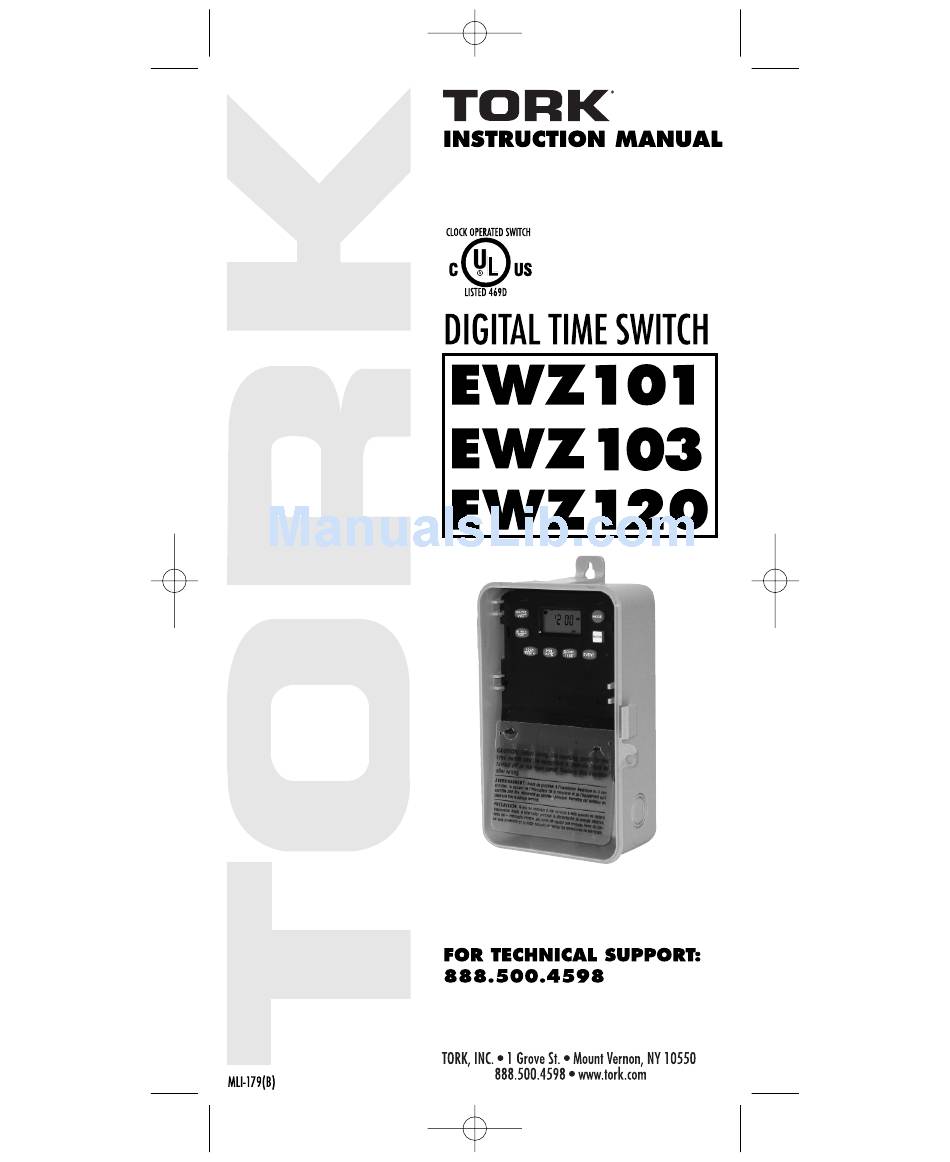

  • Page 1 EWZ101_120single 7/25/07 10:18 PM Page 1...

  • Page 2: Table Of Contents

    EWZ101_120single 7/25/07 10:18 PM Page 2 TABLE OF CONTENTS Section Page Installation Instructions and Capabilities ....To Set The Clock ....To Modify Clock .

  • Page 3: Capabilities

    EWZ101_120single 7/25/07 10:18 PM Page 3 TORK MODEL EWZ101/103/120 7 DAY DIGITAL TIME SWITCH READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPT- ING TO INSTALL TIME SWITCH. SEE WARNING ON FRONT PANEL – Failure to comply with instructions could result in personal injury and/or property damage.

  • Page 4: To Set The Clock

    EWZ101_120single 7/25/07 10:18 PM Page 4 PROGRAMMING YOUR EWZ 101/103/120 NOTE: AFTER MAKING ANY CHANGES TO THE PROGRAM, PRESS MODE TO GO TO RUN MODE AND THEN PRESS EVENT TO UPDATE THE LOAD STATUS. AT POWER UP: Unit should be program with AC power. Do not pro- gram under super cap back up power.

  • Page 5: To Modify Date

    EWZ101_120single 7/25/07 10:18 PM Page 5 NOTE: The day of the week will be automatically set once the date is set. TO MODIFY DATE Press MODE until the display shows DATE. Press MONTH, DATE and YEAR to modify present set- tings and then press ENTER.

  • Page 6: To Modify Daylight Saving Time

    EWZ101_120single 7/25/07 10:18 PM Page 6 Press ENTER and the display will show: MO TU WE TH FR SA ASTRO Press ENTER to accept default dates (first Sunday in November) or press MONTH, DATE, and DAY to modify DST settings and press ENTER. Press MODE, the display will show: NOTE: DST OFF indicates Daylight Savings Time was not set.

  • Page 7: To Set Astronomic

    EWZ101_120single 7/25/07 10:18 PM Page 7 Follow the same procedures above to set more schedule entries. TO SET ASTRONOMIC SCHEDULE Press MODE until display shows: MO TU WE TH FR SA SU ASTRO Press LAT key to advance to the desired degree of latitude, from 0°...

  • Page 8: Astronomic On, Time Off

    EWZ101_120single 7/25/07 10:18 PM Page 8 time, leave this field bank. Press ENTER. The dis- play will show: MO TU WE TH FR SA SU ASTRO CH1 MOM AM PM OFFSET If an offset to sunrise time is required, press HOUR and MIN.

  • Page 9: Review, Modify, Delete Schedules

    EWZ101_120single 7/25/07 10:18 PM Page 9 sunrise settings. To delete sunrise setting, press DEL and ENTER. b. To delete the astro schedule for sunset and sunrise. Press MODE until the display shows: MO TU WE TH FR SA SU ASTRO MOM AM PM OFFSET CH2 Press DEL and ENTER.

  • Page 10: Manual Override

    EWZ101_120single 7/25/07 10:18 PM Page 10 ENTER and follow the same procedure above to modify or review sunrise settings. 6. RUN MODE: The time, day, seconds, the load status and AUTO is displayed. OVERRIDE OVR (Override) is effective in the AUTO mode and the manual mode.
  • Page 11 EWZ101_120single 7/25/07 10:18 PM Page 11 Now press ENTER briefly and everything in the timer memory will be erased, including real time and date. NOTE: Unit has permanent memory and will not be erased unless done through pro- cedure above. 4.

  • Page 12: Schedule Sheets

    EWZ101_120single 7/25/07 10:18 PM Page 12...
  • Page 13 EWZ101_120single 7/25/07 10:18 PM Page 13...

  • Page 14: Astronomic Latitude Zones

    EWZ101_120single 7/25/07 10:18 PM Page 14...
  • Page 15 EWZ101_120single 7/25/07 10:18 PM Page 15...
