Tork 701U Quick Start Manual

701U
701U
MODEL#:
DESCRIPTION:
CONTACT RATINGS:
! CAUTION !
RISK OF ELECTRIC SHOCK
Disconnect power at main panel prior to installing
or servicing this lighting control or the equipment connected to it.
1. Switch off circuit breaker to disconnect power to the circuit.
2. Using a slotted screwdriver, carefully pry the provided face plate from
the body of the timer.
3. In existing installations, remove wall plate and switch. There are three
wires in the box as follows:
"HOT" wire = usually black
"LOAD" wire = usually red
"NEUTRAL" wire = usually white
4. Connect the HOT wire to the timer's black wire, the LOAD wire to the
timer's red wire and the NEUTRAL wire to the timer's white wire. Wires
should be twisted together and secured with wire nuts (provided).
5. Replace all wires inside of the junction box by folding wires around the
sides, bottom and top of timer. Do not force.
6. Using the two longer screws provided, secure the timer assembly
into the holes in the junction box where the wall switch was previously
mounted (see drawing).
7. Using the two shorter screws provided, secure the face plate to the
mounted timer assembly (see drawing).
8. Place the dial on the center of the timer assembly, then insert the inner
circle into the dial so that both pieces rest securely on the timer assembly.
Fasten the dial into place with the plastic screw provided (see drawing).
9. Restore power to the circuit.
MANUAL OPERATION: Turn lighting or fan ON and OFF using the slide switch as indicated on the face plate.
AUTOMATIC OPERATION: Begin with the slide switch in the OFF position. Notice the round dial in the center of the face
is marked in hours of the day and divided into AM and PM sections. Around the outside of the dial are moveable tabs, EACH
REPRESENTING 30 MINUTES. These tabs, when pushed up, represent power OFF. Tabs left down represent power ON.
1. Decide when ON and OFF times are desired. For example, ON at 6:00AM, OFF at 9:00AM. Push down on all tabs in
the AM section between 6AM and 9AM, starting with the one after 6 and ending before the 9. This is a total of 6 tabs,
each representing 30 minutes, now you have set the switch to turn ON at 6AM and OFF at 9AM.
2. You may decide you want additional ON/OFF times. For example, ON at 7:30PM, OFF at 11:00PM. Push down on all
tabs in the PM section, starting with the one before 8PM and ending with the one before 11PM. This is a total of 7 tabs.
3. Set the correct time of day by rotating the dial clockwise until the arrow on the inner circle points to the correct time.
4. Push the slide switch to the "AUTO" position.
NOTE: The slide switch may be used at any time to override the automatic schedule. Simply slide the switch to ON or OFF as
desired. Remember to return the switch to the "AUTO" position again when automatic programming is desired.
ONE YEAR LIMITED WARRANTY: If this product fails because of a manufacturing defect within one year after purchase, we will, at our option, either repair or replace it at no charge. Our war-
ranty does not cover damage caused by accident, abuse or misuse. We assume no further liability with respect to the sale or use of this product. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY. We make no warranty with respect to the fitness of any goods for the users particular appplica-
tion. This warranty gives you specific legal rights, and you also may have other rights which vary from state to state.
It is our intent to provide accurate and current specification information. However, in the interest of product improvement, TORK may alter the specifications or constructional details
without prior notice.
FOR TECHNICAL SUPPORT:
SOUTIEN TECHNIQUE :
LI-1146 (A)
PARA COMUNICARSE CON
EL SERVICIO TÉCNICO:
888.500.4598

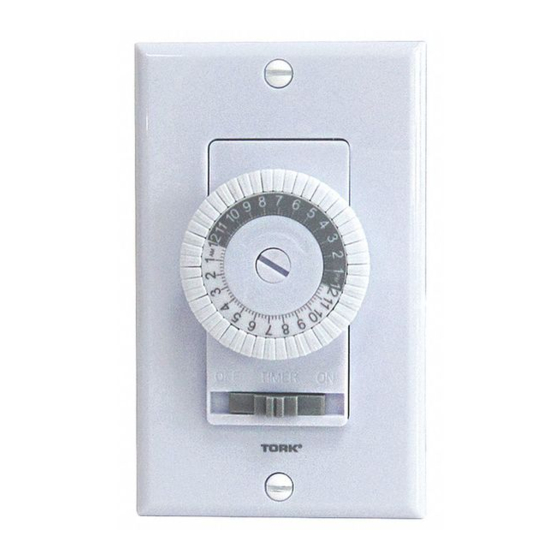

24-HOUR IN-WALL UNIVERSAL TIMER
UNIVERSAL 24-HOUR IN-WALL MECHANICAL TIMER 125VAC SINGLE POLE, WHITE
125VAC, 20A, 2500W GENERAL PURPOSE & RESISTIVE, 1500W TUNGSTEN, 1 HP,
500VA ELECTRONIC BALLAST
This timer is designed to fit a standard (min. 2 1/2" deep) electrical
junction box in new construction or to replace an existing wall switch. It is
used for the automatic control of a lighting circuit or motor driven device
such as a ceiling or attic fan. It is recommended that installation be done by
an electrician.

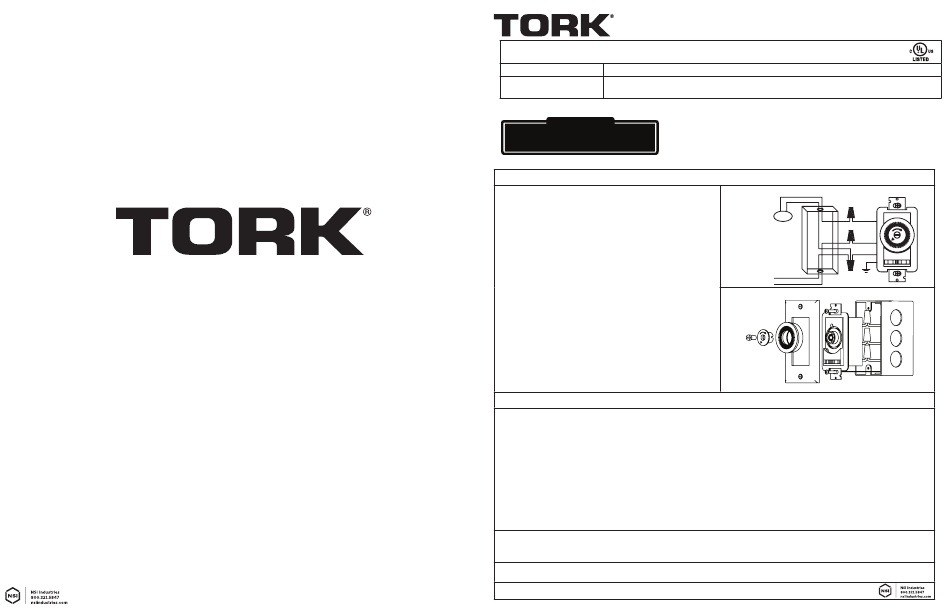

INSTALLATION & WIRING INSTRUCTIONS
LOAD
WHITE (NEUTRAL)
120
VAC BLACK (HOT/LINE)
FACE PLATE
PROGRAMMING & OPERATING THE TIMER
FOR TECHNICAL SUPPORT: techsupport@nsiindustries.com 888.500.4598
TIMER
BLACK
WHITE
RED
BLACK
WHITE
OFF TIMER ON
GROUND
Connect WHITE wire to Neutral
Connect RED wire to Load
WHITE
RED
BLACK
GND
Connect BLACK wire to
120VAC Line (HOT)
JUNCTION BOX
TIME ASSEMBLY
