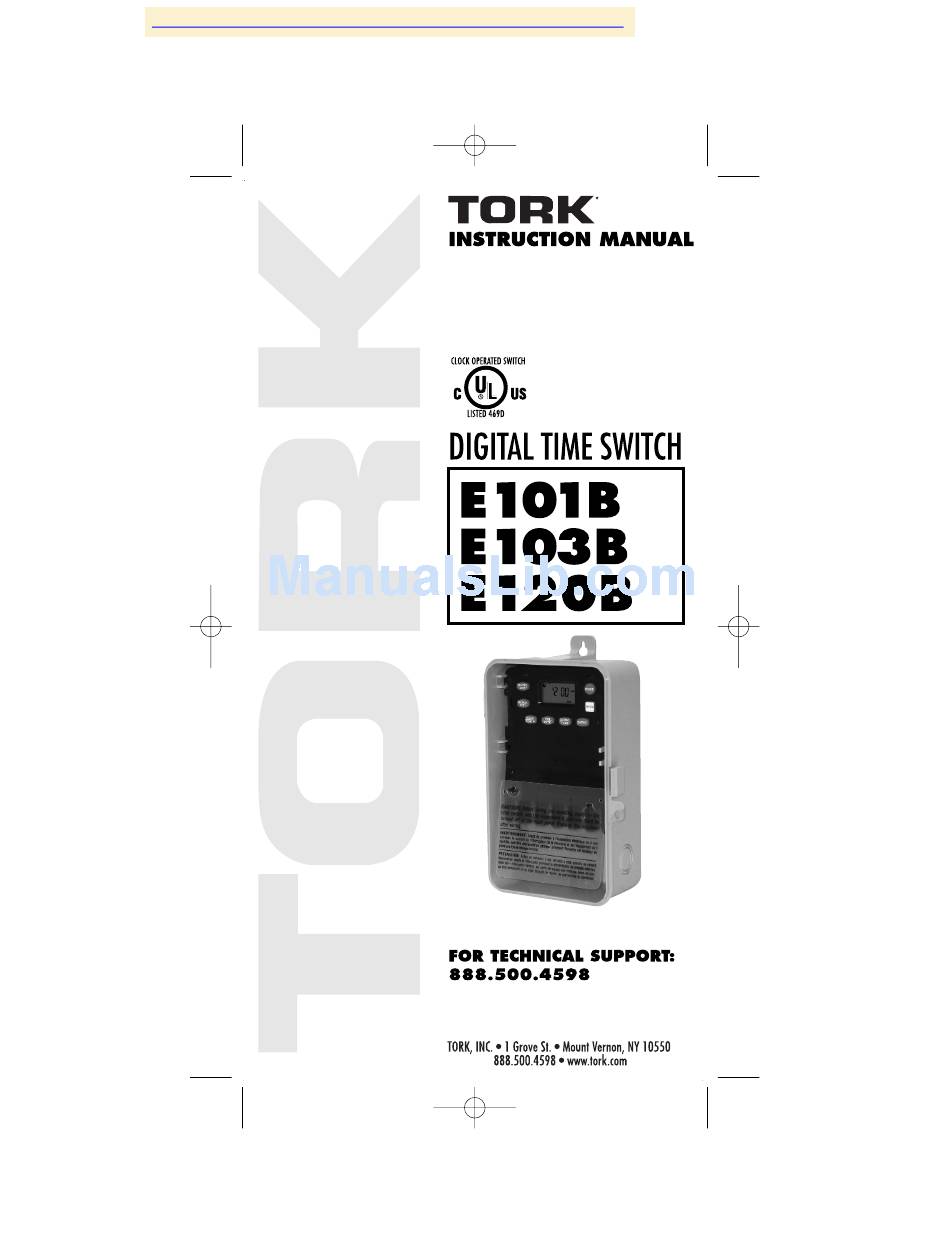

- Page 1 E101B SINGLE 7/22/07 10:02 PM Page 1 MLI-203(REVA)
-
Page 2: Table Of Contents
E101B SINGLE 7/22/07 10:02 PM Page 2 TABLE OF CONTENTS Section Page Installation Instructions and Capabilities ....Key Functions .... -
Page 3: Capabilities
E101B SINGLE 7/22/07 10:02 PM Page 3 TORK MODELS E101B / E103B / E120B 24 HOUR DIGITAL TIME SWITCH READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL TIME SWITCH. SEE WARNING ON FRONT PANEL – Failure to comply with instructions could result in personal injury and/or property damage. -
Page 4: Key Functions
E101B SINGLE 7/22/07 10:02 PM Page 4 KEY FUNCTIONS: Unit should be program with AC power. Do not pro- gram on super cap back up power. Mode: Press to go to the next mode. Enter: Stores or saves current entry. -
Page 5: To Set The Clock
E101B SINGLE 7/22/07 10:02 PM Page 5 PROGRAMMING YOUR E101B / E103B / E120B NOTE: AFTER MAKING ANY CHANGES TO THE PROGRAM, PRESS MODE TO GO TO RUN MODE AND THEN PRESS EVENT TO UPDATE THE LOAD STATUS. AT POWER UP: When powering up the unit for the first time, 12:00 will flash on the display. -
Page 6: To Modify Date
E101B SINGLE 7/22/07 10:02 PM Page 6 Press MONTH, DATE, and YEAR key to advance to the desired Month, date and year, then press ENTER. NOTE: The day of the week will be automatically set once the date is set. -
Page 7: Modify Daylight Saving Time
E101B SINGLE 7/22/07 10:02 PM Page 7 TO MODIFY STANDARD USA DAYLIGHT SAVINGS DATES MO TU WE TH FR SA ASTRO Press MONTH and DATE, to modify S (starting) DST settings. NOTE: DATE will choose the week of the month to be assigned. -
Page 8: Review, Modify, Delete Schedules
E101B SINGLE 7/22/07 10:02 PM Page 8 SETTING HOURS AND MINUTES Press HOUR and MIN to set desired time. Press EVENT to set desired event (ON/OFF) and then press ENTER. The display will show: CLK DATE AUTO MAN Follow the same procedures above to set more schedule entries. -
Page 9: Clear All Memory
NOTE: Unit has permanent memory and will not be erased unless done through proce- dure above. 5. Upon powering up your E101B/103B/120B the display will show at what frequency the unit is operating, 50 will determine 50Hz or 60 for 60Hz. -
Page 10: Blank Schedule Sheets
E101B SINGLE 7/22/07 10:02 PM Page 10 NOTE: AFTER MAKING ANY CHANGES TO THE PROGRAM, PRESS MODE TO GO TO RUN MODE AND THEN PRESS EVENT TO UPDATE THE LOAD STATUS. Sch.# Load Description Time... - Page 11 E101B SINGLE 7/22/07 10:02 PM Page 11...
