Summary of Contents for Tork DTS400B

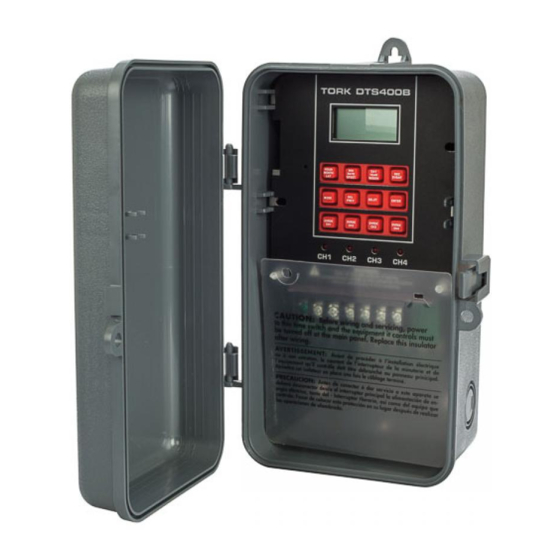

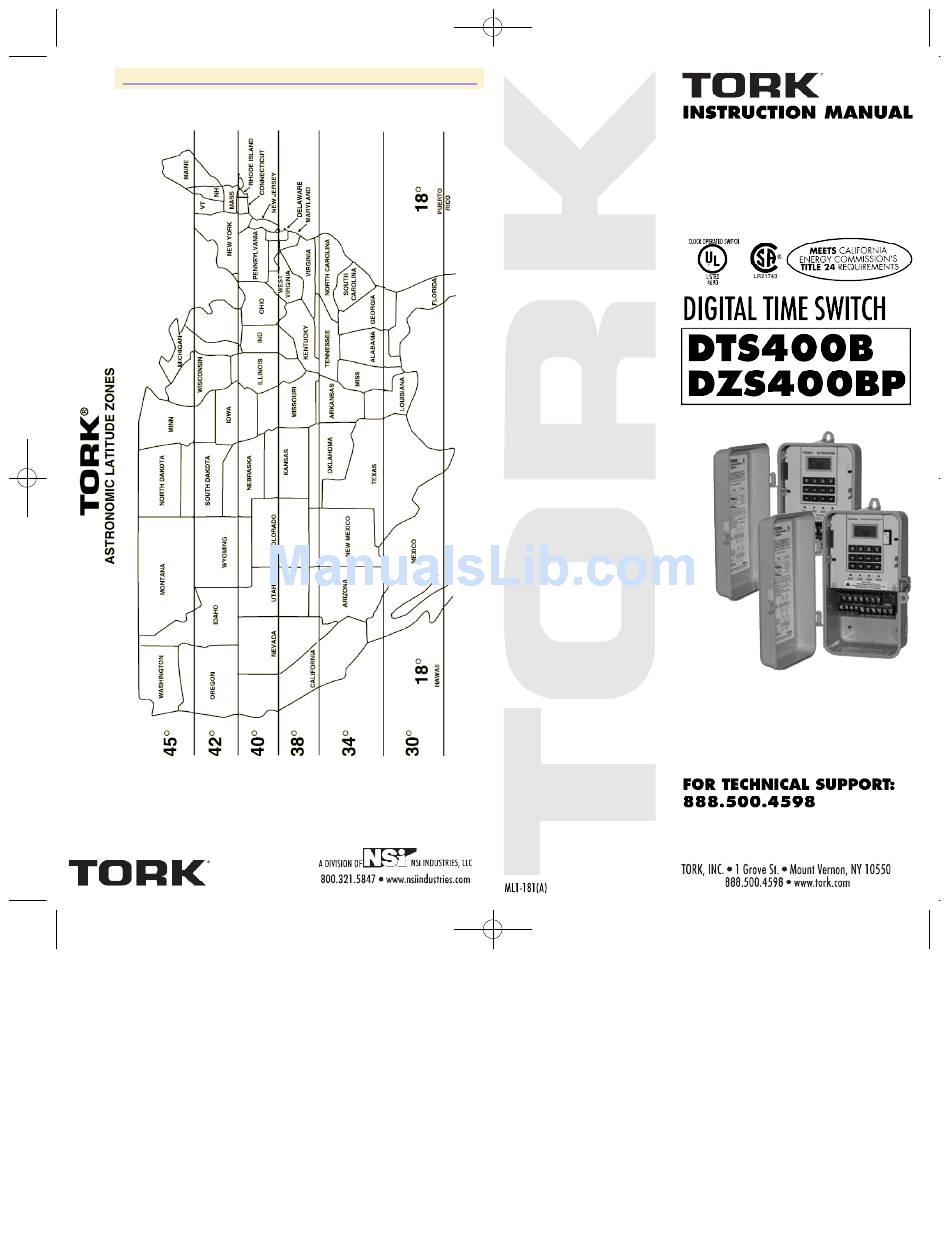

  • Page 1 DTS400B - DZS400BP 3/9/07 10:14 AM Page 1 http://waterheatertimer.org/Tork-Digital-timers-and-manuals.html...

  • Page 2: Table Of Contents

    DTS400B - DZS400BP 3/9/07 10:14 AM Page 3 TABLE OF CONTENTS Section Page Capabilities and Features ..Installation Instructions ... .

  • Page 3: Capabilities And Features

    DTS400B - DZS400BP 3/9/07 10:14 AM Page 5 TORK MODEL DTS400B / DZS400BP 4 CHANNEL DIGITAL TIME SWITCH CAPABILITIES & FEATURES CAPABILITIES 365 Day Advance, Single Day Holiday and Seasonal Scheduling. ON and OFF (signal or pulse) set points: - Combined total for both channels – 99 per week - Minimum setting –...

  • Page 4: Installation Instructions

    DTS400B - DZS400BP 3/9/07 10:14 AM Page 7 INSTALLATION INSTRUCTIONS 1. Remove unit from enclosure by pushing the inside tab (located near the outside hasp) to the right. Swing unit to left and remove. 2. Five combination 1/2” and 3/4” knockouts are provid- ed on this enclosure.

  • Page 5: Instructions For Setting The Unit

    DTS400B - DZS400BP 3/9/07 10:14 AM Page 9 Press ENTER. The display will show: INSTRUCTIONS FOR SETTING THE UNIT Connect unit to main power source prior to entering the settings. When powering up the unit for the first time, allow 1-2 minutes for the supercapacitor to charge and the display will show 12 HOUR.

  • Page 6: To Set The Clock

    DTS400B - DZS400BP 3/9/07 10:15 AM Page 11 TO SET THE CLOCK Apply AC power to unit Insert the pin in the small pinhole (located in Press HOUR and MIN to advance to the present the upper right hand corner) to reset the unit.

  • Page 7: Season Durations Settings

    DTS400B - DZS400BP 3/9/07 10:17 AM Page 13 The display will only show the last scheduled event for If daylight savings is required, press ENTER, dis- CH1. To view the last schedule event for other channels, play will show: simply press the EVENT key again. If there is no sched- ule programmed for a specific channel, the display will show —:—...

  • Page 8: Holiday Dates

    DTS400B - DZS400BP 3/9/07 10:18 AM Page 15 NOTE: 5. HOLIDAY MODE: Press ENTER to advance to If season durations are not set, they will not desired Holiday. Press MONTH and DATE to appear on the schedule and astronomic mode.

  • Page 9: To Set Signal Durations

    DTS400B - DZS400BP 3/9/07 10:18 AM Page 17 If an offset to sunrise time is required, press HOUR Press MONTH and DATE to set holiday 1 and then and MIN. Offset can be set to 4 hours and 59 min- press ENTER.

  • Page 10: To Set Astronomic Schedule

    DTS400B - DZS400BP 3/9/07 10:19 AM Page 19 SETTING HOURS AND MINUTES channel to turn ON at sunset and then press a. Press HOUR and MIN to set desired time. ENTER. Display will show: b. Press EVENT to set desired event.
