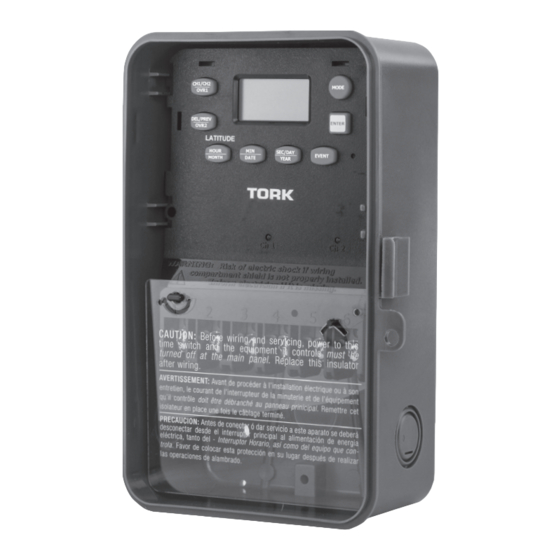

Tork EWZ103 Instruction Manual

Digital time switch

Hide thumbs Also See for EWZ103:

Instruction mamual (15 pages)

Table Of Contents

Quick Links

Download this manual

MLI-231(H)

nsiindustries.com/tork

800.321.5847

TRK_EWZ103_DTM_ProdInstall

Table of Contents

Need help?

Do you have a question about the EWZ103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tork EWZ103

Page 2 Minuterie Numérique à Cycle Interruptor de Tiempo Digital CLOCK OPERATED SWITCH 469D INSTRUCTION MANUAL FOR TECHNICAL SUPPORT | SOUTIEN TECHNIQUE | PARA COMUNICARSE CON EL SERVICIO TÉCNICO 888.500.4598...
Page 3: Table Of Contents
TABLE OF CONTENTS Section Page Capabilities ......1 Planning Your Program ....1 Installation.
Page 4: Capabilities
32. Here are examples for the most common uses. For other ideas call the toll free Tork Tech Help Line 888-500-4598. 1. Sunset ON and Sunrise OFF 7 days a week: After setting CLK (clock), DATE, and DST (daylight saving time), go to the ASTRO mode section 7.0 to enter latitude and enter...
Page 5: Installation
SEt is displayed on the screen. Press reset button after 2 minutes if screen remains blank after power is applied to the unit. PROGRAMMING YOUR EWZ103 NOTE 1: AFTER MAKING ANY CHANGES TO THE PROGRAM, PRESS MODE TO GO TO RUN MODE AND THEN PRESS EVENT TO UPDATE THE LOAD STATUS.
Page 6: Set Clock
First time display shows 1.0 TO SET CLOCK. Press the HOUR button and display will show: Press HOUR and MIN to advance to today’s time. Check AM/ PM, and press ENTER.
Page 7: Set Date
2.0 TO SET DATE. If you are setting for the first time, display will show a default date: Press MONTH, DATE, and YEAR key to advance to today’s date then press ENTER. NOTE: The day of the week will be automatically set once the date is entered.
Page 8: Schedule Set Mode
4.0 SCHEDULE SET MODE. Press MODE until display shows: 4.1 SETTING HOURS, MINUTES AND DAYS. a. Press HOUR and MIN to set desired time. b. Press EVENT to set desired event (ON or OFF). c. Press DAY to change the selected day groups from all days MO to SU.
Page 9: Selecting Astro Days On
latitude, from 10° to 60° north or 10° to 60° south. Press ENTER. 5.2 SELECTING ASTRO DAYS ON. The display will show: ASTRO Press DAY to show the Sunset time for today. All days are filled in on the screen. To change the day groups to MO – FR, as an example, continue to press the DAY button.
Page 10 5.4 SELECTING ASTRO DAYS OFF. The display will show: MO TU WE TH FR SA SU ASTRO Press DAY to show the Sunrise time for today. All days are filled in on the screen. No changes can be made to the day selection. This way the timer always turns off the load at sunrise for energy savings.
Page 11: Review, Modify, Delete Settings
6.0 REVIEW, MODIFY AND DELETE. Press MODE to advance to any of the following MODES: 1. CLOCK MODE: Press HOUR and MIN to modify existing settings. Press ENTER. 2. DATE MODE: Press MONTH, DATE and YEAR to modify existing settings. Press ENTER. DAY is automatically adjusted. 3.
Page 12 NOTE: Unit has permanent memory and will not be erased unless done through procedure above. 4. Upon powering up your EWZ103 the display will show at what frequency the unit is operating, 50 will determine 50Hz or 60 for 60Hz.
Page 19: Wiring Diagrams
WIRING DIAGRAMS...
