TSI Instruments CA-CALC CA-6000 Series Replacement Instructions page 5

Tab
Notch

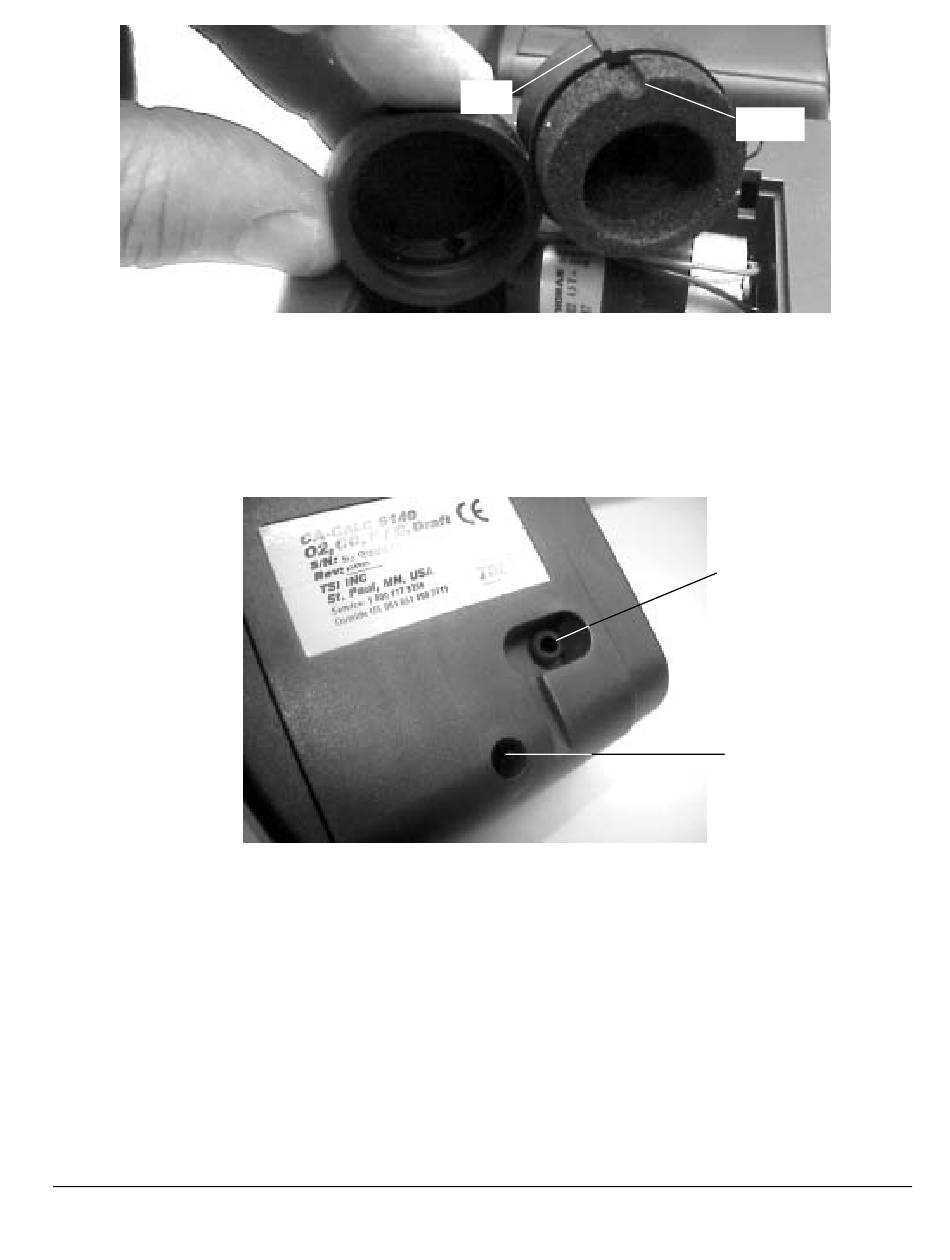

Figure 8. CO Sensor Gasket Alignment
Push the sensor manifold down carefully over the sensors.
Replace the sensor cover, making sure the vent collar protrudes fully through the hole in the case.
Replace the sensor cover screw.
Vent collar
Cover screw
Figure 9. Replacing the Sensor Cover
