TSI Instruments CA-CALC CA-6000 Series Replacement Instructions page 3

Refer to Figure 5. Use your thumb and pull up on the back of the pump as shown, pivoting on the front of
the pump. This action pulls the pump ports out of the twin tube assembly shown in Figure 6.
When the pump is free, lift it out of the case.
Pump
Pump well
TSI INCORPORATED 500 Cardigan Road, Shoreview, MN 55126 (800-874-2811) Fax: (651-490-3824) Page 3 of 5

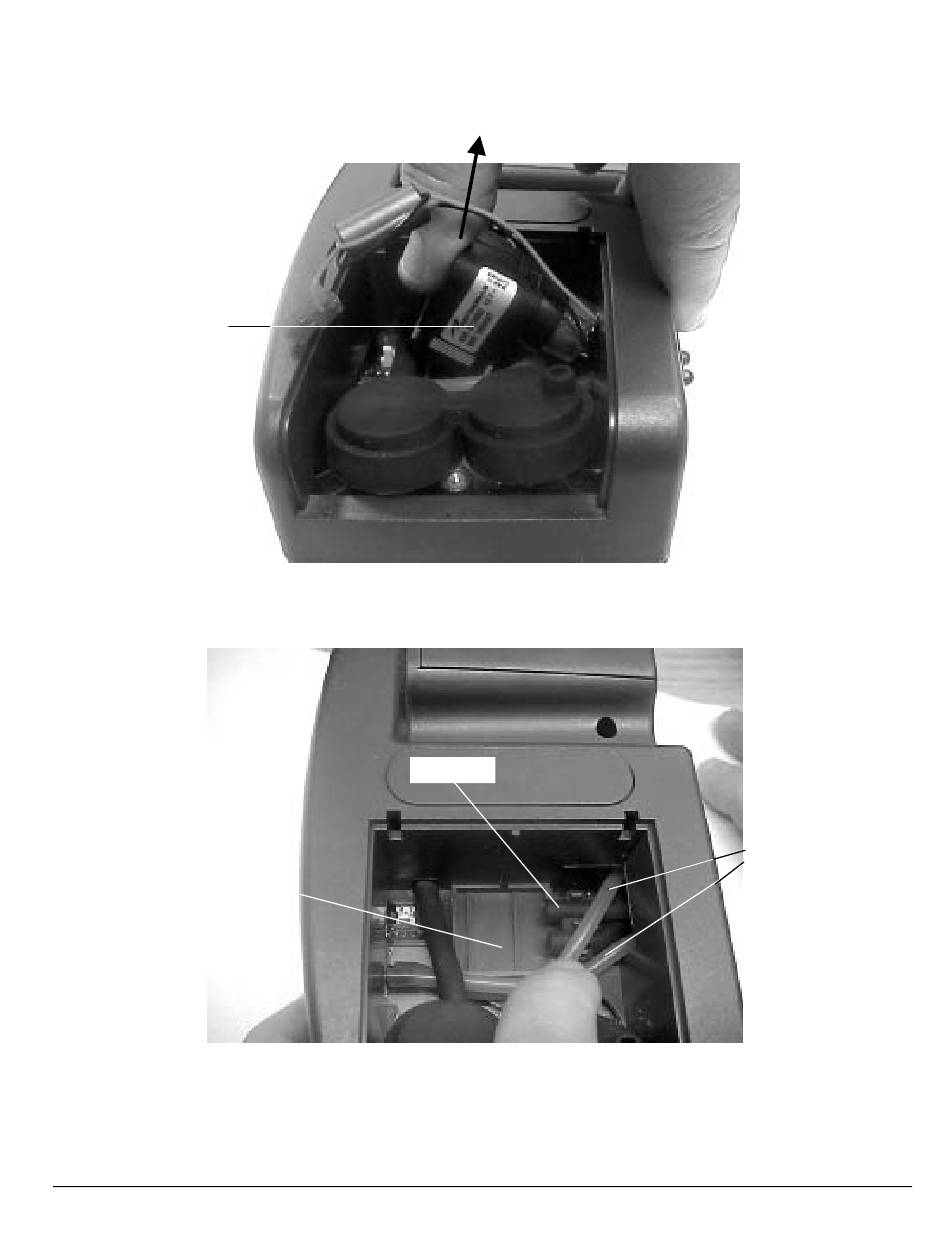

Figure 5. Removing Instrument Pump
Twin tubes
Figure 6. Pump Removed
