Cheetah® Bead Seater
CH-5 & FCH-5 & CH-10
Includes AL & CRN models
buyTSI.com - 800.223.4540
Made in Taiwan
Read this manual before operating
Tire Service International, LLC
Contact us for any assistance
3451 S. 40TH ST.
Phoenix, AZ 85040
800.223.4540
Office: 602.437.5020
Email: sales@buytsi.com
Fax: 602.437.5025
Revised: April 2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TSI Instruments Cheetah CH-5
Summary of Contents for TSI Instruments Cheetah CH-5
- Page 1 Cheetah® Bead Seater CH-5 & FCH-5 & CH-10 Includes AL & CRN models buyTSI.com - 800.223.4540 Made in Taiwan Read this manual before operating Tire Service International, LLC Contact us for any assistance 3451 S. 40TH ST. Phoenix, AZ 85040 800.223.4540 Office: 602.437.5020 Email: sales@buytsi.com...
-
Page 2: Safety Instructions

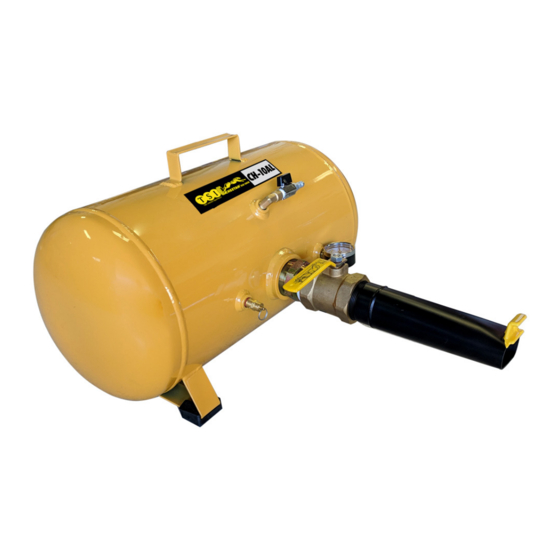

Overview The CH-5 Cheetah® Bead Seater accommodates wheels from 4” to 24.5”. This includes passenger and light truck tires and most commercial truck tires. The CH-10 Cheetah® Bead Seater accommodates passenger and light truck tires, commercial truck and some implement tires. Safety Instructions •... -
Page 3: Setup Instructions
Setup Instructions Verify receiving all the parts described in this instruction. Assemble as shown in Fig. 2 thru Fig 8. Fig. 2 Fig. 3 To install the discharge valve and threaded barrel use a large pipe wrench or a large socket wrench. -
Page 4: Operational Instructions
Operational Instructions If the pressure gauge becomes loose, tighten it with a wrench as shown in Fig. 8 and test for air leaks with soapy water. IMPORTANT: Prepare each wheel by cleaning the rim. Dirt on the rim can create flying debris from the rush of air going into the tire. - Page 5 Operational Instructions NOTE: It is not always necessary to fill the tank to maximum pressure. The required pressure will vary depending on the size and type of tire. It is best to begin with lower pressure and work up to optimum pressure for your specific tire. Never exceed 120 PSI (Safety release valve is set to 120 PSI).
-
Page 6: Maintenance
Maintenance To ensure the highest level of performance and operator safety, each Cheetah® tank should be inspected regularly for signs of damage due to wear, accidental impact from drops or other shop wear and tear or storage conditions. Inspection of the tank both external/internal and replacement is the ideal approach to insure optimum user safety. - Page 7 Notes buyTSI.com 800.223.4540...
- Page 8 Notes buyTSI.com 800.223.4540...
- Page 9 Notes CH-5 Replacement Parts Item # Description 01.104 Nipple 1.5” 02.102 Discharge Valve, CH-5 02.107 Lock Nut for CH-5 Barrel 02.103 Threaded Barrel, CH-5 01.106-200 Air Pressure Gauge 1/4 NPT 200 PSI 01.107 Reducer, Bushing 3/4 x 1/4 03.104 Elbow 1/4 NPT M x 1/4 NPT F x 90 Street Brass 05.102 Valve, Safety Release 120psi 01.230...
-
Page 10: Optional Items
Optional Items Difficult Wheels? The magnum barrels provide optimum air dispersion for larger diameter wheels. The curved tube has holes in it for direct air flow into the tire Magnum I (CH-5) Item #02.106 Magnum II (CH-10) Item #03.106 CH-ACC Kit Tire Stand Item #01.111 Tire Wedge Item #01.110 Shelf Item #TI-87... -
Page 11: Warranty And Return Policy
JET PAK (Optional) Faster and easier than standard ball or butterfly discharge valve operation. Attaches easily to existing pipe nipple, replacing manual discharge valve. Discharges tank with the press of a button. Safety cover prevents accidental trigger release. Includes our new improved Jet Barrel for greater air volume delivery. TRIGGER JET BARREL JET PAK INCLUDES:... -
Page 12: Register Your Product Online
Register your product online! www.buytsi.com/registration Visit www.buyTSI.com for any additional information. Also be sure to follow us on all the Socials, and subscribe to our YouTube channel for all our product videos. Copyright © 2022 Tire Service International, LLC No part of this manual may be reproduced without specific approval from Tire Service International, LLC.
