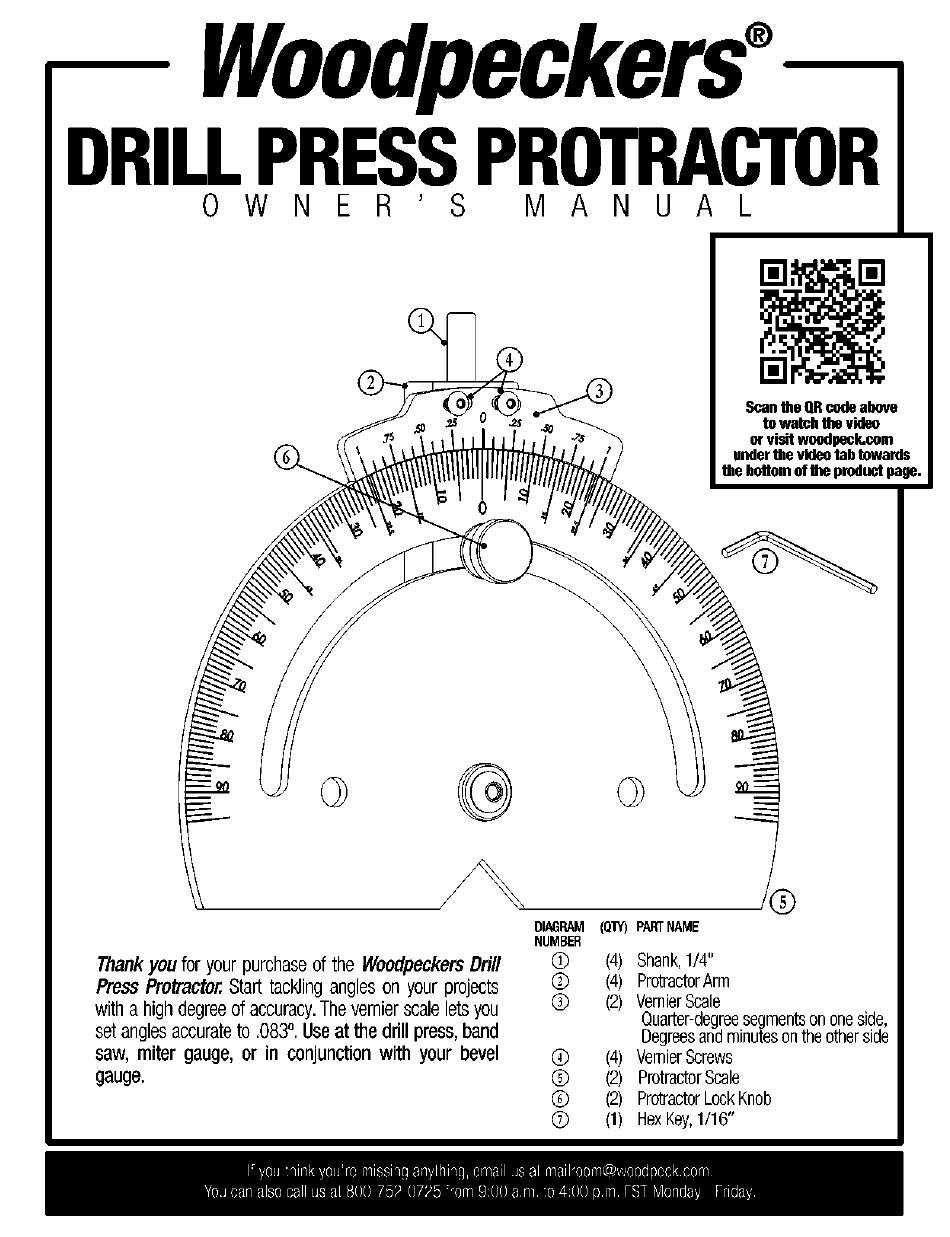

Woodpeckers DRILL PRESS PROTRACTOR Owner's Manual

oodpeckers®
RILL PRESS PROTRACTOR
OWNER ' S MANUAL
hank you for your purchase of the Woodpeckers Drill
Press Protractor. Start tackling angles on your projects
with a high degree of accuracy. The vernier scale lets you
set angles accurate to .083º. Use at the drill press, band
saw, miter gauge, or in conjunction with your bevel
gauge.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
IAGRAM
NUMBER
(QTY) PART NAME
1 (4) Shank, 1/4"
2
(4) Protractor Arm
3
(2)
Vernier Scale
4
(4)
Quarter-degree segments on one side,
egrees and minutes on the other side
Vernier Screws
5
(2)
Protractor Scale
6
(2) Protractor Lock Knob
7
(1)
Hex Key, 1/16
"
