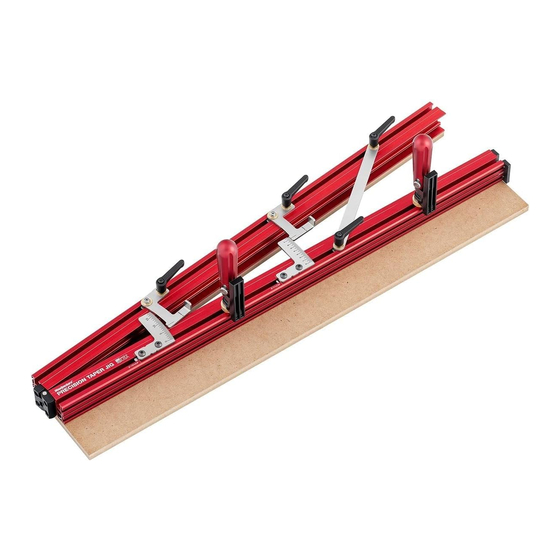

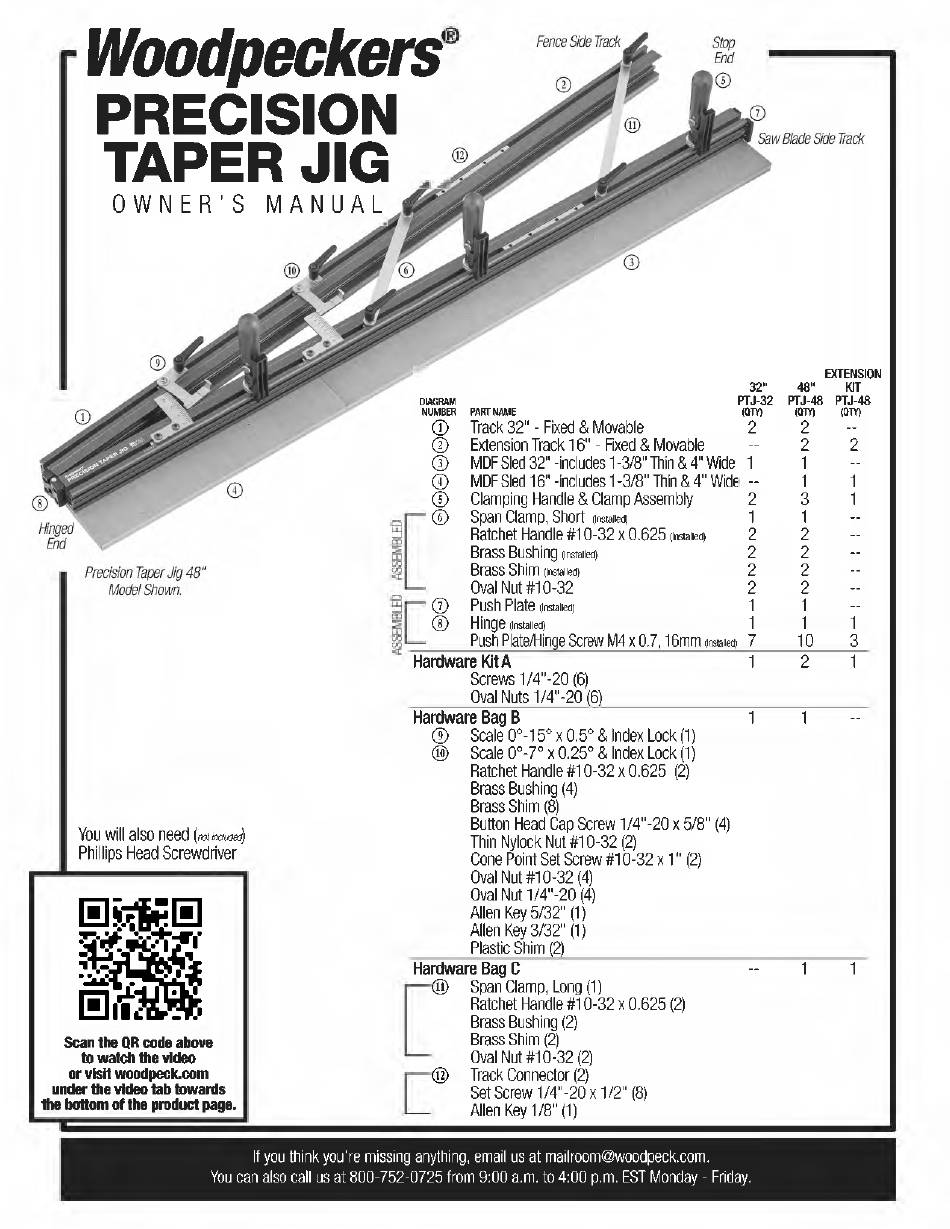

Woodpeckers PRECISION TAPER JIG Owner's Manual

oodpecker s
RECISION
TA ER JIG
DIAGRAM
NUMBER ART NAME
32"
TJ-32
(QTY)
48"
TJ-48
(QTY)
EXTENSION
KIT
TJ-48
(QTY)
1 Track 32" - Fixed & Movable 2 2 --
2 Extension Track 16" - Fixed & Movable -- 2 2
3 MDF Sled 32" -includes 1-3/8" Thin & 4" Wide 1 1 --
4 MDF Sled 16" -includes 1-3/8" Thin & 4" Wide -- 1 1
5 Clamping Handle & Clamp Assembly 2 3 1
6 Span Clamp, Short
(Installed)
1 1 --
Ratchet Handle #10-32 x 0.625
(Installed)
2 2 --
Brass Bushing
(Installed)
2 2 --
Brass Shim
(Installed)
2 2 --
Oval Nut #10-32 2 2 --
7
ush late
(Installed)
1 1 --
8 Hinge
(Installed)
1 1 1
ush late/Hinge Screw M4 x 0.7, 16mm
(Installed)
7 10 3
You will also need (
ot i cluded
)
hillips Head Screwdriver
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
Hardware Kit A (32" qty-
1 ) (48" qty- 2 ) (ext e nsi o n ki t qt y - 1 )
Screws 1/4"-20 (6)
Oval Nuts 1/4"-20 (6)
Hardware Bag B (32" qty-
1 ) (48" qty- 1 )
9
Scale 0°-15° x 0.5° & Index Lock (1)
10
Scale 0°-7° x 0.25° & Index Lock (1)
Ratchet Handle #10-32 x 0.625 (2)
Brass Bushing (4)
Brass Shim (8)
Button Head Cap Screw 1/4"-20 x 5/8" (4)
Thin Nylock Nut #10-32 (2)
Cone oint Set Screw #10-32 x 1" (2)
Oval Nut #10-32 (4)
Oval Nut 1/4"-20 (4)
Allen Key 5/32" (1)
Allen Key 3/32" (1)
lastic Shim (2)
Hardware Bag C (48" qty-
1 ) (Ext e nsi o n Ki t qt y - 1 )
11
Span Clamp, Long (1)
Ratchet Handle #10-32 x 0.625 (2)
Brass Bushing (2)
Brass Shim (2)
Oval Nut #10-32 (2)
12
Track Connector (2)
Set Screw 1/4"-20 x 1/2" (8)
Allen Key 1/8" (1)
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
OWNER ' S MANUAL
