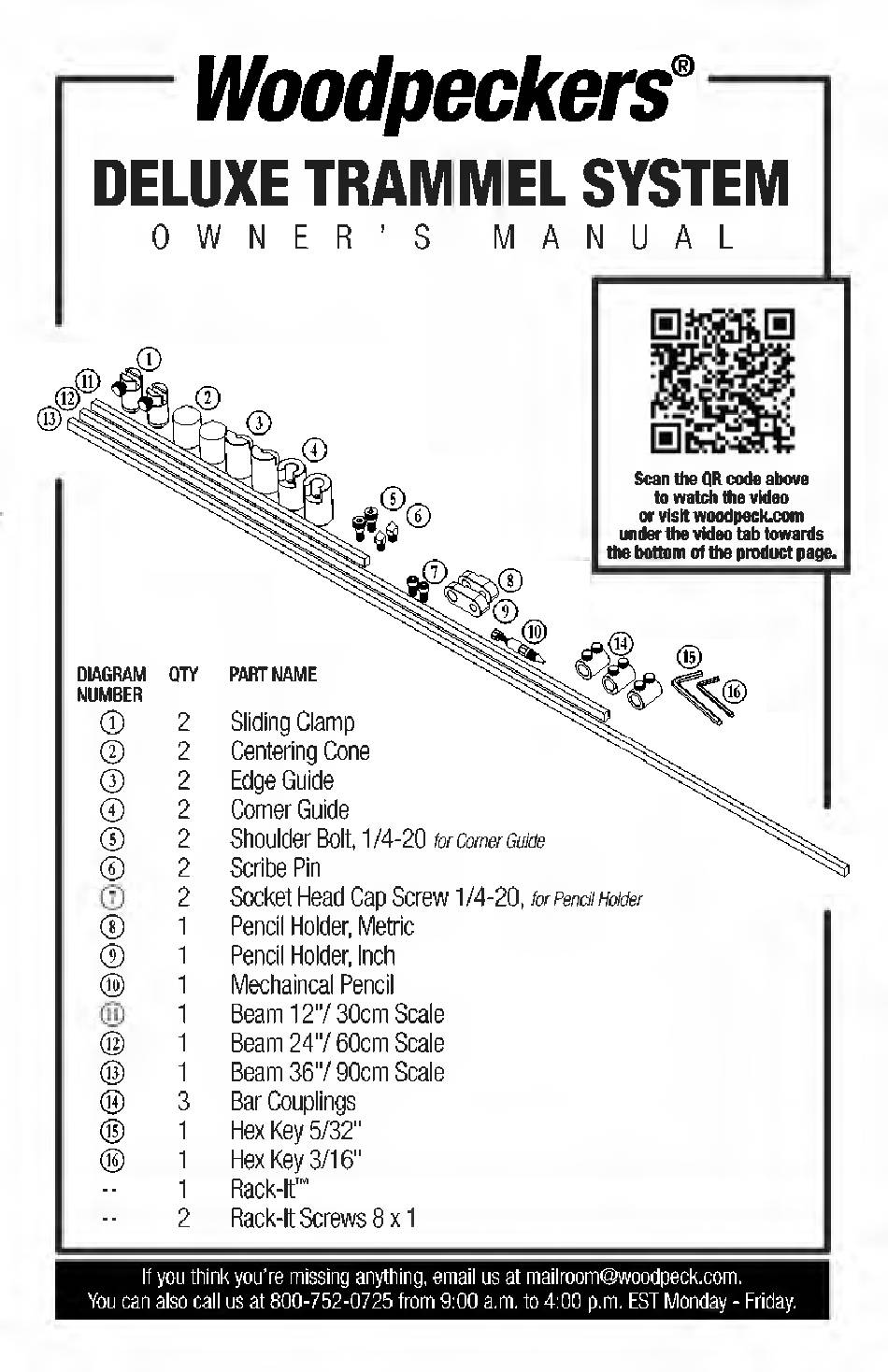

Woodpeckers DELUXE TRAMMEL SYSTEM Owner's Manual

ELUXE TRAMMEL SYSTEM
WNER ' S MANUAL
f you think you ' re missing anything, email us at mailroom@woodpe c k.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
IAGRAM
NUMBER
QTY PART NAME
2 Sliding Clamp
2 2
Centering Cone
3 2 Edge Guide
4 2 Corner Guide
5 2
S h ou lde r Bolt, 1/4-20
or Comer Guide
6
2
Scribe Pin
7
2 Socket Head Cap Screw 1/4-20,
or Pencil Ho l der
8 1 Pencil Holder, Metric
9 1 Pencil Holder, nch
0 1
Mechaincal Pencil
1 Beam 12 '7 30cm Scale
2
1 Beam 24'7 60cm Scale
3 1 Beam 36'7 90cm Scale
4 3 Bar Couplings
5 1 Hex Key 5/32"
6
1
Hex Key 3/ 16 "
1 Rack-lt™
2 Rack-lt Screws 8 x 1
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
