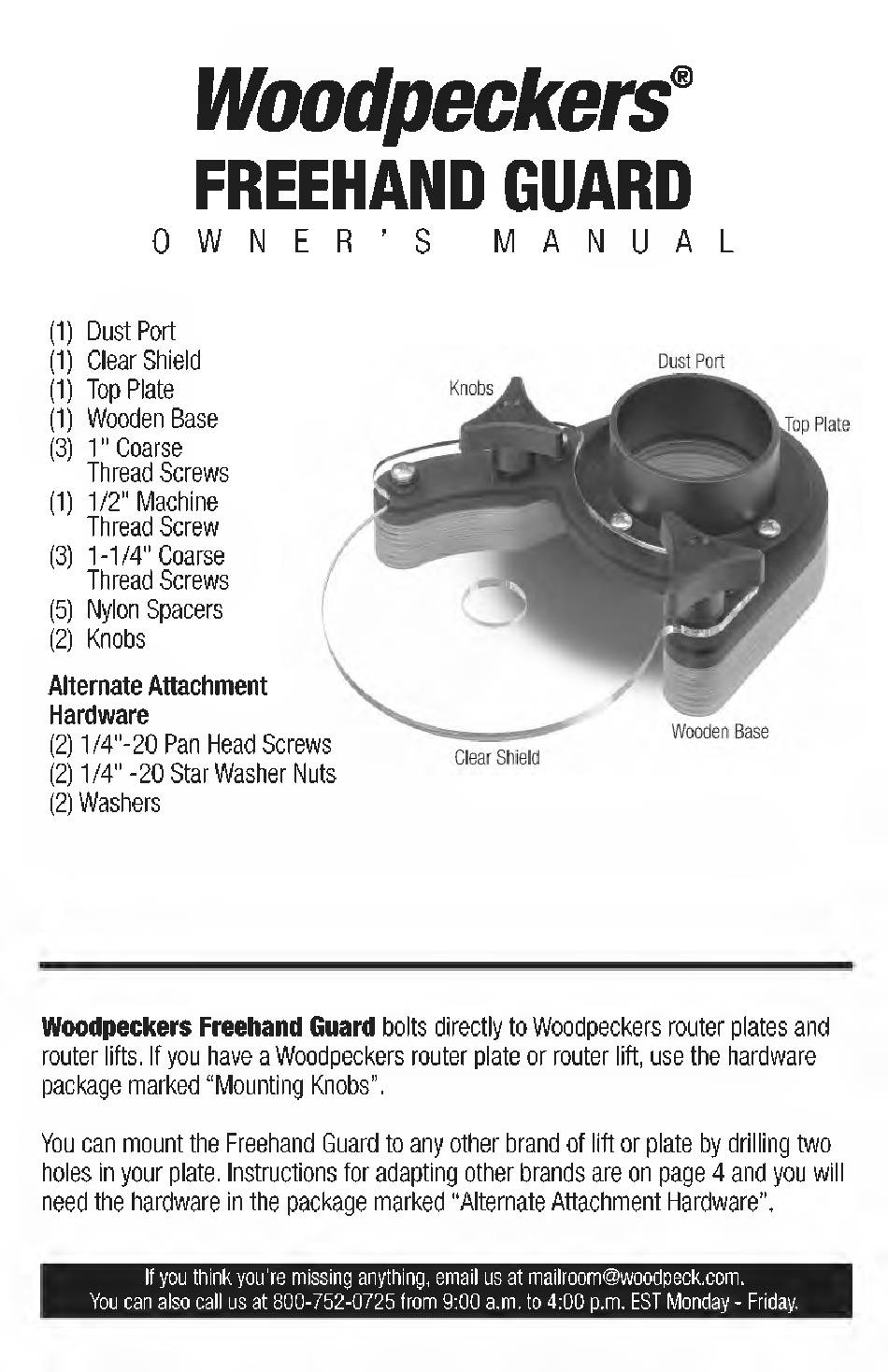

Woodpeckers FREEHAND GUARD Owner's Manual

oodpeckers
REEHAND GUARD
WNER ' S MANUAL

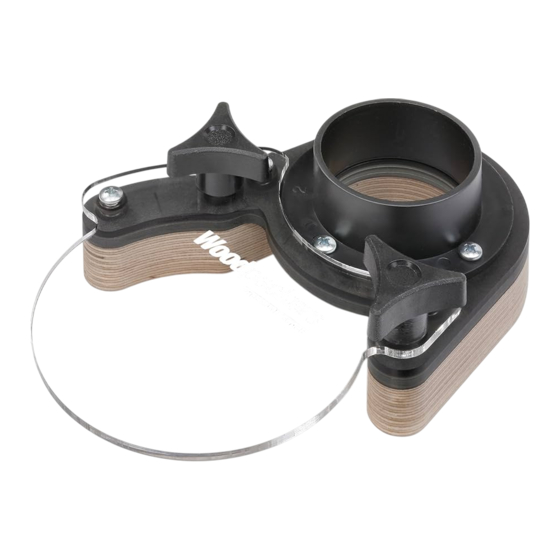

(1) Dust Port
(1) Clear Shield
(1) Top Plate
(1) Wooden Base
(3) 1" Coarse
Thread Screws
(1) 1/2" Machine
Thread Screw
(3) 1-1/4" Coarse
Thread Screws
(5) Nylon Spacers
(2) Knobs
lternate ttachment
Hardware
(2)1/4"-20 Pan Head Screws
(2) 1/4" -20 Star Washer Nuts
(2) Washers
Woodpeckers Freehand Guard bolts directly to Woodpeckers router plates and
router lifts. If you have a Woodpeckers router plate or router lift, use the hardware
package marked "Mounting Knobs " .
You can mount the Freehand Guard to any other brand of lift or plate by drilling two
holes in your plate. Instructions for adapting other brands are on page 4 and you will
need the hardware in the package marked " Alternate Attachment Hardware " .
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
