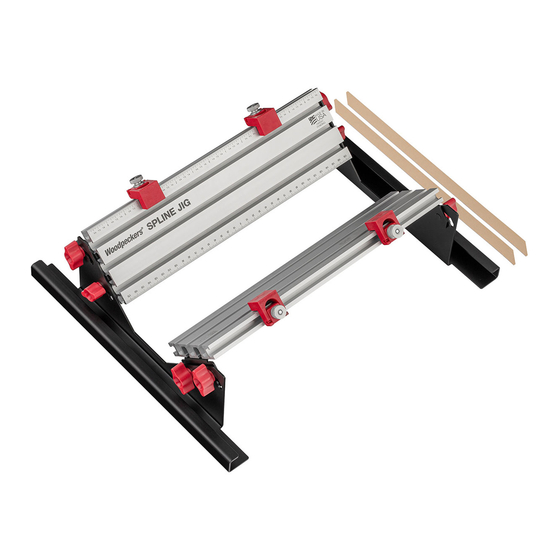

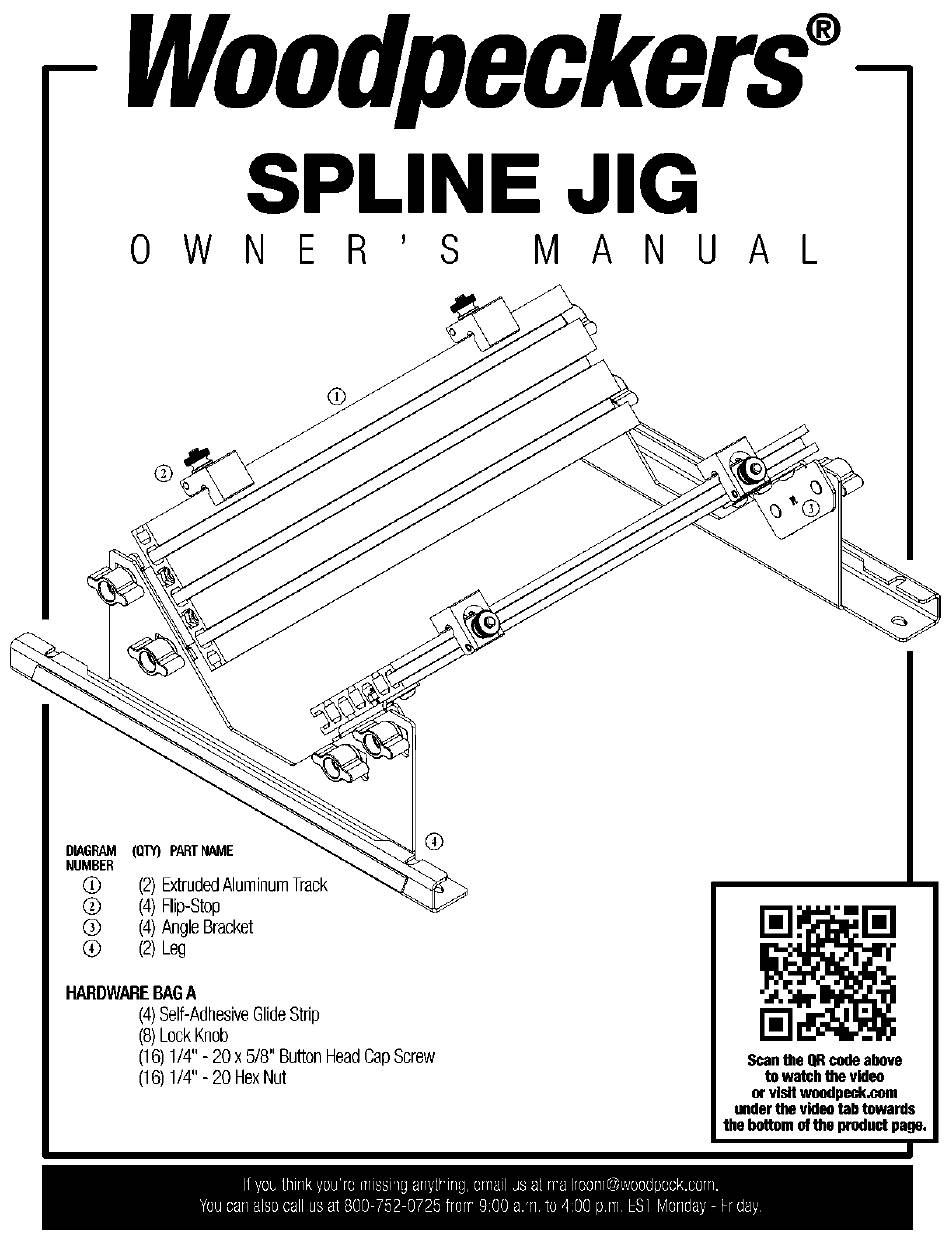

Woodpeckers SPLINE JIG Owner's Manual

oodpeckers
PLINE JIG
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
HARDWARE BAG A
(4) Self-Adhesive Glide Strip
(8) Lock Knob
(16) 1/4" - 20 x 5/8" Button Head Cap Screw
(16) 1/4"-20 Hex Nut
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
NUMBER
(Q TY ) PART NAME
1
(2) Extruded Aluminum Track
2
(4) Flip-Stop
3
(4) Angle Bracket
4 (2) Leg
WNER ' S MANUAL
