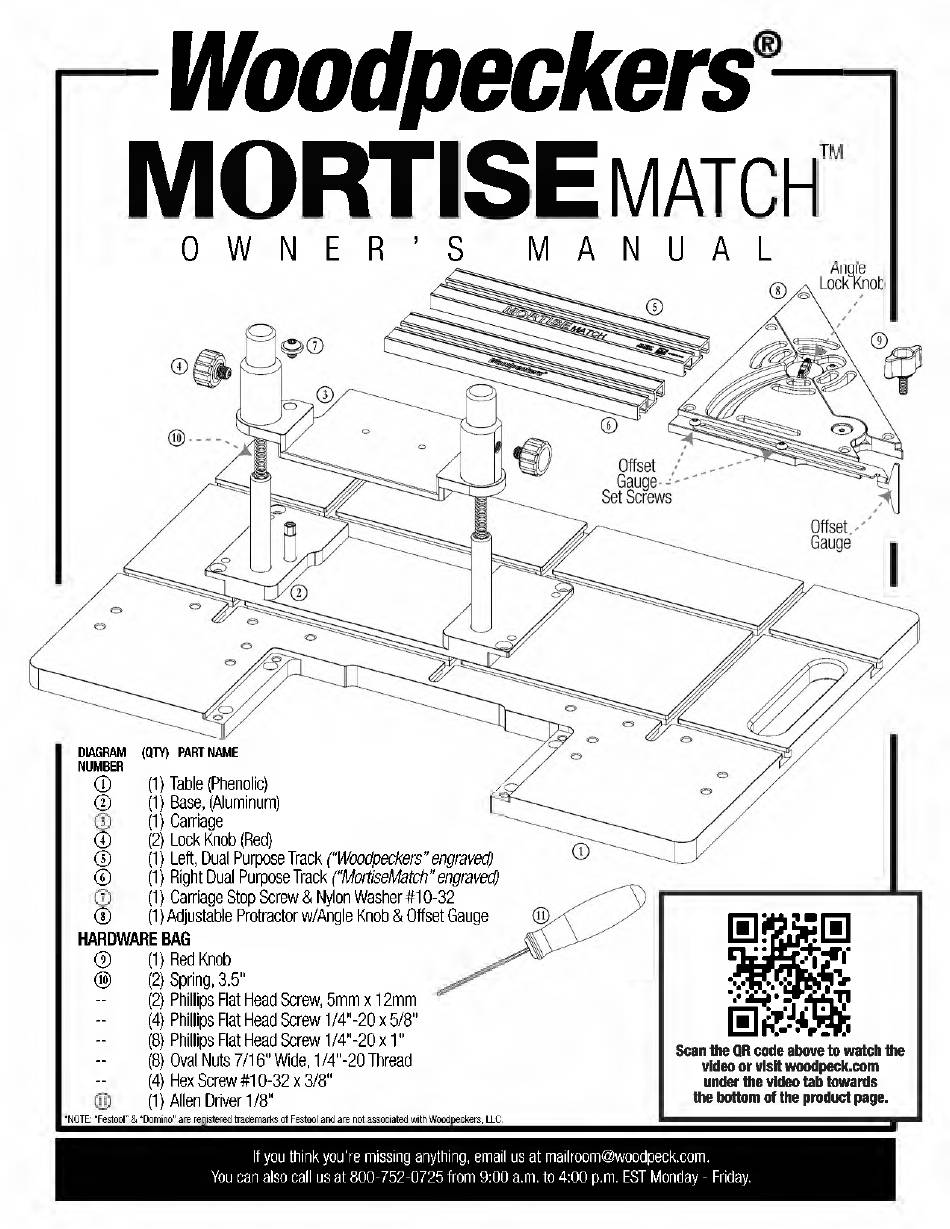

Woodpeckers MORTISE MATCH Owner's Manual

oodpecker s
O RT I SE
match
can the QR code above to watch the
video or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST onday - Friday.
IAGRAM
NUMBER
(Q TY) PART NAME
1 1) Table Phenolic)
2
1) Base, Aluminum)
3 1) Carriage
4 2) Lock Knob Red)
5 1) Left, Dual Purpose Track " Woodpeckers" engraved)
6 1) Right Dual Purpose Track " MortiseMatch " engraved)
7
1) Carriage Stop Screw & Nylon Washer # 10 -32
8 1) Adjustable Protractor w/Angle Knob & Offset Gauge
HAR W ARE BAG
9 1) Red Knob
10
2) Spring, 3.5"
—
2) Phillips Flat Head Screw, 5mm x 12 mm
—
4) Phillips Flat Head Screw 1/4"-20 x 5/8"
—
8) Phillips Flat Head Screw 1/4"-2 0 x 1 "
—
8) Oval Nuts 7/ 16 " Wide, 1 /4"-20 Thread
—
4) Hex Screw # 10 -3 2 x 3 /8"
11
1) Allen Driver 1/8"
WNER ' S MANUAL
* NOTE: " Festool " & " Domino" are registered trademarks of Festool and are not associated with Woodpeckers, LLC.
