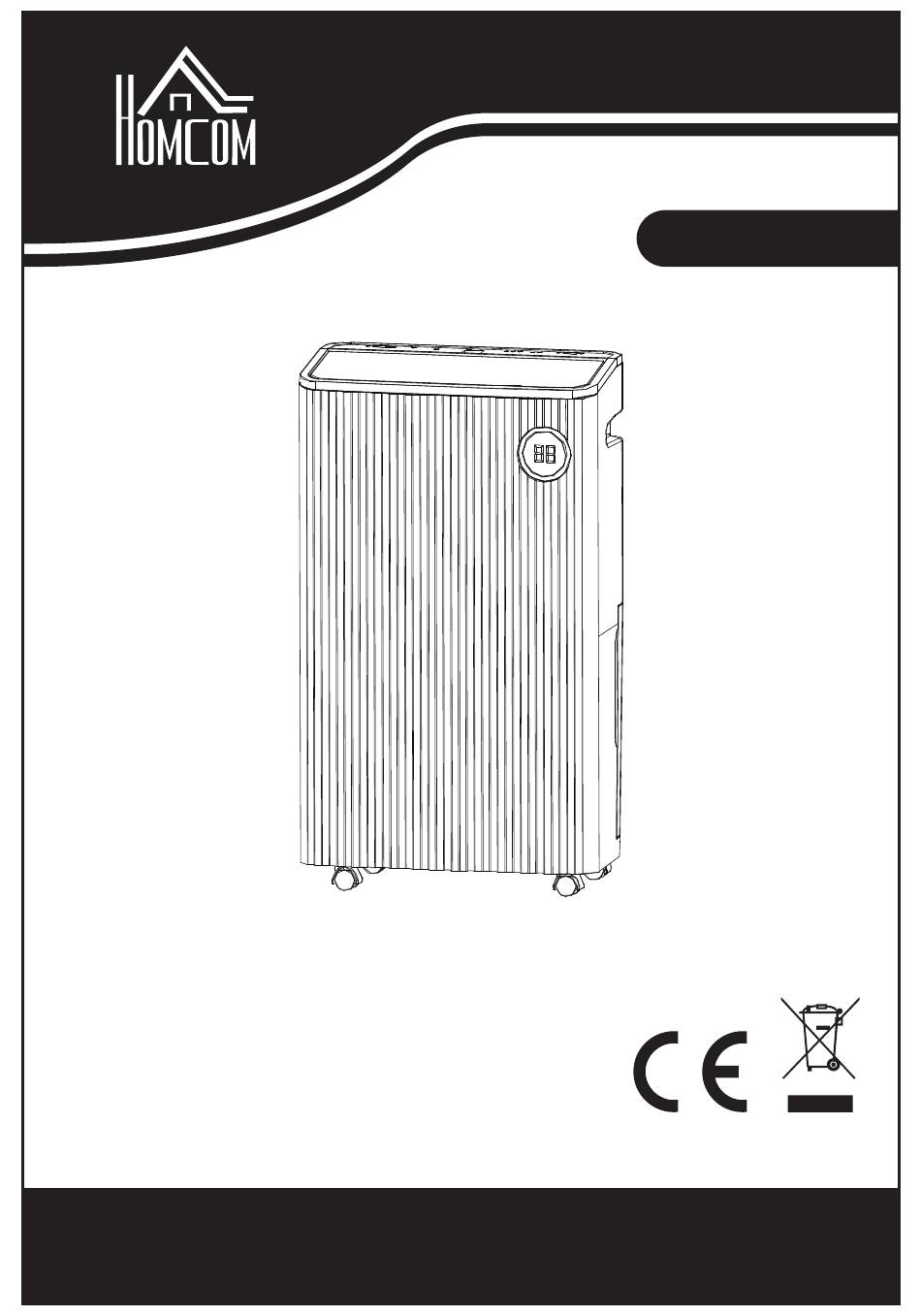

- Page 1 IN230500568V02 UK 821-024V70 Dehumidifier IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY INSTRUCTION MANUAL...
- Page 2 Precautions Parts names and functions Control panel operation Selecting functions properly Set air filter Continuous drainage Maintenance Specification Troubleshooting Thank you for choosing this dehumidifier. Please read this instruction manual carefully before installing this appliance. Keep this manual safe for future reference.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ! WARNING: To avoid the risk of electrical shock, fire or injury to persons, always make sure the appliance is unplugged before moving, servicing or cleaning. - Page 4 1°C, do not place the hose outside. f the temperature falls below o not use this appliance without the air filter. his appliance is for indoor household use. Do not use outdoors. hen in use, never leave this appliance unattended. Always turn the appliance off...
-
Page 5: Risk Of Fire
INFORMATION ON R290 REFRIGERANT GAS ● This appliance must be installed, ● The appliance must be stored in used and stored in an area greater such way to prevent mechanical than 4m². failure. ● This appliance contains 55g of ● Individuals who operate or work on R290 gas. - Page 6 Humidity Indicator light This is an indicator of the current air humidity Red: Humidity is more than 70% Green: Humidity is between 50-70%, Blue: Humidity is below Up: 30cm or more Installation For efficient use, ensure there is enough space around the appliance (use the picture on the right for reference).
-
Page 7: Control Panel Operation
Control panel operation 1. Power button Press this button to turn the appliance on and to enter standby. When the appliance turns on, the dehumidifier mode indicator and room humidity will show on display. 2. Mode button Press this button repeatedly to cycle through the different modes, which are: Normal dehumidifying, continuous dehumidifying or strong dehumidifying. - Page 8 Control panel operation 7. 'Air clean' button This appliance has a built-in negative anion and UVC. Press this button to enter the air circulation mode, which cleans the air only. Press the fan speed button to adjust the speed. Ionic and UCV function When the appliance is running, the ionic an UVC lamp works automatically.
- Page 9 To dehumidify a room for comfortable humidity To dehumidify a room or keep a ceiling and/or walls from dew consideration and getting moldy To dry wet clothes quickly To dry a carpet or rug To dehumidify a small space or to dry shoes To clean the air in the room Air purification...
- Page 10 1. The air inlet grille of the back cover contains a washable mesh pre-filter and active carbon filter. 2. The unit is also equipped with a HEPA filter for purification. Please remove the active carbon fitler from the back grille and replace with the HEPA filter. Make sure the water tank is set properly.
-
Page 11: Emptying The Water Tank
Emptying the water tank 1. Remove tank from the dehumidifier. 2. Hold the tank by the handle and carry it gently. 3. Tilt the tank to the direction as shown. Slowly empty the water out of the tank. 4. Place the tank back into the dehumidifier. After using the dehumidifier, water is collected in the tank. - Page 12 When the unit is not in use for long periods: 1.Unplug the unit, coil the power cord and hang it from the back of the unit as shown. 2. Empty the water tank, wipe it with a cloth and place it back to its position. 3.
- Page 13 Model No: 821-024V70 (FDD16 - 5291ZFUR5) Power Supply: 220V-240V~ 50Hz Dehumidity Capacity: 16L/ Day( 30°C /80 %) Rated Input Power: 350W Rated Input Current: 1.80A Water Tank Capacity: 5.5 L Dimensions: Height 600mm, Length 355mm, width 200mm Room Temperature: 5 °C-32 °C...
- Page 14 Malfunction Points to be checked Measures to be taken Check to see if washed clothes Try to expose the washed clothes are exposed to the unit's to the airflow. Washed airflow. clothes are not dried Check to see if the room Washed clothes are hard to dry in temperature is too low.
