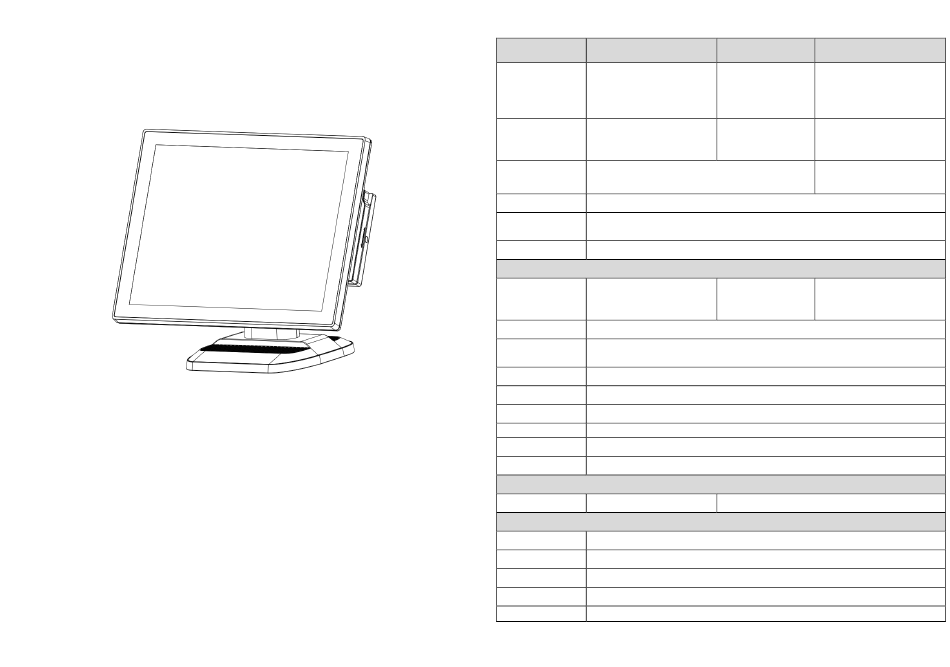

XT-1615 / 1715U / 1815
15-inch Mountable Touch POS
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.
Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
Power off the system and remove the power adapter while cleaning the system.
Before powering on the system, make sure all the peripherals are
firmly installed.
Specifications
Model Name
XT-1615
Intel® Celeron®
Processor
J6412
(Elkhart Lake)
2 x DDR4 SO-DIMM
System Memory
(3200MTs)
(Max up to 32GB)
1 x M.2 SSD
Storage
(PCIe 3.0 x 4 NVMe / SATA)
LCD Panel
15-inch TFT LCD, 1024 (W) RGB x 768 (H)
True-Flat Projected Capacitive Multi Touch
Touch Panel
Speaker
I/O Interface
1 x USB 3.0 Type A
USB
1 x USB 3.0 Type C (w/ QC)
5 x USB 2.0 Type A
LAN
1 x RJ45 10/100/1000Mbps Giga Ethernet
3 x COM (RJ45), w/ RI/5V/12V by BIOS
COM
1 x COM (DB9), w/ RI/5V/12V by Jumper (Option)
VGA
HDMI
Audio
Cash Drawer
1 x RJ11 port supports 2 cash drawer, w/ 12V/24V by jumper
DC Power Out
DC Power In
Power Management
Power Adapter
12V@5A, 60W Adapter
Mechanical & Environmental
Dust and Water
Tilt Adjustment
Dimension
378.31 (W) x 282.47 (H) x 45.7 (D) mm
Weight
Certification
XT-1715U
XT-1815
Intel® Core™
Intel® Core™
i3-1115G4
i5-7267U
i5-1135G7
(Kaby Lake)
(Tiger Lake)
2 x DDR4 SO-DIMM
2 x DDR4 SO-DIMM
(2133MTs)
(3200MTs)
(Max up to 32GB)
(Max up to 32GB)
1 x M.2 SSD
(PCIe4.0 x 4 NVMe)
True- Flat 5-wire Resistive Touch
1 x 2W High Quality Speaker
3 x USB 3.2 Type A
4 x USB 3.0 Type A
1 x USB 3.2 Type C (w/ DP)
3 x USB 2.0 Type A
3 x USB 2.0 Type A
1 x DB-15 VGA Port (Option)
1 x HDMI Port
1 x Line-out and 1 x MIC-in
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4pin type
12V@7.5A, 90W Adapter
IP65 on Front Bezel
0° ~ 90°
3.75 kg
CE/FCC/LVD
