GLP iQ.Tool Quick Start Manual

General information

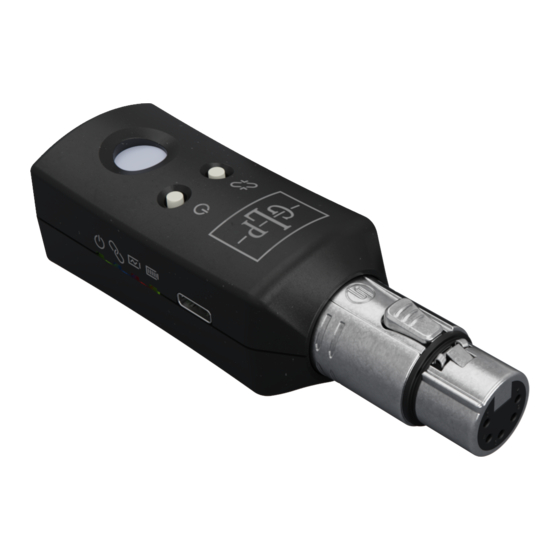

The GLP iQ.Tool allows you to manage GLP lighting fixtures from a mobile device using the GLP
iQ.Service app. It is available in two versions: the iQ.Tool and iQ.Tool Pro. The Pro version includes a
spectral light sensor.
Use the device only as described in the operating instructions. Failure to observe these
instructions may impair the degree of protection provided by the measuring device.
The iQ.Tool is rated IP 20 and is for indoor use only. Do not allow it to become wet.
A
B
C
D
Technical data
iQ.Tool
Input voltage: 5 VDC
Wireless protocols: Bluetooth Low Energy v.4.2, 2.4 GHz
Battery type: LiPo 700 mAh
Battery operation time: up to24h
Battery standby time: Up to 1 week
Operating environment: Indoor use only
IP Rating: IP 20
Size: 30x30x104mm
Weight: 73g
Included items
GLP iQ.Tool device
USB-C to USB-C cable
Quick-start manual
Protective case with belt loop
Waste disposal
As a consumer, you are required to return old devices to the manufacturer or to a designated collection point for the
disposal of electrical and electronic equipment in order to ensure environmentally-friendly disposal. Observe the
current regulations in your location. This product and its packaging have been manufactured using high-quality
materials and components that can be recycled and reused. This reduces waste and protects the environment.
Dispose of the packaging in an environmentally-friendly manner at a designated collection point.
This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive
(WEEE). It contains a non-removable rechargeable battery. Do not dispose of the product in ordinary
household waste.
Warning! Incorrect disposal of batteries creates a hazard to the environment and to health!
Batteries and rechargeable batteries must never be disposed of with household waste. They contain
pollutants such as heavy metals which can be harmful to the environment and human health if disposed
of improperly. Valuable raw materials such as iron, zinc, manganese or nickel can be recovered from
battery waste. As a consumer, you are legally obliged to hand in used batteries and rechargeable batteries for
environmentally-friendly disposal at retailers or appropriate collection points in accordance with national or local
regulations. The return service is free of charge. You can obtain addresses of suitable collection points from your city
council or local authority.
Do not litter the environment by leaving batteries (or electrical and electronic devices that contain them) lying
around carelessly. The separate collection and recycling of batteries and rechargeable batteries makes an important
contribution to relieving the impact on the environment and avoiding health risks.
E
F
F G
F H
F
I
GLP iQ.Tool / iQ.Tool Pro
Quick Start Guide
A – Light sensor/spectral sensor (iQ.Tool
Pro only)
B – Power On/Off switch
C – Linking/Unlinking switch
D – XLR connector (female)
E – Status LED (green) power On / Off
F – Status LED (blue) link status
G – Status LED (red) battery charging
H – Status LED (green) battery fully
charged
I – USB-C socket
iQ.Tool Pro
Spectral sensor
Input voltage: 5 VDC
Wireless protocols: Bluetooth Low Energy n.4.2, 2.4 GHz
Battery type: LiPo 700 mAh
Battery operation time: up to24h
Battery standby time: Up to 1 week
Operating environment: Indoor use only
IP Rating: IP 20
Size: 30x30x104mm
Weight: 73g
Included items
GLP iQ.Tool device
USB-C to USB-C cable
Quick-start manual
Protective case with belt loop
Rev. 20241010-01
