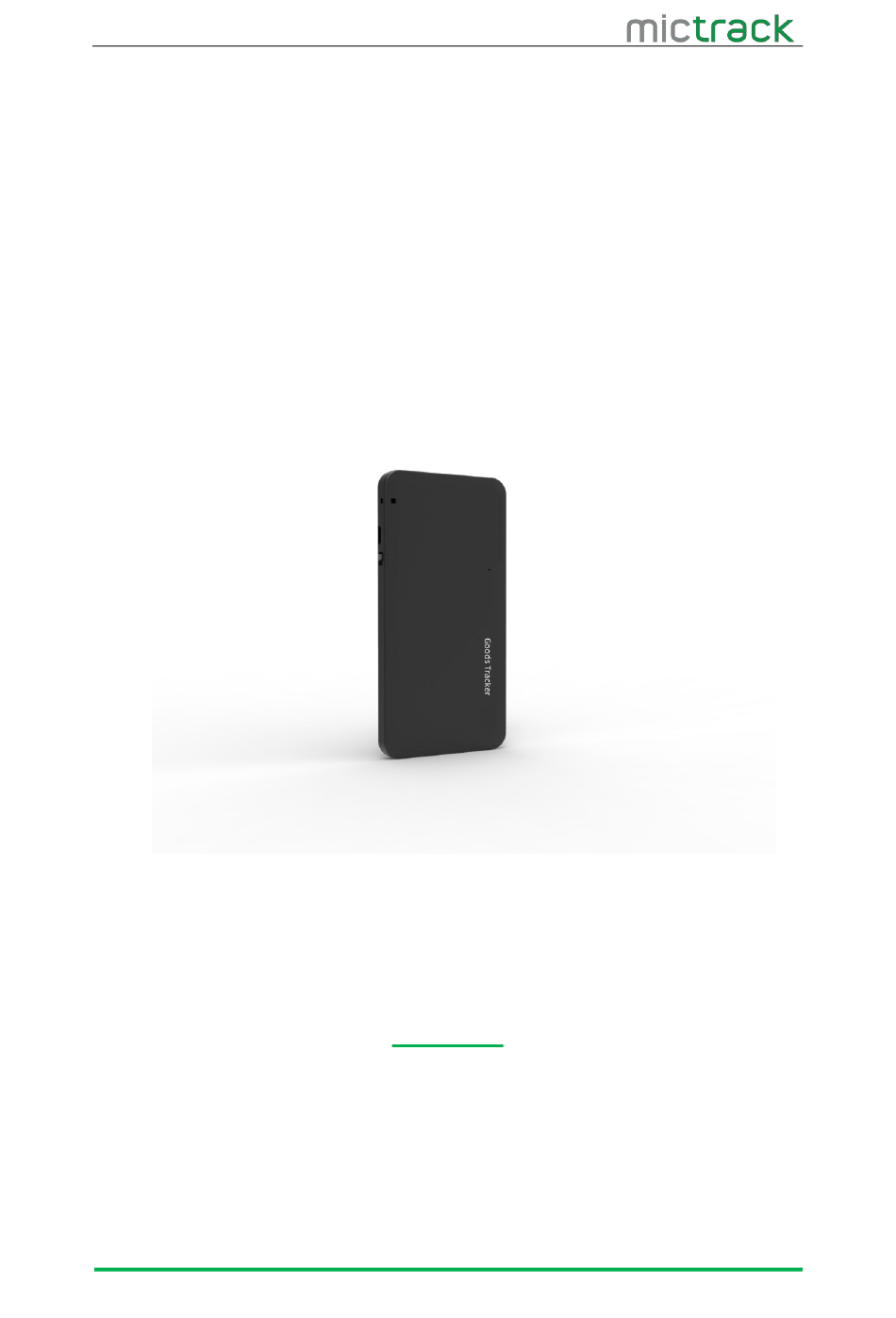

MX100 User Manual V1.0

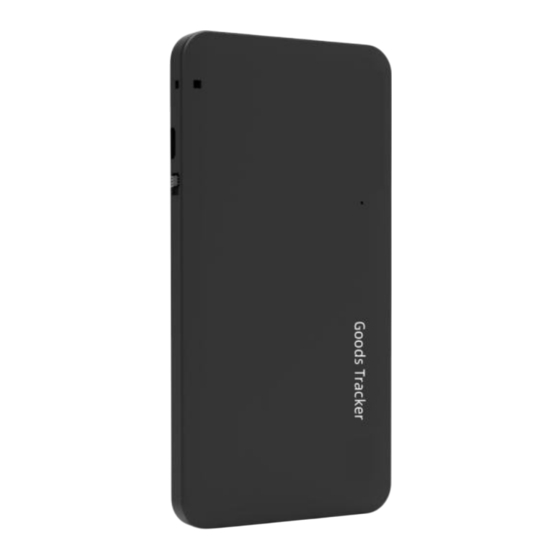

MX100 4G Asset GPS Tracker
User Manual V1.0
Preface
Thanks for purchasing Mictrack Asset GPS tracker MX100. This manual shows how to
easily program and setup the tracker for the best results. Please read this manual carefully
before using this product, to avoid delays or confusion with its operation. Please note that
specifications and instructions are subject to change without notice to facilitate product
improvement. Updates and changes will be integrated into the latest release. The
manufacturer assumes no responsibility for any errors or omissions in outdated documents.
http://www.mictrack.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mictrack MX100
Summary of Contents for Mictrack MX100
- Page 1 User Manual V1.0 Preface Thanks for purchasing Mictrack Asset GPS tracker MX100. This manual shows how to easily program and setup the tracker for the best results. Please read this manual carefully before using this product, to avoid delays or confusion with its operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement.
-
Page 2: Table Of Contents
MX100 User Manual V1.0 Contents 1. Overview ........................1 2. Features ........................1 3. Applications .......................1 4. Specifications ......................2 5. MX100 Interface .......................2 6. In the box .........................2 6.1 Standard Accessories ................... 2 7. Installation .........................3 7.1 SIM Card installation ..................3 7.2 LED Indications ..................... -
Page 3: Overview
MX100 User Manual V1.0 1. Overview The MX100 is a 4G tracking device specifically designed for monitoring temperature and tracking in cold chain, food, and fruit storage and transportation. With its ultra-thin design of just 8mm, it can be easily placed with goods that require monitoring. -
Page 4: Specifications
3-Axis Accelerometer, Light Sensor, Temperature and humidity sensor Power/Status SIM Card interface Internal Nano 4FF SIM Protocol TCP, SMS Battery life 1 year (one report per day) 5. MX100 Interface 6. In the box 6.1 Standard Accessories 1* MX100 4G GPS Tracker https://www.mictrack.com... -
Page 5: Installation
MX100 User Manual V1.0 1* USB Charging Cable 1* USB Config Cable (optional) 7. Installation 7.1 SIM Card installation Get ready a Nano SIM Card with 15MB data a month. Remove the back cover Insert the SIM card into the SIM card slot. -
Page 6: Report Interval Time
MX100 User Manual V1.0 8.3 Report interval time SMS Command format:TIMEGAP=X,Y For example:TIMEGAP,0,3600 Reply: +TIMEGAP:report,3600 Note: X=0 is reporting cycle and X=1 is sampling period. Y is the report interval time, range [10, 3600] seconds. 8.4 Set Light Sensor SMS Command format: LIGHT=X,Y,Z... -
Page 7: Working Mode
MX100 User Manual V1.0 SMS Command format:HUMIRANGE=E,F For example:HUMIRANGE=50,10 Reply: +HUMIRANGE:50,10 Note: E is Maximum humidity and F is the Minimum humidity and the humidity. 8.7 Working Mode 8.7.1 Tracking mode + Trigger mode When the AT command `AT+WORKMODE=2` is used, the device enters "Tracking Mode + Trigger Mode."... -
Page 8: Sleep Mode
MX100 User Manual V1.0 8.9 Sleep Mode Sleep mode is only valid when using Tracking Mode + Trigger Mode or Conditional Trigger Mode. The AT command is: `AT+SLEEPMODE=<mode> -<mode>: - 0: The network module consumes low power (sleeps after the device report is complete). - Page 9 MX100 User Manual V1.0 (End of this document) Shenzhen Mictrack Electronics Co., Ltd. Add: 706, Union Building, Donghuan 1st Road, Longhua District, Shenzhen, China 518109 Tel: +86-755-28198746 Web: www.mictrack.com Email: info@mictrack.com https://www.mictrack.com...
