Communication Ports
The RUGGEDCOM RS940G can be equipped with various types of communication
ports to enhance its abilities and performance. To determine which ports are
equipped on the device, refer to the factory data file available through RUGGEDCOM
RS940G. For more information on how to access the factory data file, refer to the
"RUGGEDCOM RS940G Configuration Manual" for the RUGGEDCOM RS940G.

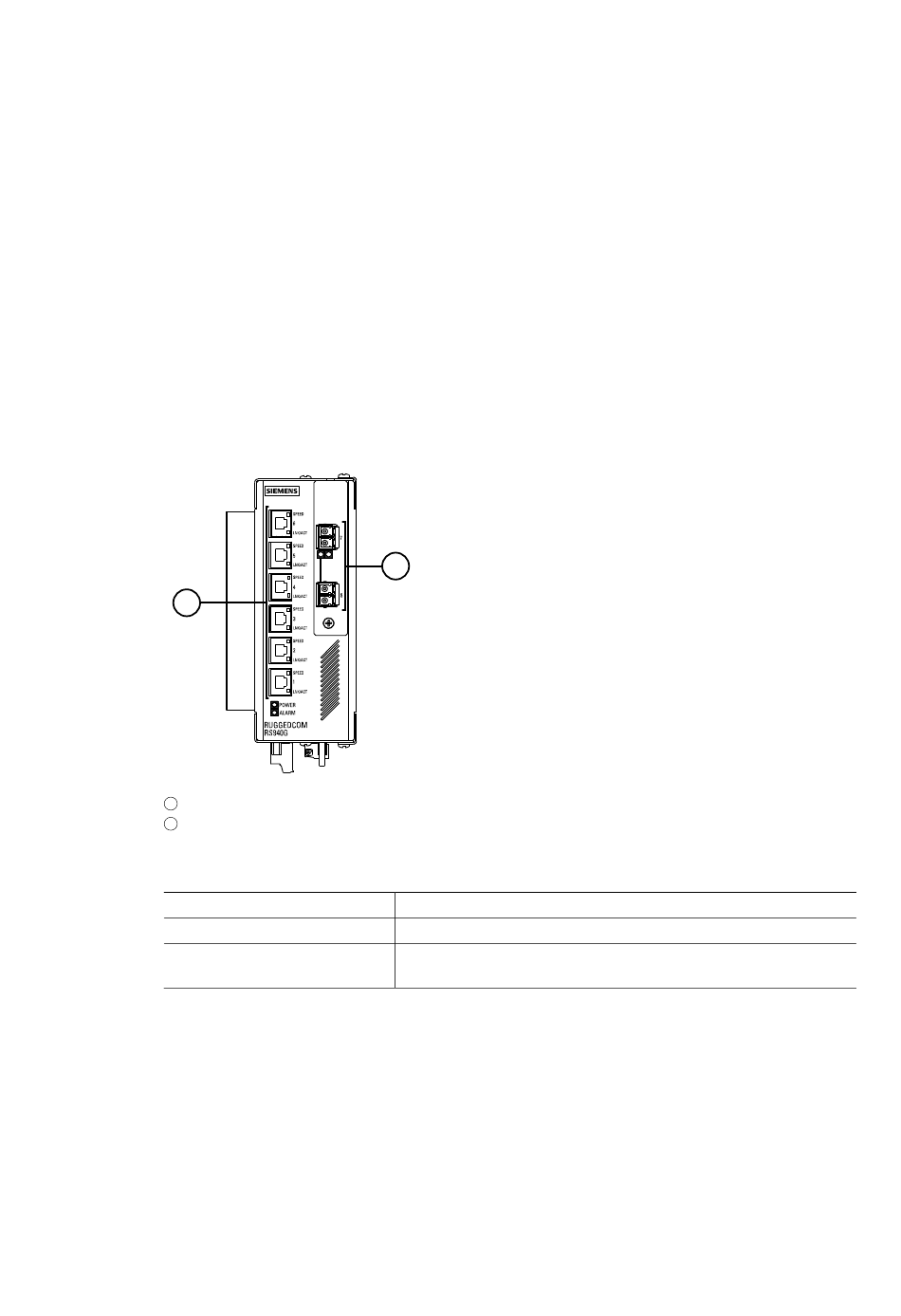

Each communication port type has a specific place in the RUGGEDCOM RS940G
chassis.
1
1
2
Figure 4.1
4.1 Copper Ethernet Ports
The RUGGEDCOM RS940G supports several 10/100/1000Base-TX Ethernet ports
that allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP)
cables with RJ45 male connectors. The RJ45 connectors are directly connected to
the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP)
cables.
RUGGEDCOM RS940G
Equipment Manual, 10/2023, C79000-G8976-1036-09
Ports 1 to 6
Ports 7 to 8
Port Assignment
Port
1 to 6
7 to 8
2
Copper Gigabit Ethernet Ports (10/100/1000Base-TX)
Fixed, SFP or GBIC Gigabit Ethernet Ports (1000Base-SX or
1000Base-LX)
Type
4
