TP-Link Omada MC420L Manual

Expand Your Ethernet Network
10G SFP+ Media Converter
© 2025 TP-Link 7100000874 REV2.0.1
Package Contents: Media Converter, Power Adapter, User Guide

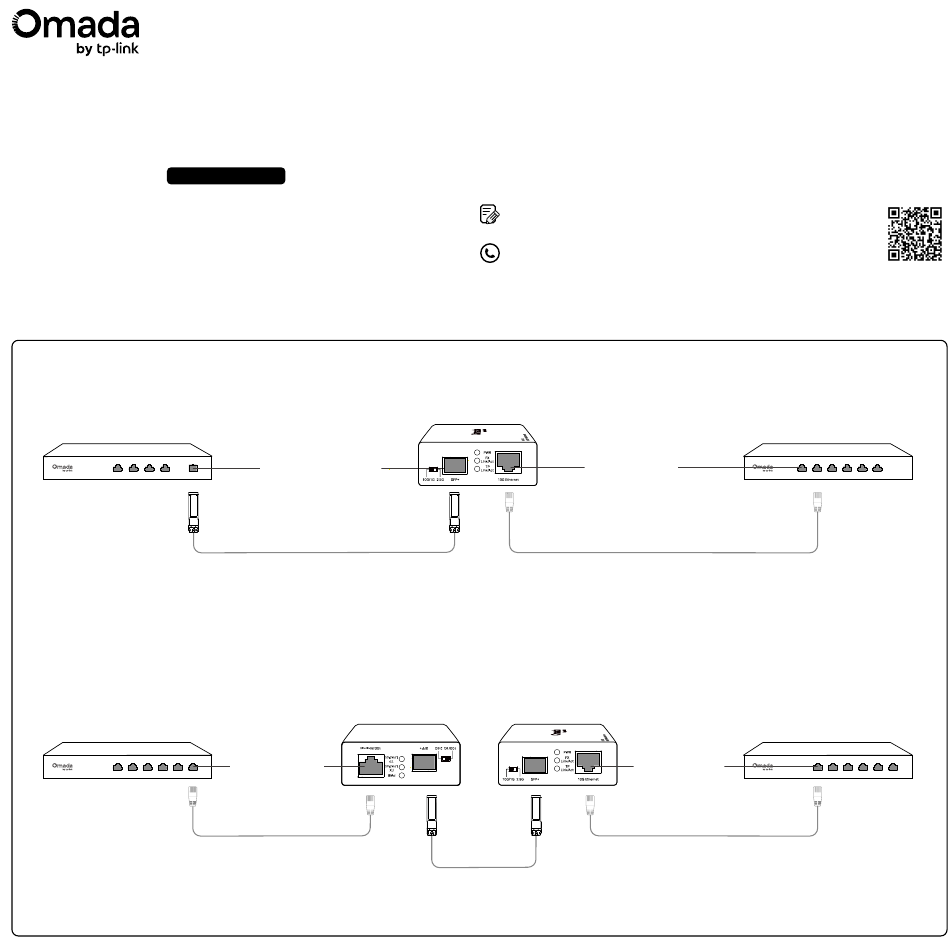

Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet Device
with Optical Interfaces
Note:
1. Using an Omada SFP+ module on the MC420L is recommended, as modules from other vendors may be incompatible.
2. MC420L features a DIP switch for mode selection. The 10G/1G Mode is enabled by default (switch toggled left). To activate the 2.5G Mode, toggle the switch to the right.
3. When using the 1G SFP module, you might have to manually set the edge device connected to the Ethernet port to a rate of 1 Gbps.
Scenario 2: Connect Devices without Optical Interfaces
Ethernet Device
without Optical Interfaces
Note:
Two converters with a pair of SFP/SFP+ modules can work cooperatively.
MC420L
10GBASE-SR Interface
SFP/SFP+ Module SFP/SFP+ Module
Fiber Cable
Media Converter
Ethernet Interface
Twisted-Pair Cable
To ask questions, find answers, and communicate with TP-Link
users or engineers, please join the TP-Link Community.
For technical support and other information, please visit
https://support.omadanetworks.com/, or simply scan the QR code.
Media Converter
Ethernet Interface
Media Converter
SFP/SFP+ Module
Fiber Cable
Ethernet Device
without Optical Interfaces
Twisted-Pair Cable
Ethernet Device
without Optical Interfaces
Ethernet Interface
Twisted-Pair Cable
