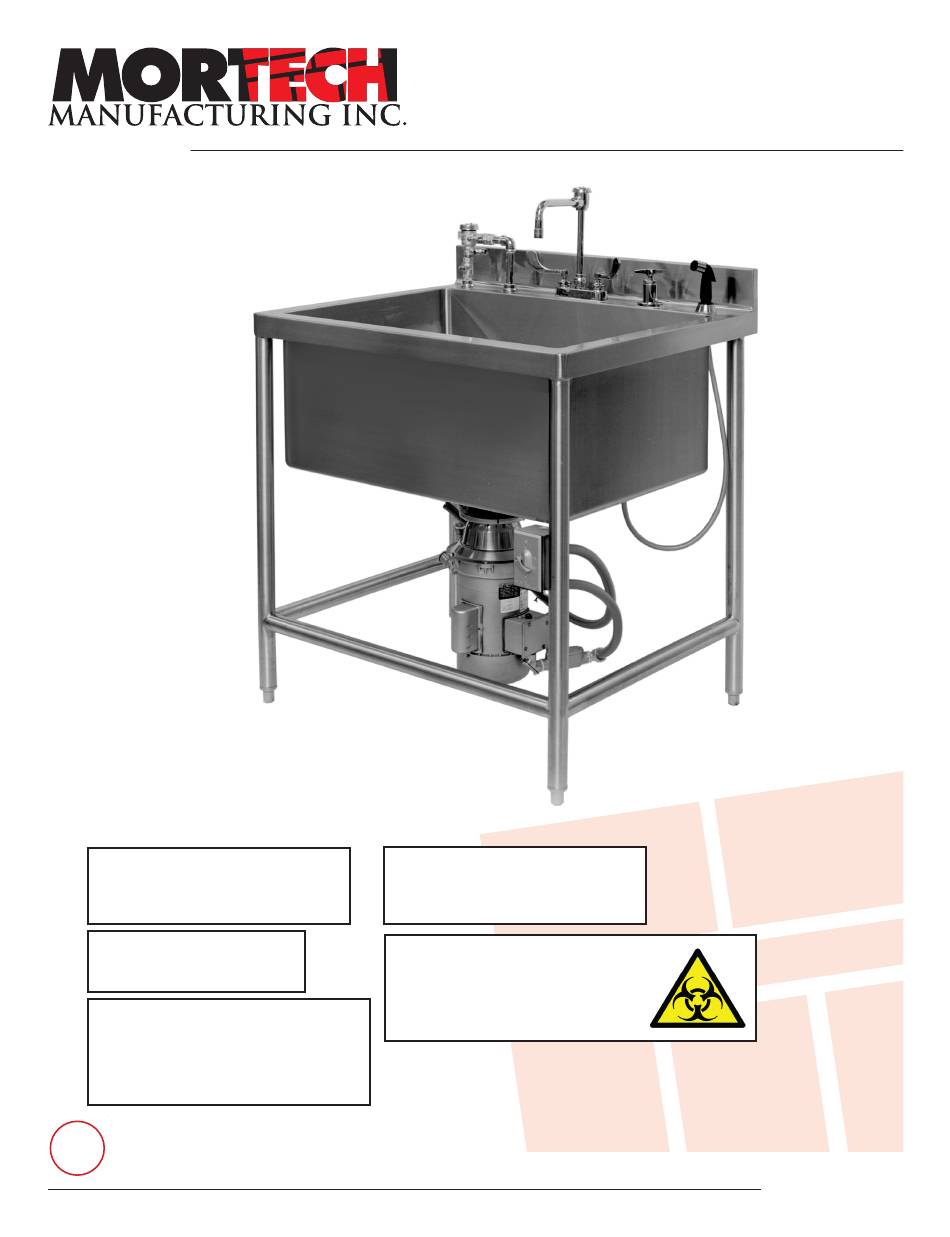

MODEL SS110
WASH STATION
CAUTION
• Inspect unit and all components
for any loosening that may have
occurred during shipping •
ATTENTION
Review entire manual before
starting assembly
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
™
Technical Users' Manual
Installation and Operating Instructions
CAUTION
DO NOT USE CLEANERS
•
CONTAINING CHLORINE WHEN
CLEANING STAINLESS STEEL
WARNING
Biohazard Label is place on the
equipment signifying the potentially
infectiousness due to the samples
or reagents
•
JUNE 2014
ISO Doc. #OMSS110 (REV A)
Advertisement
Table of Contents
Related Manuals for MORTECH SS110
Summary of Contents for MORTECH SS110
- Page 1 ™ Technical Users’ Manual ISO 9001:2008 CERTIFIED COMPANY Installation and Operating Instructions MODEL SS110 WASH STATION CAUTION CAUTION • Inspect unit and all components DO NOT USE CLEANERS • for any loosening that may have CONTAINING CHLORINE WHEN occurred during shipping •...
-
Page 2: Safety Information
• Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech Mfg. Inc. If unit has an issue contact customer relations. manufactured items are carried out exclusively by skilled INSTRUCTION FOR HANDLING professionals who have the respective training. -
Page 3: Installation
SS110 Wash Station Installation PRESSURE VACUUM HOT/COLD MIXING FAUCET BREAKER W/ WRIST BLADE HANDLES AND VACUUM BREAKER SPRAY HOSE ASSEMBLY (4) ADJUSTABLE LEVELING FEET 1/2 HP COMMERCIAL DISPOSER DISPOSER SWITCH STANDARD FEATURES • Heavy-duty Commercial Disposal, 1/2 hp, with switch •... - Page 4 DECIMALS .XX FRACTIONS 1/16" IN PART TO ANYONE WITHOUT WRITTEN TITLE working with the unit. point connection for hot and cold water. A typical flex line can AUTHORIZATION FROM MORTECH MFG. DECIMALS .XXX .005 be used for connection. APPROVALS DATE MATERNIDID...
-
Page 5: Parts Listing
ANGLES NOT TO BE REPRODUCED, USED, OR OTHERWISE DISCLOSED IN WHOLE OR PROJECT DECIMALS .XX FRACTIONS 1/16" IN PART TO ANYONE WITHOUT WRITTEN AUTHORIZATION FROM MORTECH MFG. DECIMALS .XXX .005 APPROVALS DATE DO NOT SCALE DRAWING DRAWN BY ... -
Page 6: Component Data
MODEL # 054X w/WRIST BLADES Model #B-0225-LN 4” NIPPLE T&S VACUUM BREAKER AND SWING NOZZLE Model #B-0408-03 T&S Model #B-0413 T&S DECK MOUNT FAUCET w/WRIST BLADES Model #B-0225-LN Figure-A Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com... - Page 7 T & S BRASS AND BRONZE WORKS, INC. T & S BRASS AND BRONZE WORKS, INC. MODEL # 002858-40 Spray valve assembly MODEL # 013E 72” hose Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 8 Tulare, California 93274 800-421-6162 Recommended Service: 800-832-8236 FAX Test periodically as required by local jurisdictional authorities. Replace internal components every five years. Mailing Address: P.O.Box 60 Tulare, California 93275 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 9: Vacuum Breaker
Fischer Vacuum Breaker Testing 3. u rocedure for Pill esisTanT nscrew the bonnet by turning counterclockwise 4. l acuum reaker iFt retainer and check assembly From valve body o assist “ ” with removal a small Flow can be applied by cracking the inlet or both oF the Following tests the test kit must... - Page 10 250-046R Replacement float-off dust covers (package of 2). normal faucet operation. GUARDIAN EQUIPMENT 660 North Union Street Chicago, IL 60610 Phone 312 733 2626 Fax 312 733 4684 info@gesafety.com www.gesafety.com Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 11: Maintenance Instructions
SS110 Wash Station Maintenance MAINTENANCE INSTRUCTIONS one that does not contain chlorine, such as acetone, methyl alcohol, and mineral spirits. The unit requires regular maintenance and follow the manufactures directions. EFFECTIVE CLEANING METHODS DISINFECTING AND CLEANING Commercial Cleaners - Many commercial cleaners... -
Page 12: Maintenance Record
Maintenance record SS110 Wash Station MAINTENANCE RECORD Date JUNE 2014 MFGISO DOC. #OMSS110 (REV. A) -
Page 13: Training Record
SS34 Single Scrub Station Training record TRAINING RECORD Date MAY 2012 MFGISO DOC. #OMSS34 (REV. A) -
Page 14: Warranty
Information in this Manual is subject to change without notice Labor is not warranted. Items not manufactured by Mortech and does not represent a commitment on the part of Mortech Manufacturing. Inc. will receive the manufacturer’s warranty. Manufacturing. Inc. Mortech Manufacturing. Inc. assumes no responsibility for any inaccuracies that may be contained in this Manual.
