RV UNDERBODY
WITH DOOR ASSIST/8PC
INSTALLATION GUIDE
MAIN COMPONENTS

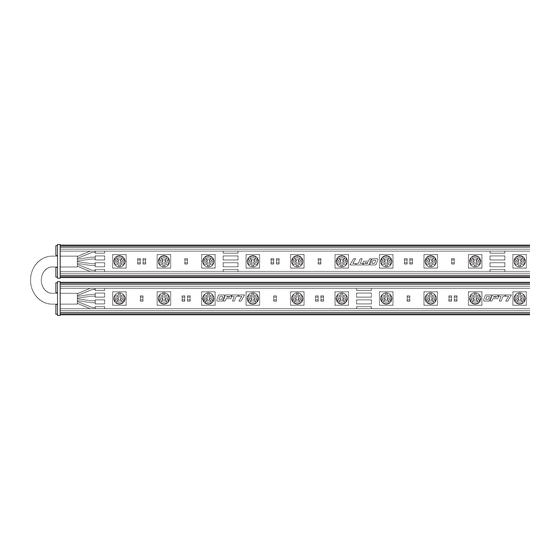

RIGID LIGHT BARS 18''×4 & 24''×4
TM
AURA CONTROL BOX
MOUNTING KIT
HARDWIRE POWER HARNESS
INCLUDES -
WIRE MOUNTS, SELF-TAPPING SCREWS, BOOSTER, VELCRO, ZIP TIES
TM
ADHESIVE BOOSTER
HAND
HELD REMOTE
Advertisement
Related Manuals for OPT7 AURA RV UNDERBODY
Summary of Contents for OPT7 AURA RV UNDERBODY
- Page 1 RV UNDERBODY WITH DOOR ASSIST/8PC INSTALLATION GUIDE MAIN COMPONENTS RIGID LIGHT BARS 18''×4 & 24''×4 HARDWIRE POWER HARNESS AURA CONTROL BOX ADHESIVE BOOSTER HAND INCLUDES - MOUNTING KIT HELD REMOTE WIRE MOUNTS, SELF-TAPPING SCREWS, BOOSTER, VELCRO, ZIP TIES...
- Page 2 INSTALLATION STEP 1 Decide where to locate the control box and ensure wiring has enough length for light bars to be installed in desired location. IMPORTANT: The control box must be installed inside the vehicle as it is not waterproof. Avoid installation areas of the engine bay + heated surfaces.
- Page 3 INSTALLATION STEP 2 Secure Control box in desired location with Velcro or zipties. * CONTROL BOX NOT WATERPROOF Ensure the control box is safely and securely hidden from exposing elements of moisture. STEP 3 Mount brackets to secure the light bars first. Secure the light bars using the zip ties to tie all the wiring away from the moving components.
- Page 4 Please scan to see a detail instruction on Door Assist Sync or go to https://wintis.ladesk.com/549690-AURA-Door-AssistAUX-Installation-Gui DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
