INSTALLATION INSTRUCTIONS FOR PART 95-7867
APPLICATIONS
Acura RSX
2002-2006
95-7867
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate
A
TOOLS REQUIRED:
• Phillips Screwdriver • Panel Removal Tool
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2007 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 95-7867
Summary of Contents for Metra Electronics 95-7867

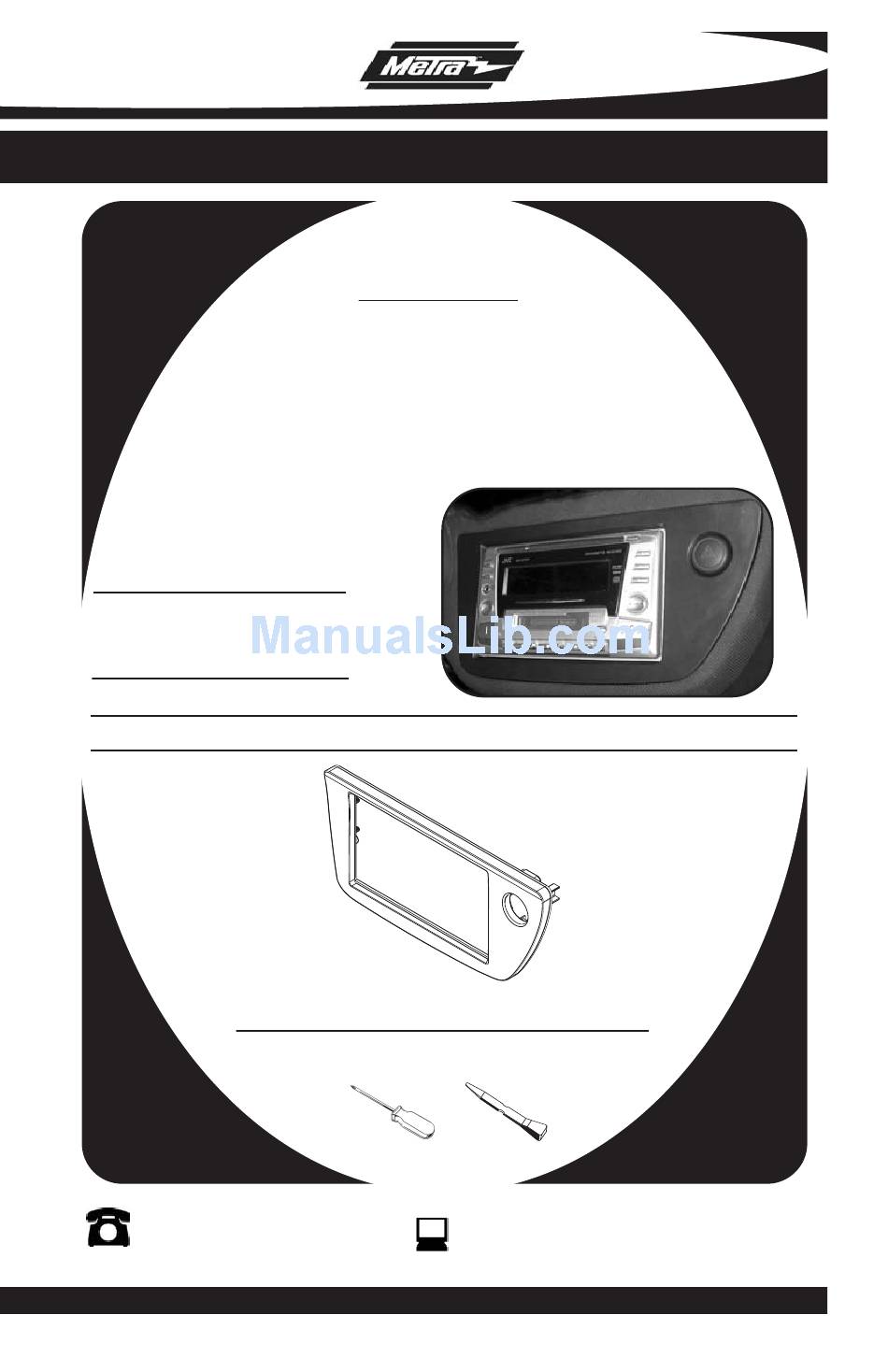

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7867 APPLICATIONS Acura RSX 2002-2006 95-7867 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Double DIN Trim Plate TOOLS REQUIRED: • Phillips Screwdriver • Panel Removal Tool 1-800-221-0932 www.metraonline.com...
- Page 2 Final Assembly ......... . 3 *Note: Refer also to the instructions included with the aftermarket radio. 95-7867...
-
Page 3: Acura Rsx 2002-2006
(Retain the switch and screws to be reinstalled into the double DIN trim plate during kit assembly) (“D” in Figure C) Continue to kit assembly. 95-7867 DASH DISASSEMBL Y "C" "C" "C" "C" "D"... -
Page 4: Double Din Radio Provision
Slide the Double DIN radio or stacked ISO mount units into the bracket/radio housing assembly and secure to the assembly using the screws supplied with the Double DIN head radio or stacked ISO mount units. (Figure C) Continue to final assembly. 95-7867 KIT ASSEMBL Y... -
Page 5: Final Assembly
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-7867 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together... - Page 6 95-7867 NOTES...
- Page 7 95-7867 NOTES...
- Page 8 95-7867 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 11/02/07 © COPYRIGHT 2007 METRA ELECTRONICS CORPORATION INST95-7867...
