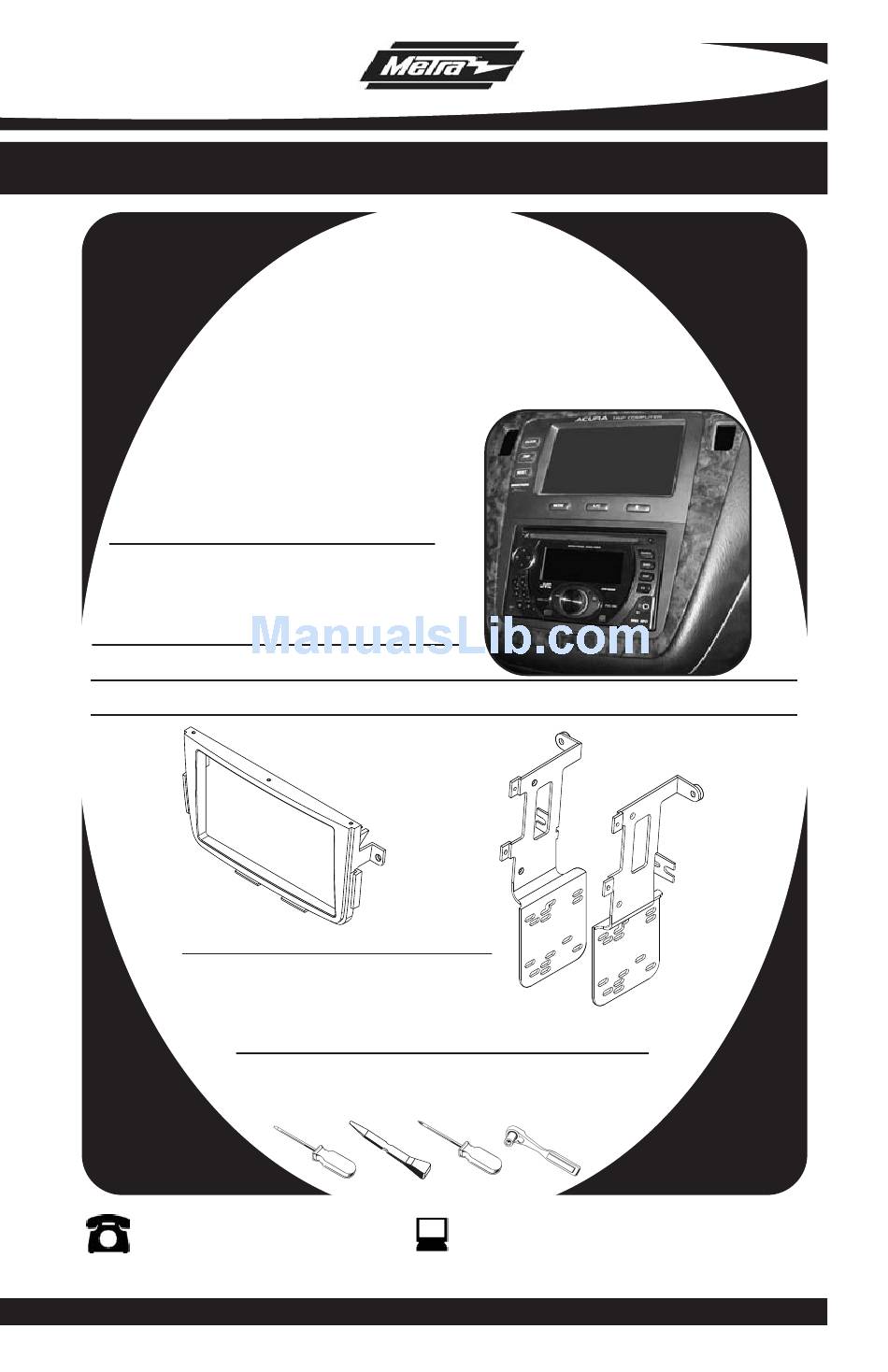

INSTALLATION INSTRUCTIONS FOR PART 95-7866B
ACURA MDX 2001-2006
95-7866B
KIT FEATURES
• Double DIN Head Unit Provision
• ISO Stacked Head Unit Provision
• Painted Matte Black to Match Factory Dash
KIT COMPONENTS
A) Double DIN Radio Housing • B) DDIN Brackets (To hold Display above radio)
A
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• 70-1721 Honda harness - 1998-up
• 40-HD10 -Honda antenna adapter- 2005-up
